Lift Support Point

  1. Place the lift blocks under the support points as shown in the illustration.
  2. Raise the hoist a few inches and rock the vehicle to be sure it is firmly supported.
  3. Raise the hoist to full height to inspect the lift points for secure support.

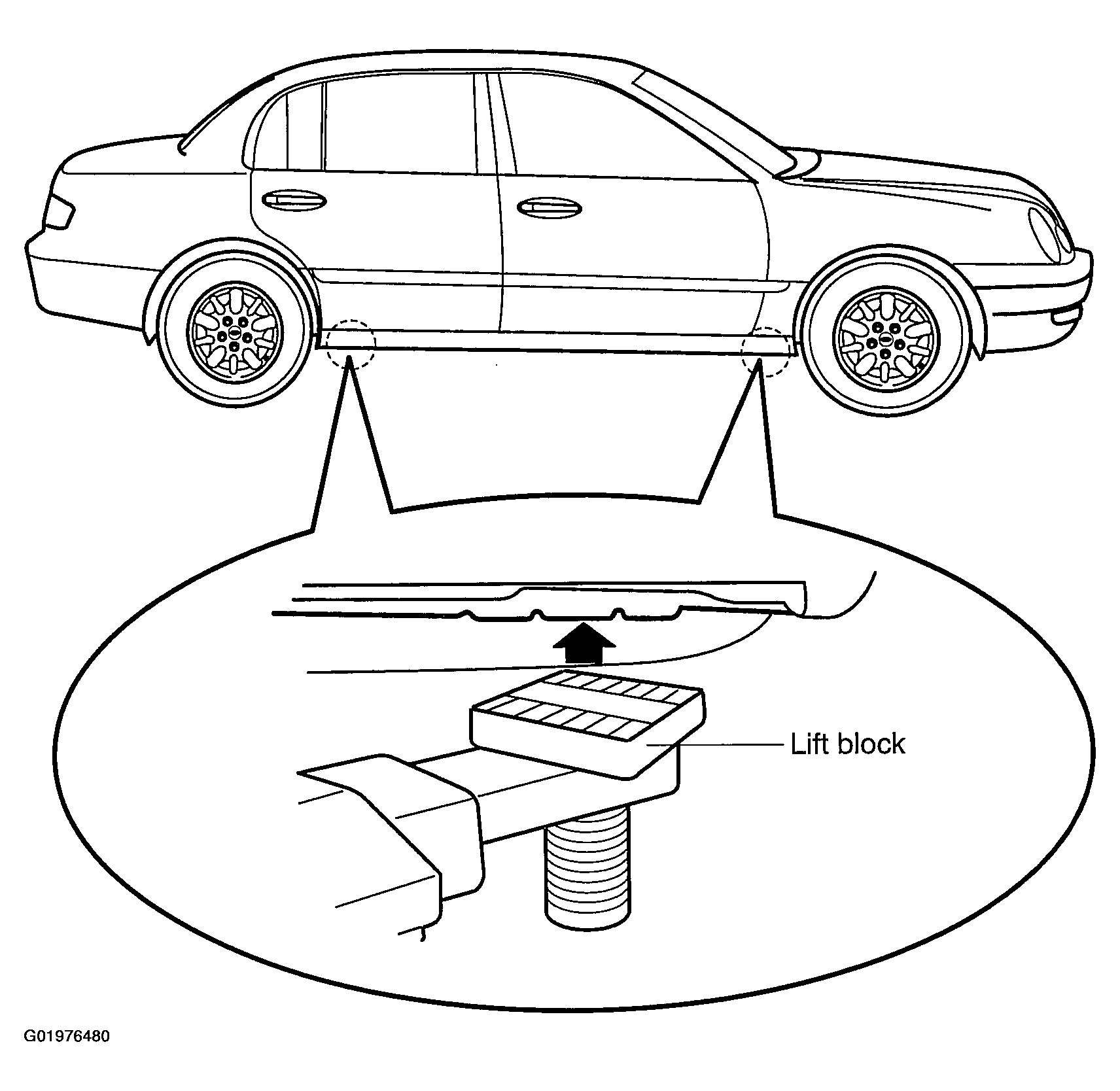

    Fig 1: Supporting & Lifting A Vehicle
    G01976480Courtesy of KIA MOTORS AMERICA, INC.
