Special Service Tools
SPECIAL SERVICE TOOLS

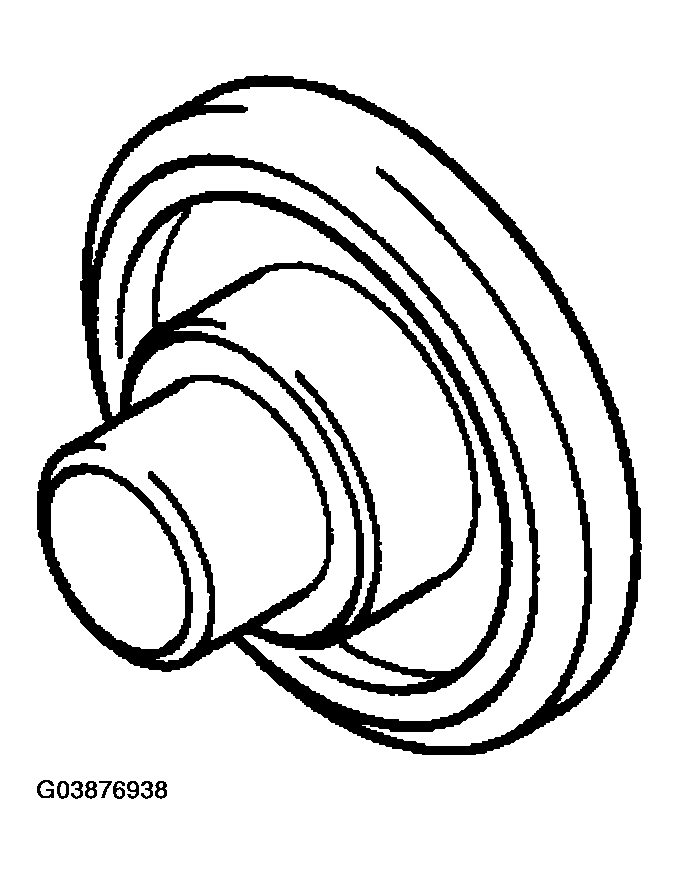

| Tool (Number and Name) | Illustration | Use |
|---|---|---|
| 09453-24000 Snap ring compressor |
Fig 1 | Removal and installation of the under-drive clutch snap ring. |
| 09452-21401 Guide pin |
Fig 2 | Installation of the oil pump and transfer drive gear. (use with 09452-21301) |
| 09453-33100 Dial gauge extension |
Fig 3 | Measurement of the low and reverse and second brake end play. |
| 09431-39000 Oil seal installer |
Fig 4 | Installation of the drive shaft oil seal. |
| 09432-33200 Remover plate |
Fig 5 | Removal of the transfer shaft bearing. |
| 09432-33800 Bearing installer |
Fig 6 |
|
| 09433-21000 Remover plate |
Fig 7 |
|
| 09500-11000 Bar |
Fig 8 | Installation of the differential outlace bearing. (use with 09532-11500) |
| 09455-33200 Bearing installer |
Fig 9 | Installation of the differential ball bearing and output shaft taper roller bearing. |
| 09453-21100 Snap ring compressor |
Fig 10 | Removal and installation of the low and reverse brake snap ring. (use with 09453-21000) |

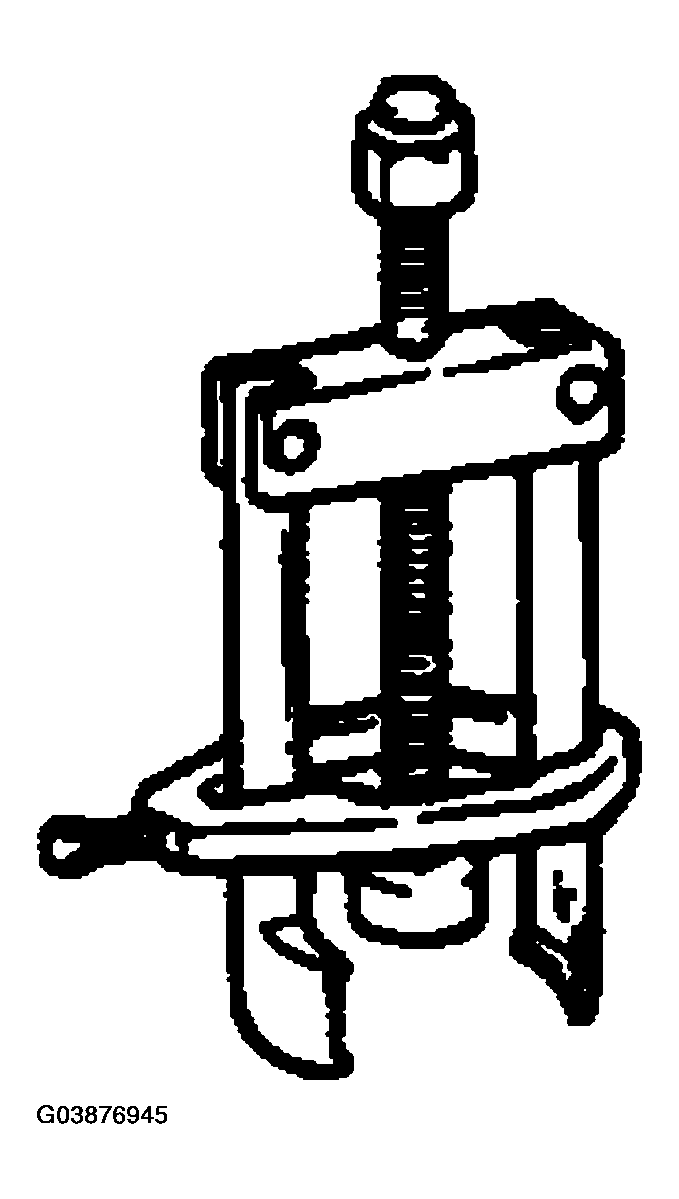

| 09455-21000 Bearing and gear puller |
Fig 11 | Removal of the transfer drive gear and bearing. |
| 09455-21100 Bearing installer |
Fig 12 |
|
| 09532-11500 Bearing installer |
Fig 13 | Installation of the differential outlace bearing. (use with 09500-11000) |
| 09453-21000 Snap ring compressor |
Fig 14 |
|
| 09456-39000 Spring compressor |
Fig 15 | Removal and installation of the low and reverse brake and overdrive clutch snap ring. |
| 09432-21701 Bearing outlace installer |
Fig 16 | Installation of the output shaft outlace. |
| 09452-33100 Oil pump remover |
Fig 17 | Removal of the oil pump. |
| 09452-21200 Oil pump oil seal installer |
Fig 18 | Installation of the oil pump oil seal. |
| 09200-38001 Engine support |
Fig 19 | Removal and installation of the transaxle. |
| 09456-39100A/B Clearance dummy plate |
Fig 20 | Measurement of the low and reverse and second brake end play. |
| 09457-39000 Socket wrench (41) |
Fig 21 | Removal and installation of the output lock nut. |
