Engine Control Module

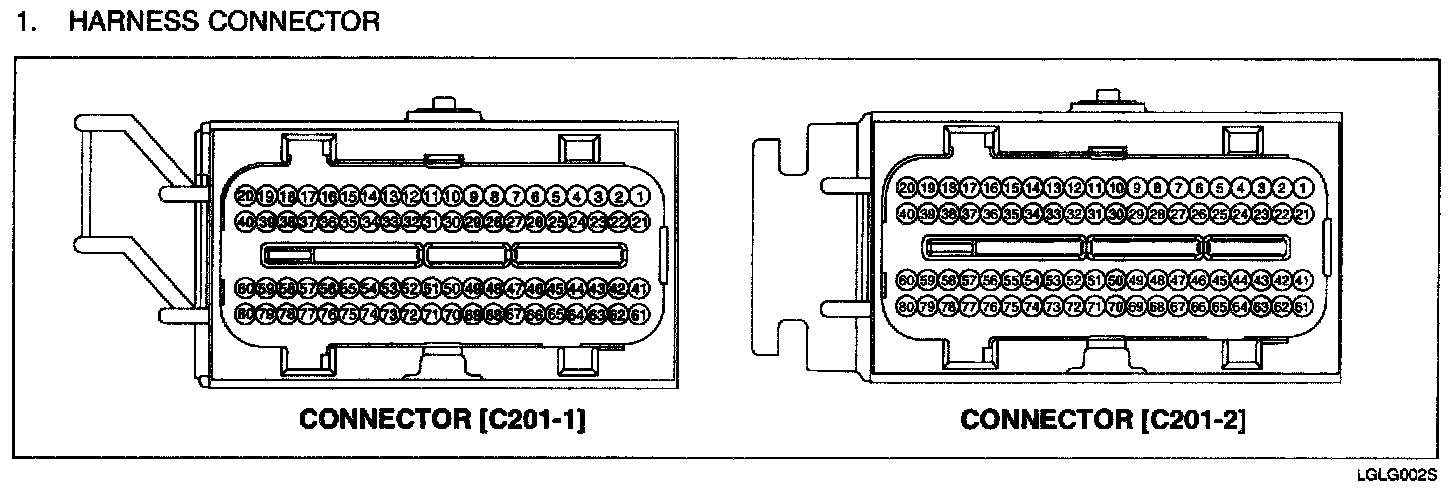

PCM Harness Connector:

PCM HARNESS CONNECTOR

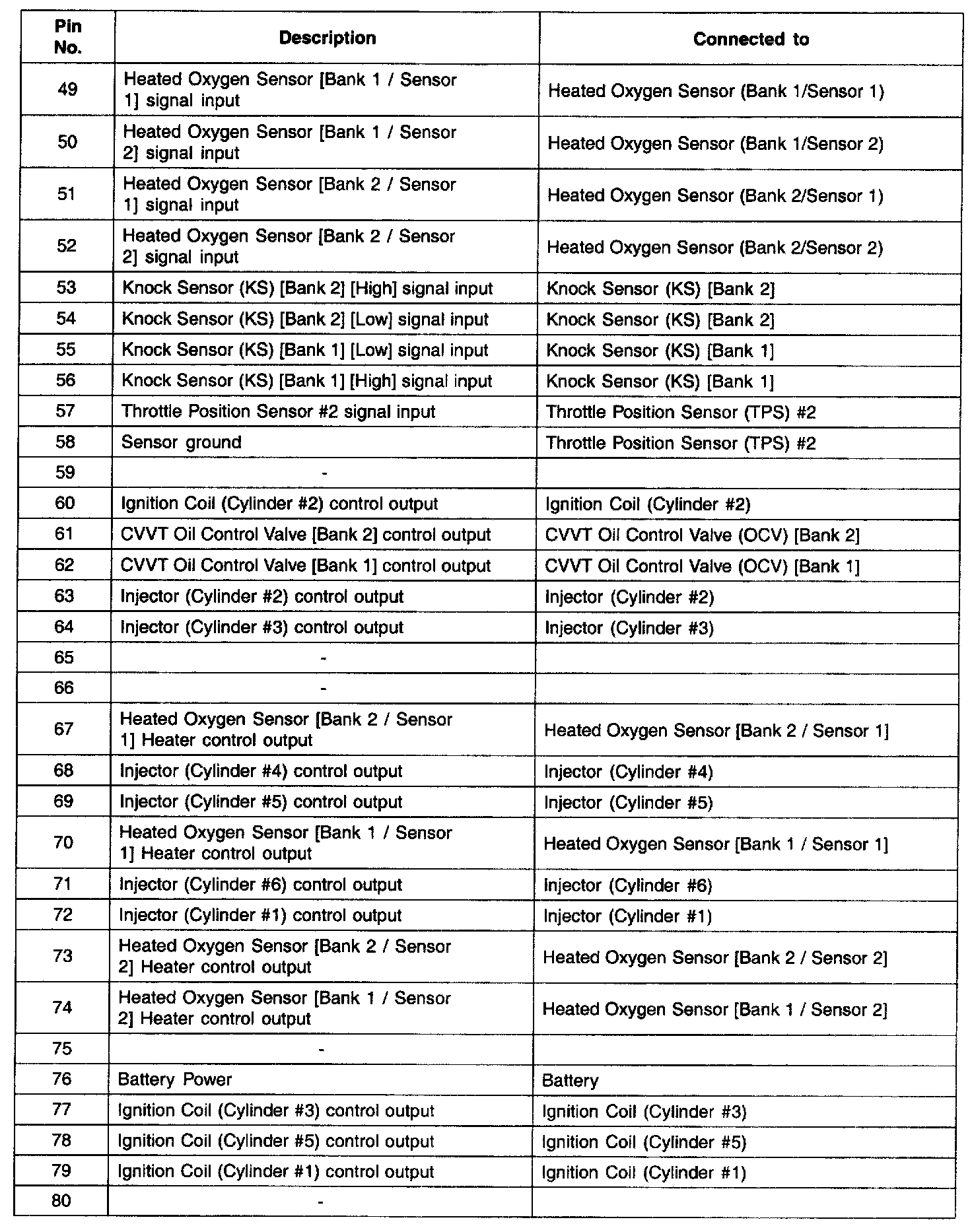

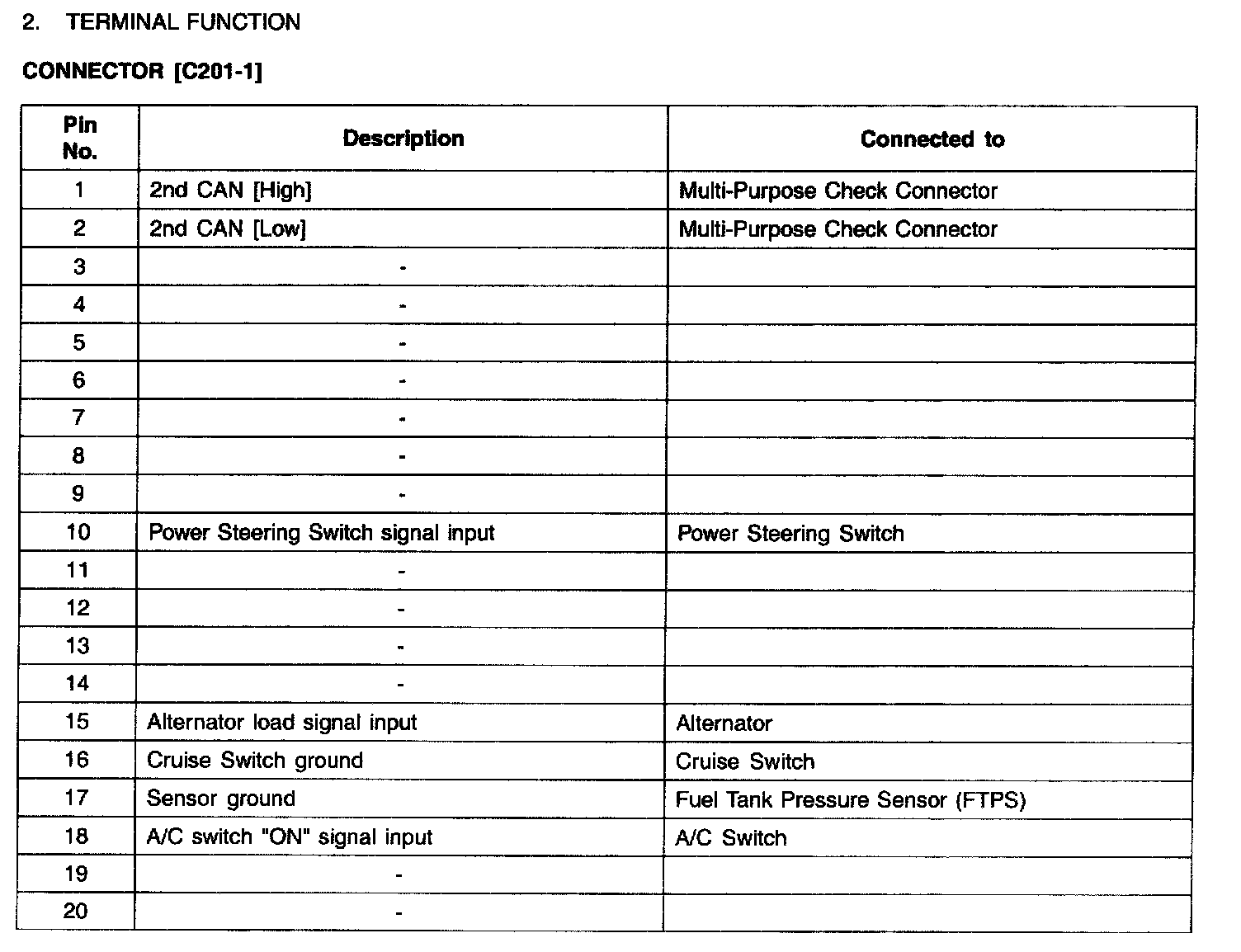

PCM Terminal Function - C201-1 (Part 1):

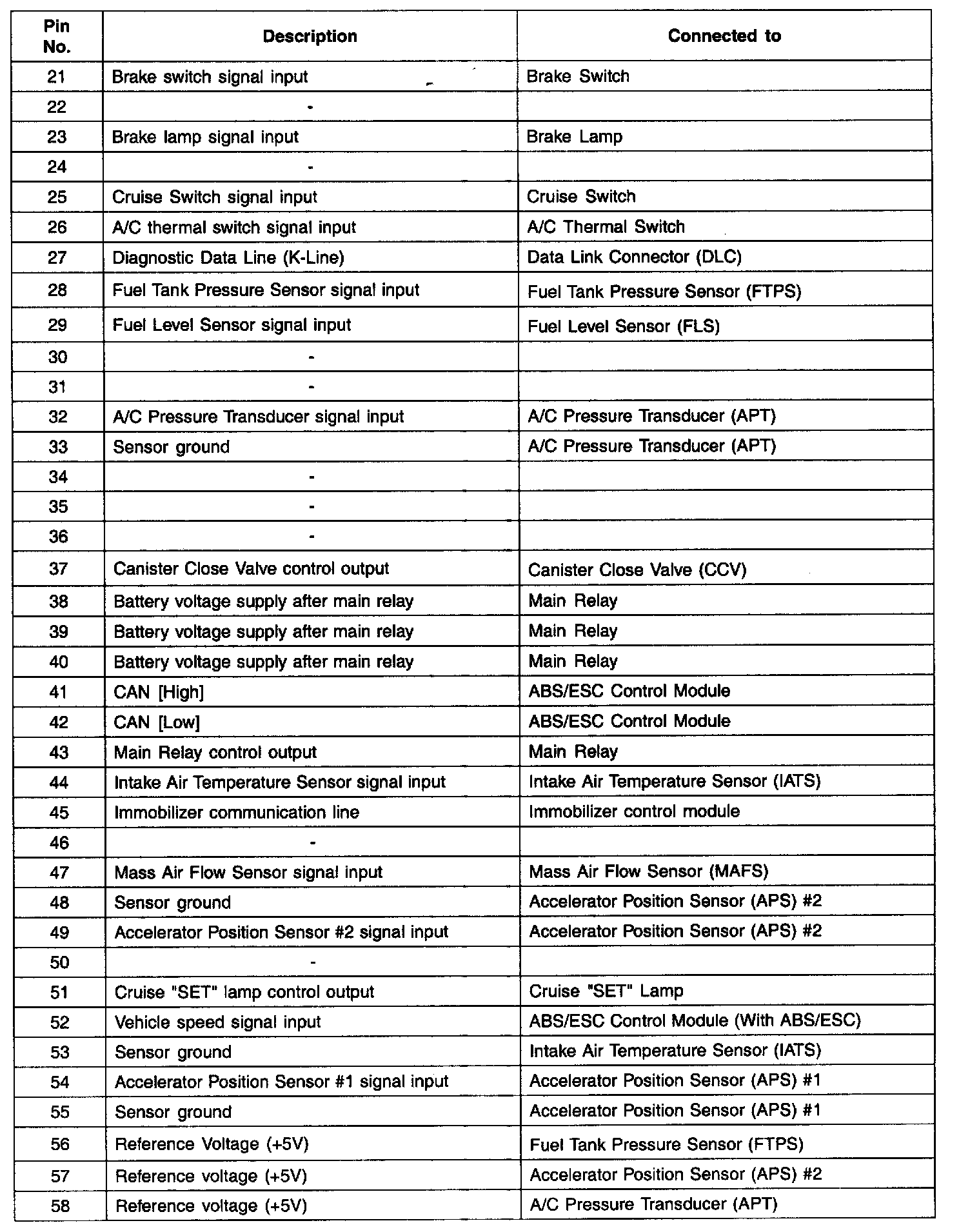

PCM Terminal Function - C201-1 (Part 2):

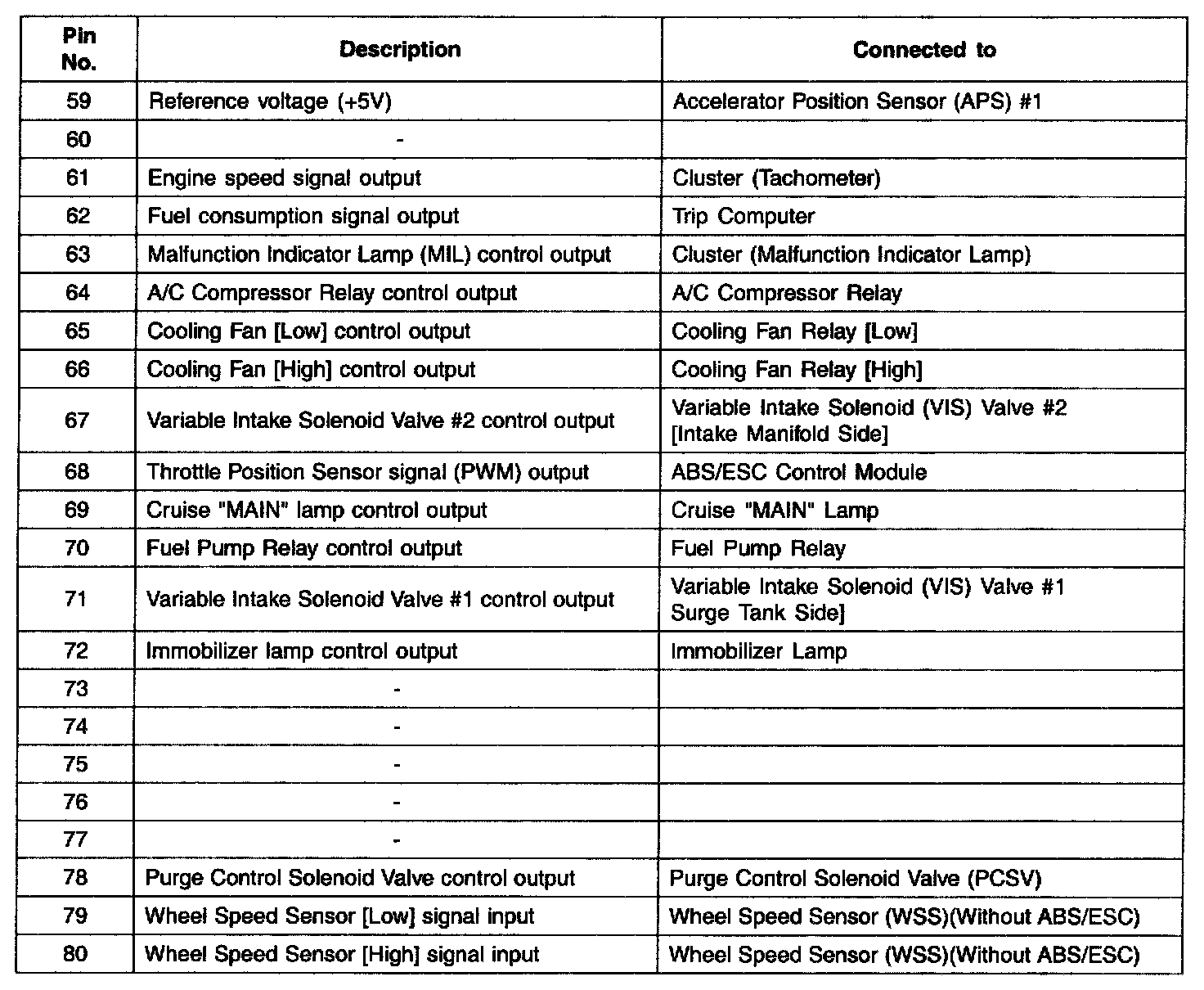

PCM Terminal Function - C201-1 (Part 3):

PCM TERMINAL FUNCTION - CONNECTOR (C201-1)

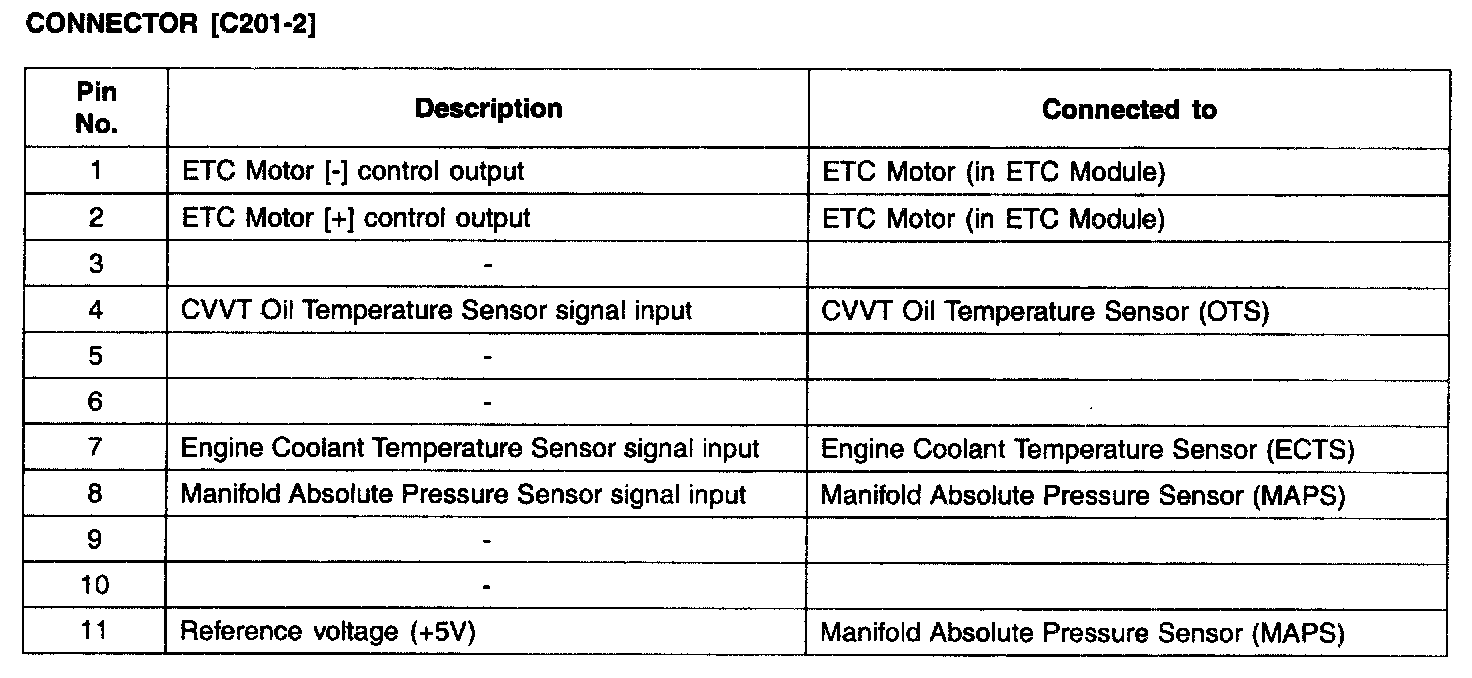

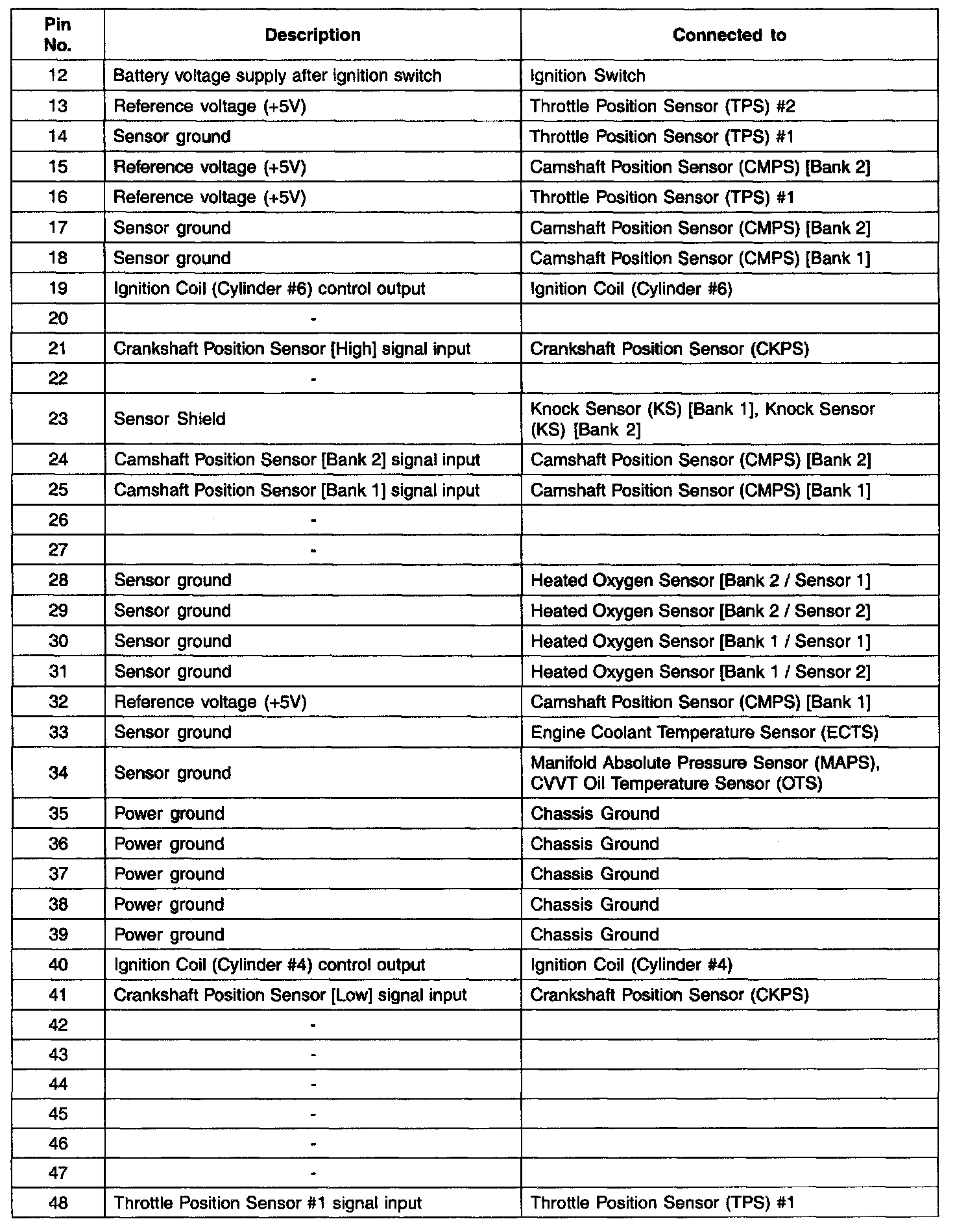

PCM Terminal Function - C201-2 (Part 1):

PCM Terminal Function - C201-2 (Part 2):

PCM Terminal Function - C201-2 (Part 3):

PCM TERMINAL FUNCTION - CONNECTOR (C201-2)

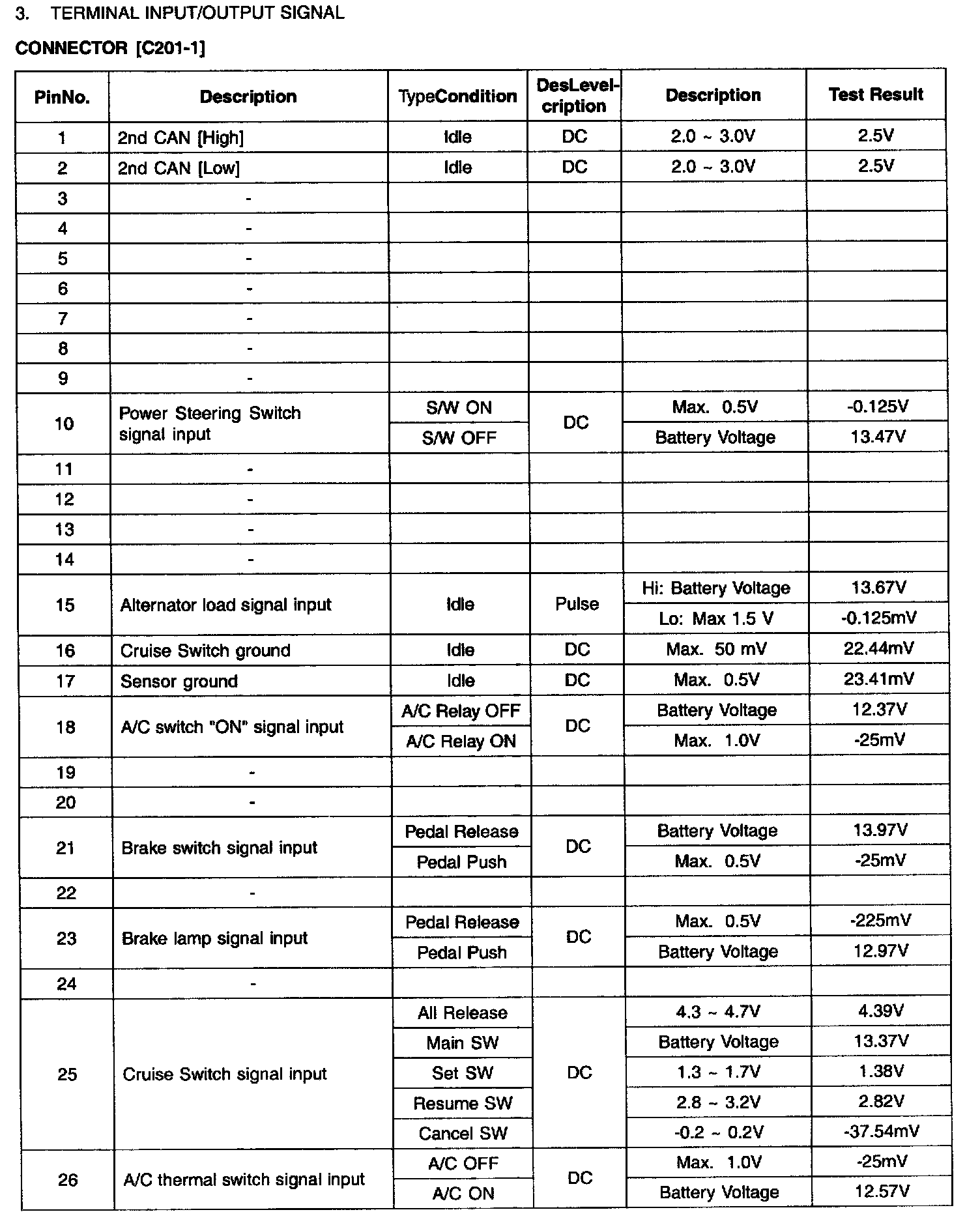

PCM Terminal Input/Output Signal - C201-1 (Part 1):

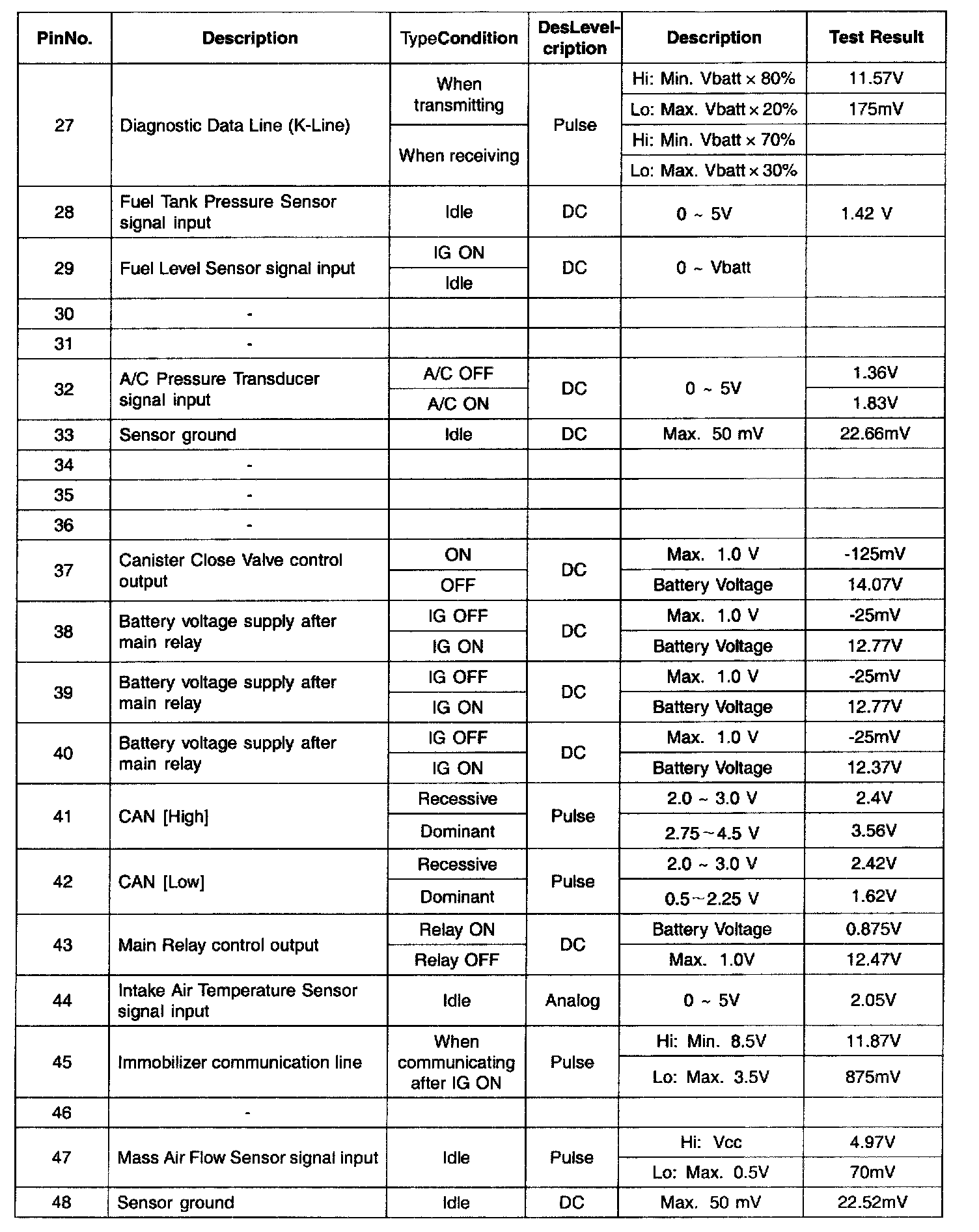

PCM Terminal Input/Output Signal - C201-1 (Part 2):

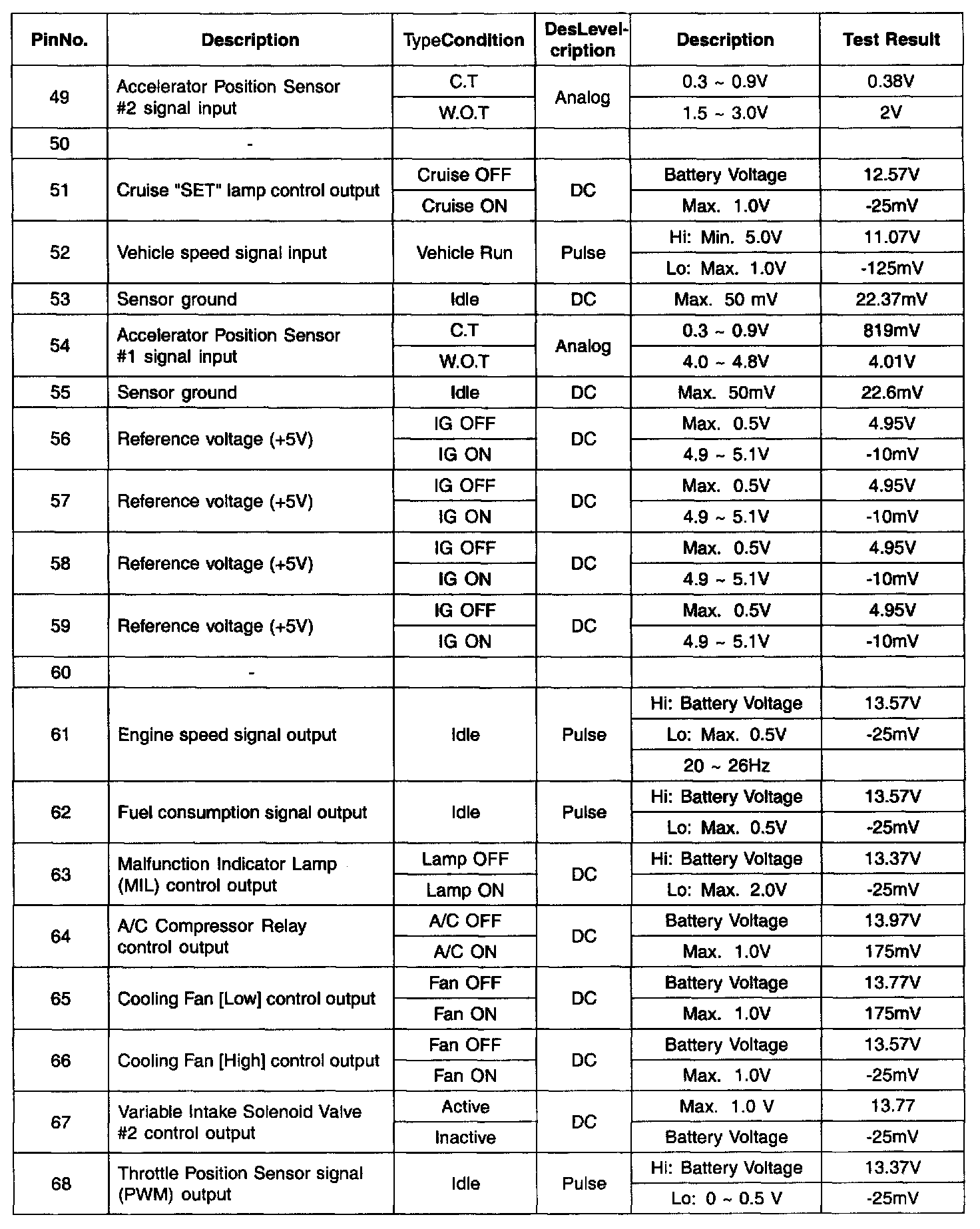

PCM Terminal Input/Output Signal - C201-1 (Part 3):

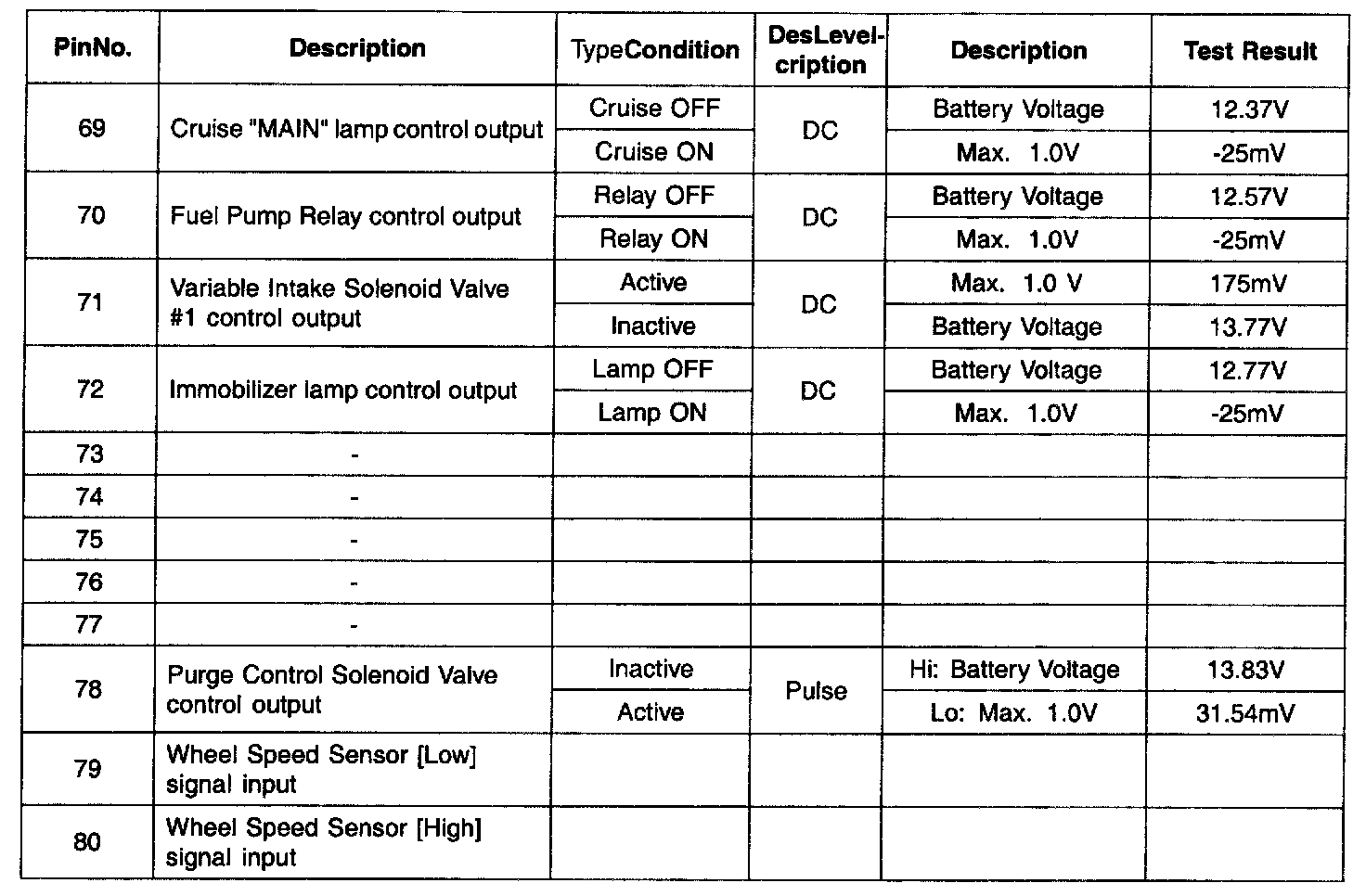

PCM Terminal Input/Output Signal - C201-1 (Part 4):

PCM TERMINAL INPUT/OUTPUT SIGNAL - CONNECTOR (C201-1)

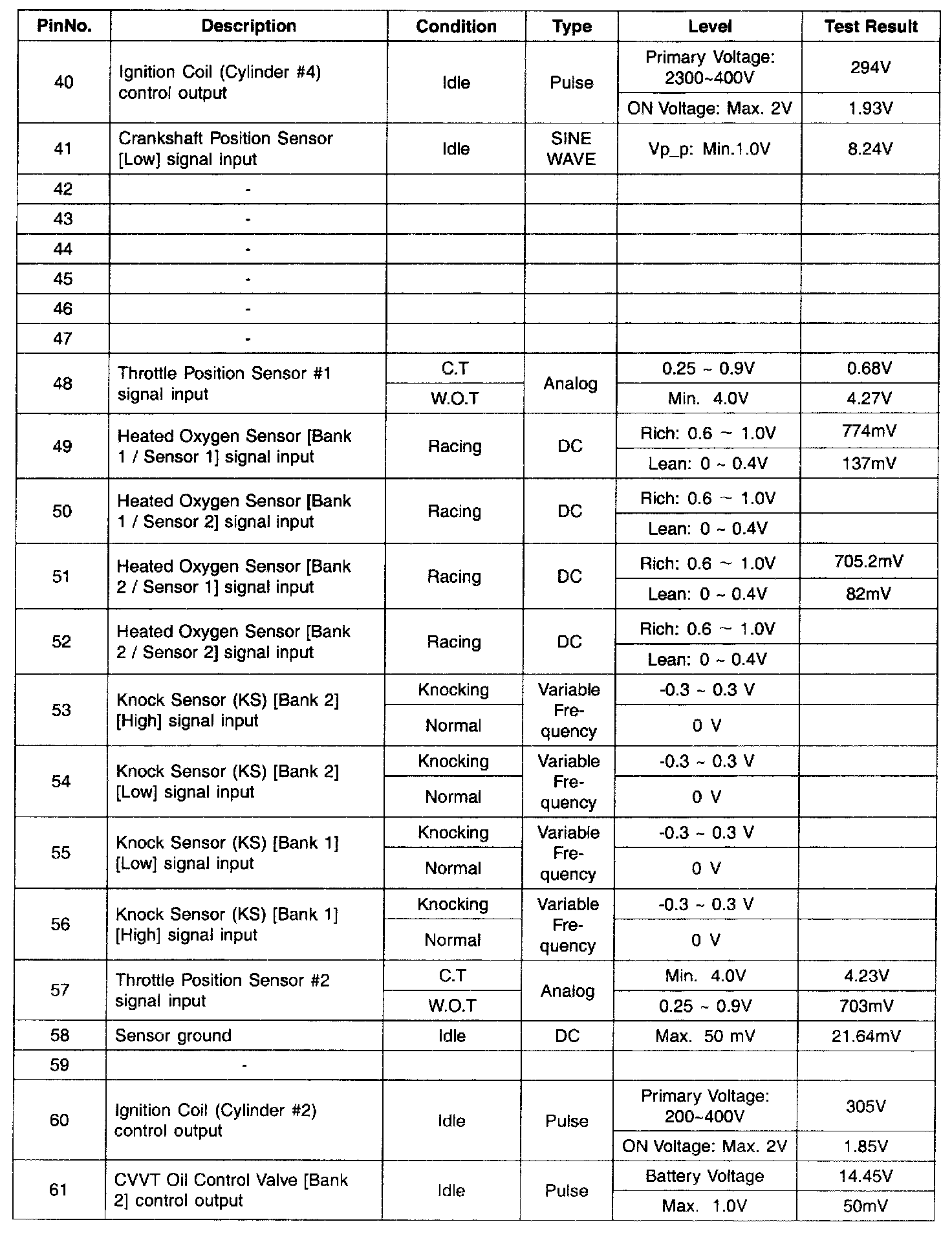

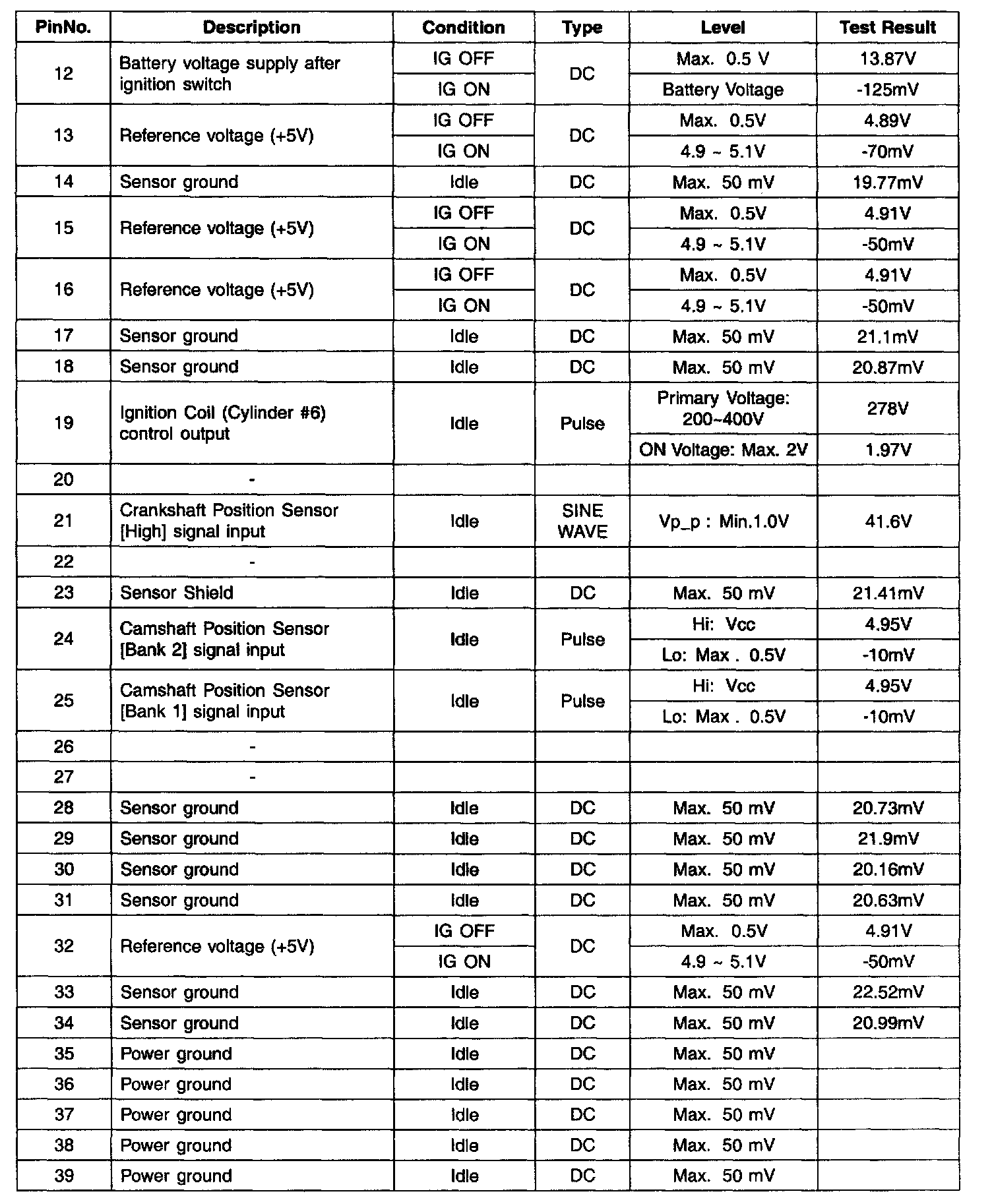

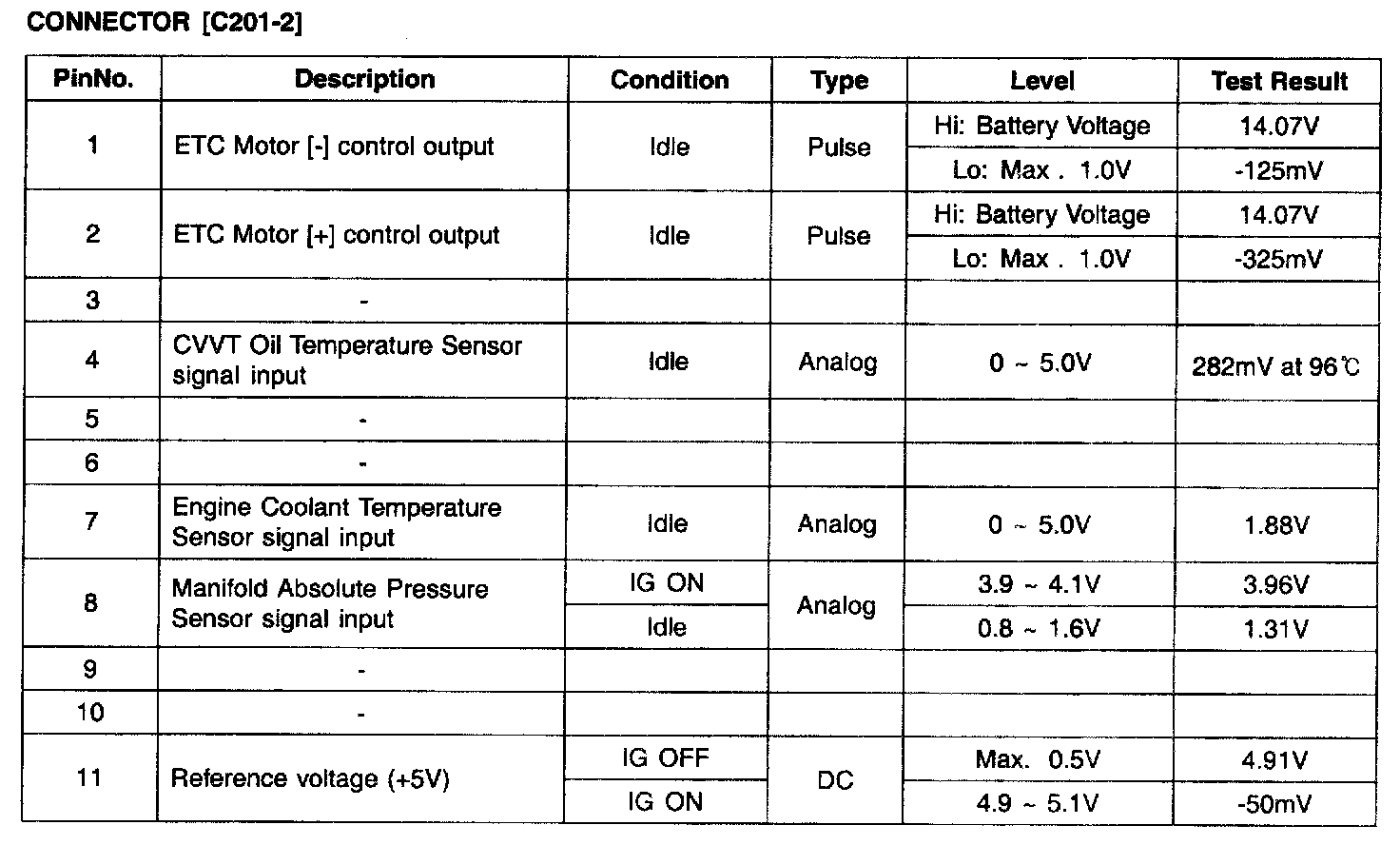

PCM Terminal Input/Output Signal - C201-2 (Part 1):

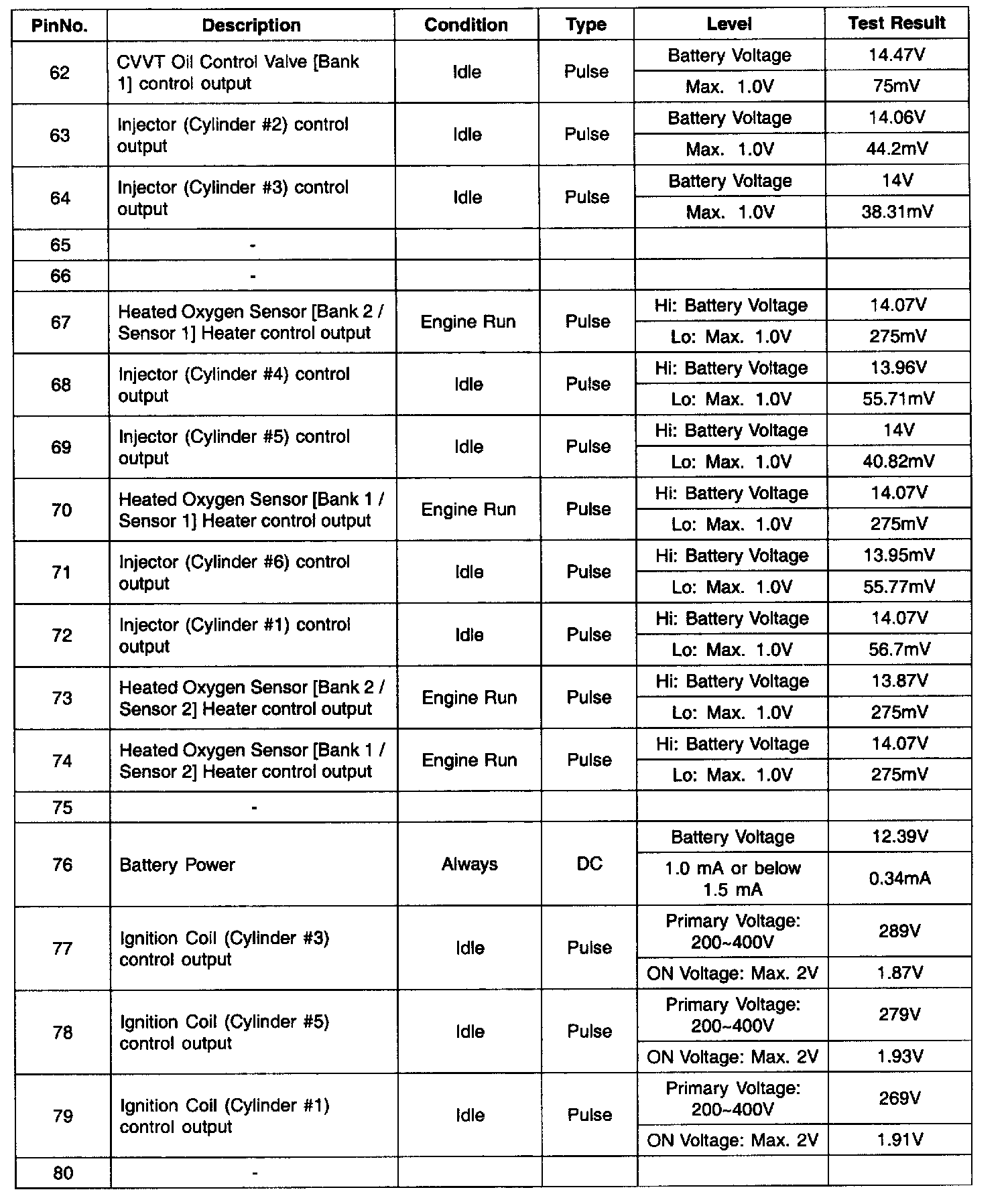

PCM Terminal Input/Output Signal - C201-2 (Part 2):

PCM Terminal Input/Output Signal - C201-2 (Part 3):

PCM Terminal Input/Output Signal - C201-2 (Part 4):

PCM TERMINAL INPUT/OUTPUT SIGNAL - CONNECTOR (C201-2)
