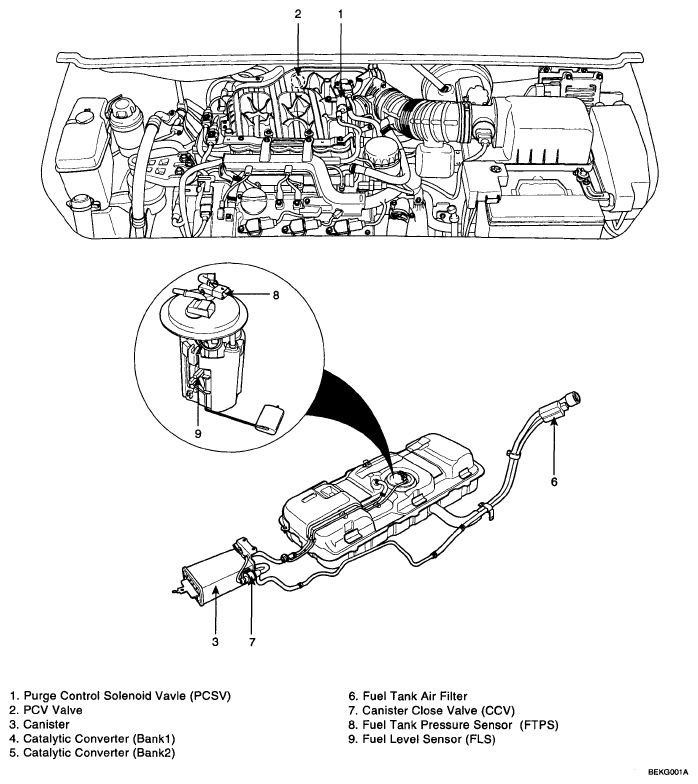

Fig 1: Identifying Emission Control System Components Location (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

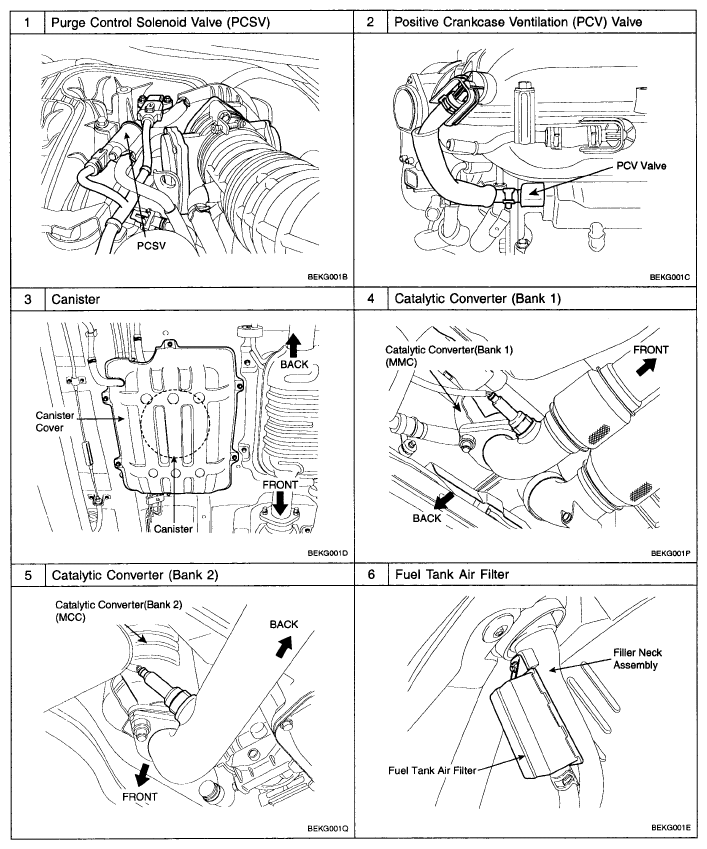

Fig 2: Identifying Emission Control System Components Location (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

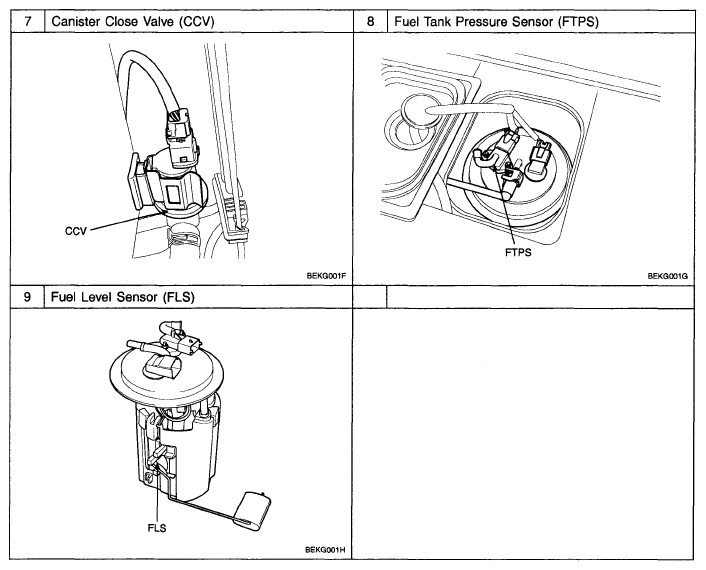

Fig 3: Identifying Emission Control System Components Location (3 Of 3)
