Ignition Switch: Service and Repair
IGNITION SWITCHREPLACEMENT
1. Disconnect the negative (-) battery terminal.

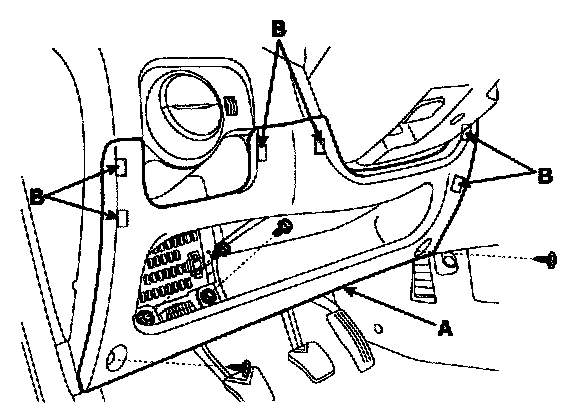

2. Remove the crash pad lower panel(A). Take care of fixing clips (B).

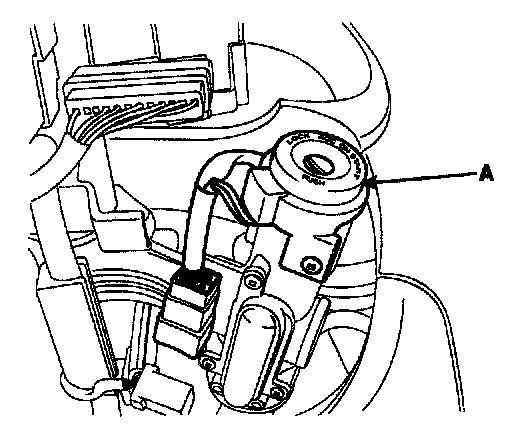

3. Remove the ignition switch (A) after loosening the screw with IG ON and disconnecting the 6P connector.
4. Remove the steering column shaft.
5. Remove the door warning switch after loosening the screws and disconnecting the 6P connector.

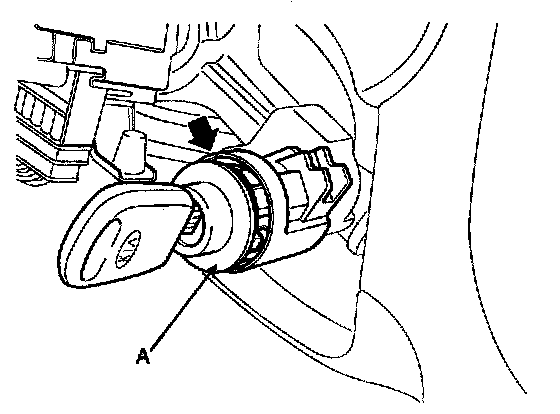

6. If it is necessary to remove the key lock cylinder (A), remove the key lock cylinder (A) after pushing lock pin with key ACC.
7. Installation is the reverse of removal procedure
