Monitor SCANTOOL Data

Ignition "ON" & Engine "OFF".
Disconnect IATS connector.
Connect Scantool and monitor the "INT.AIR TEMP. SNSR (V)" parameter on the Scantool data list.
Jumper the terminals 1 and 5 of the sensor harness connector together.
Specification: Approx. 0V

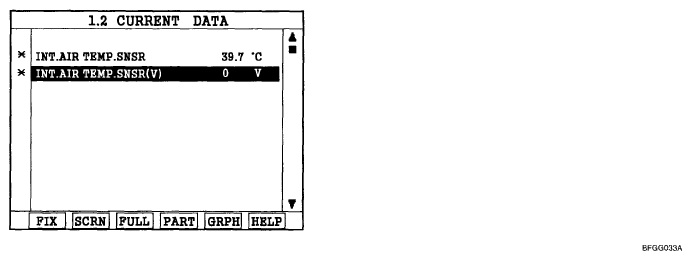

Fig 1: Scan Tool Display - INTAKE AIR TEMPERATURE SENSOR
Courtesy of KIA MOTORS AMERICA, INC.
Is IAT data near the specified value.?
YES
- Possibility of sensor malfunction. Go to "COMPONENT INSPECTION " procedure.
NO
- Go to next step as below.
Jumper the terminal 5 of the IATS harness connector to chassis ground.
Read "INT.AIR TEMP. SNSR (V)" parameter on the Scantool.
Specification: Approx. 0V
Is displayed IAT data near the specified value.?
YES
- Possibility of open in IATS ground circuit. Go to "GROUND CIRCUIT INSPECTION " procedure.
NO
- Possibility of open or short to battery in IAT signal circuit. Go to "SIGNAL CIRCUIT INSPECTION " procedure.
