Memory Operation

  1. If the position switch is pressed within the 5 seconds after pressing the memory switch when the ignition is ON, then, current positions of the seat and mirror are registered (memory permits status lasts for 5 seconds after the memory switch is on, and the memory permit status is cleared thereafter. In other words, current position is registered only if the position switch is pressed in memory permit status).

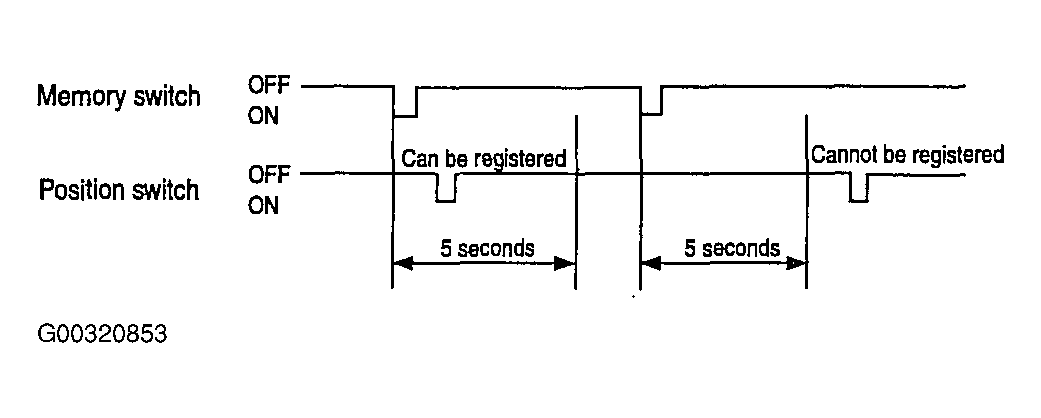

    Fig 1: Memory Switch Registration Chart
    G00320853Courtesy of KIA MOTORS AMERICA, INC.
  2. Memory permits status will be cleared if any of the following conditions is met.
    • After 5 seconds from the memory switch ON.
    • When the manual switch of seat is ON.
    • When the ignition is OFF.
    • When the STOP switch is ON.
    • When the memory registration is completed.
  3. If two position switches are pressed ON simultaneously in memory or replay, it operates by the switch recognized first.
  4. Memory setting cannot be performed if the vehicle speed is more than the specified one or shift lever is not in the P position when the parking brake is released.
