HECU (Hydraulic And Electronic Control Unit): Components

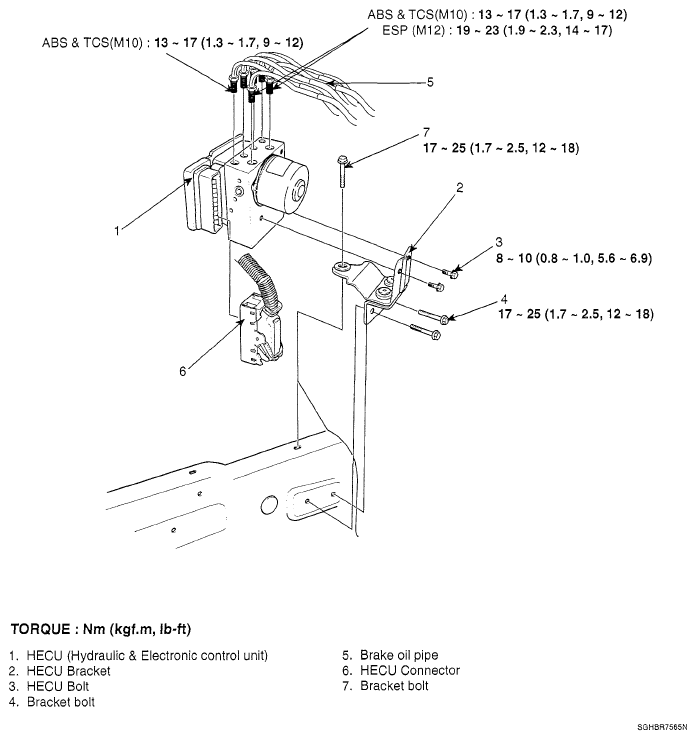

Fig 1: Hydraulic And Electronic Control Unit Components With Torque Specifications
G05117565Courtesy of KIA MOTORS AMERICA, INC.
