ESC Control Cycles

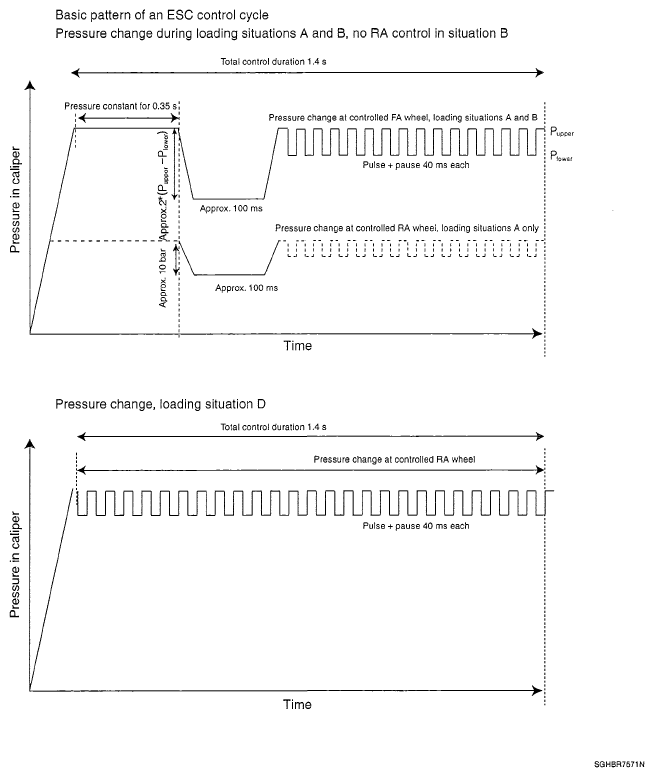

Fig 1: ESC Control Cycles - Blinking Pattern

Courtesy of KIA MOTORS AMERICA, INC.

WHEEL PRESSURE MODULATION :

WHEEL PRESSURE MODULATION

Loading situation	Control duration	Pressure applied by braking while an ESC cycle is in progress	Controlled FA pressure, one wheel only	Controlled RA pressure, one wheel only
A	1.4 s	0 MPa	7.0 ~ 8.5	0.7 ~ 1.3
		5.0 MPa	10.0 ~ 12.0	5.5 ~ 6.5
		10.0 MPa	10.0 ~ 12.0	5.5 ~ 6.5
B	1.4 s	0 MPa	2.5 ~ 3.5	uncontrolled
B	1.4 s	5.0 MPa	7.5 ~ 8.5	uncontrolled
D	1.4 s	0 MPa	uncontrolled	3.0 ~ 4.0
D	1.4 s	5.0 MPa	uncontrolled	5.5 ~ 6.5

The ESC control cycles may be inserted into the ABS/TCS load collective at any point as long as the duty cycle for the electric motor does not exceed 20%.

DUTY CYCLE REFERENCE CHART

Temperature [°C]	Pressure applied by braking while an ESC cycle is in progress 0 Mpa		Pressure applied by braking while an ESC cycle is in progress 5.0 Mpa			Pressure applied by braking while an ESC cycle is in progress 10.0 MPa
	Cycles		Cycles			Cycles
	B	D	A	B	D	A
RT	850	450	70	1300	700	50
100	300	150	40	400	250	30
-30	100	50	0	150	100	10
Total:	1250	650	110	1850	1050	90
