Master Cylinder Pressure Sensor: Components

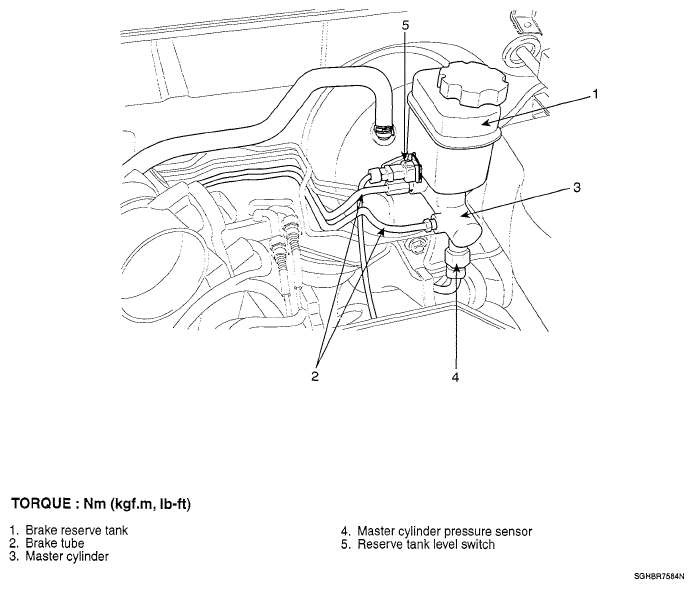

Fig 1: Identifying Master Cylinder Pressure Sensor Components
G05117624Courtesy of KIA MOTORS AMERICA, INC.
