Steering Wheel Angle Speed Sensor: Components

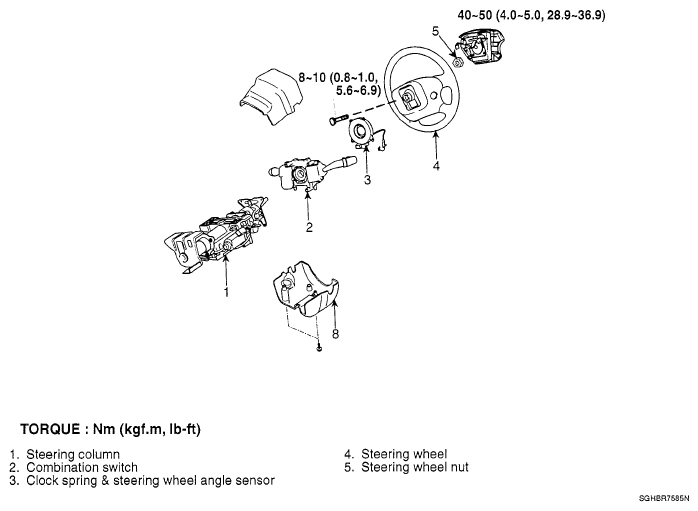

Fig 1: Exploded View Of Steering Wheel Angle Speed Sensor Components With Torque Specifications
G05117625Courtesy of KIA MOTORS AMERICA, INC.
