Yaw-Rate Sensor: Components

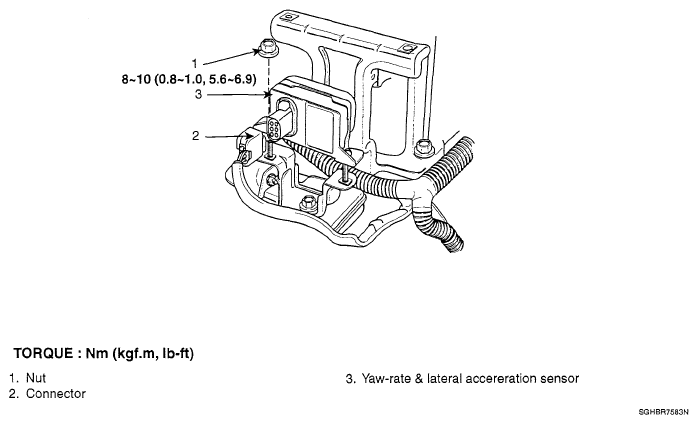

Fig 1: Yaw-Rate Sensor Replacement Components With Torque Specifications
G05117621Courtesy of KIA MOTORS AMERICA, INC.
