Schematic Diagram

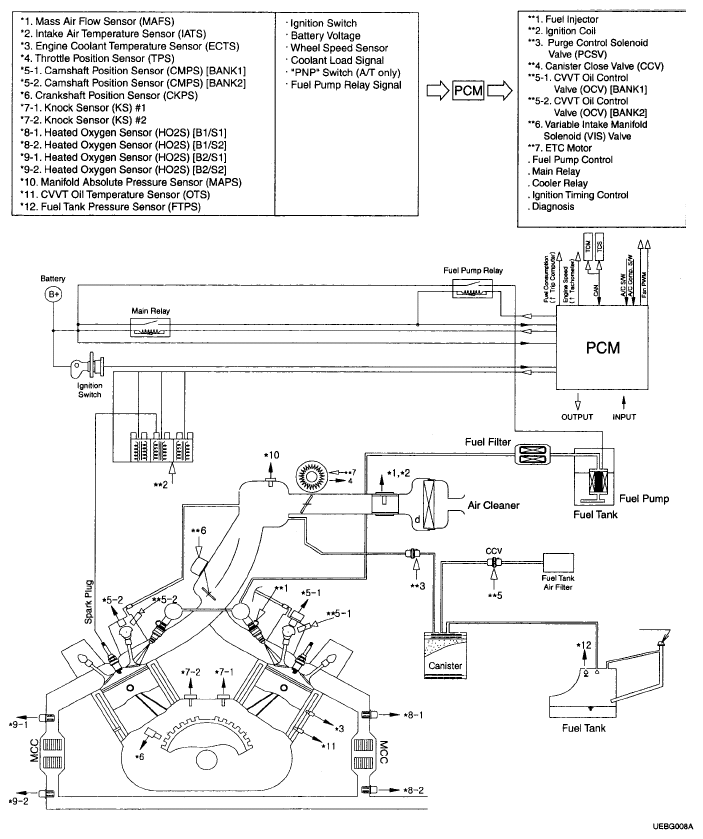

Fig 1: Emission Control System Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
