Component Inspection

  1. Check resistance of OTS
    1. IG "ON" & ENG "OFF"
    2. Monitor Oil Temperature parameter on the scan tool
    3. IG "OFF" & ENG "OFF"
    4. Disconnect OTS connector.
    5. Measure resistance between terminal 1 and 2 of OTS connector after checking out the oil temperature with scan tool

      SPECIFICATION :

      RESISTANCE SPECIFICATION

      Temperature(°C/°F) Resistance(kΩ)
      -20°C/ -4°F 16.52kΩ
      20°C/ 68°F 2.45kΩ
      80°C/ 176°F 0.29kΩ

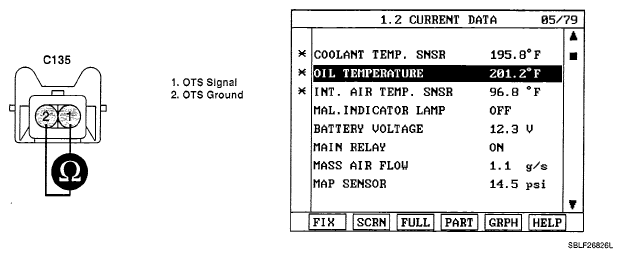

      Fig 1: Measuring Resistance Between Terminal 1 And 2 Of OTS Connector
      G05116559Courtesy of KIA MOTORS AMERICA, INC.
    6. Is the measured resistance within specification ?

      YES

      NO

      • Substitute with a known - good OTS and check for proper operation. If the problem is corrected, replace OTS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
