Back Warning Control Module: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the left side trim of the trunk
  3. Loosen the mounting nuts and disconnect the connector.
  4. Remove the back warning control unit (A).

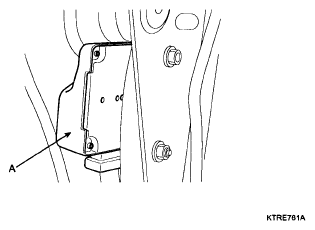

    Fig 1: Identifying Back Warning Control Unit
    G04806698Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal procedure.
