Sensor Detection Range

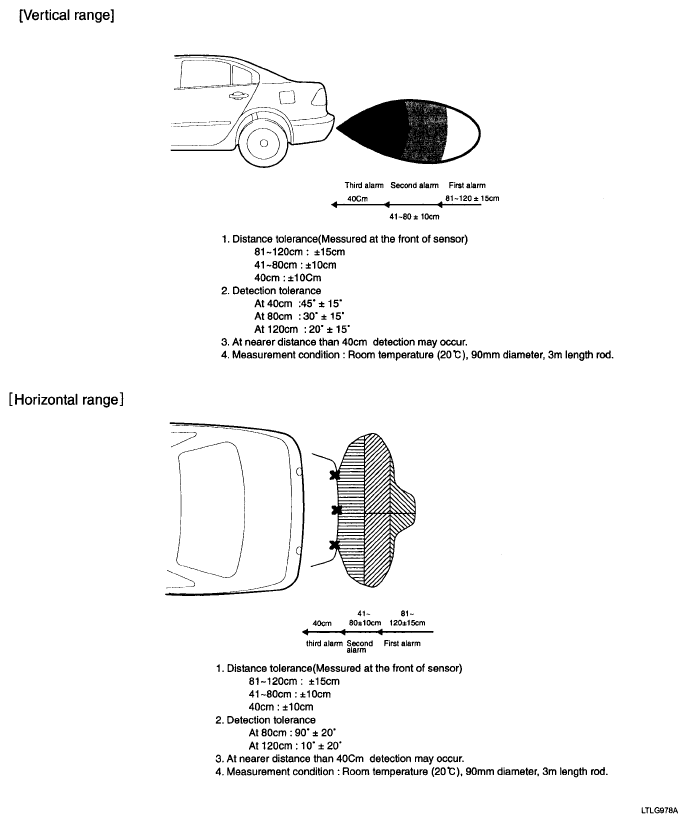

Fig 1: Identifying Sensor Range Distance

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

14cm (dia.) plastic rod is used for the test target.
The test result may differ by a different target object.
Detection range may be reduced by dirt accumulated on sensor, and extremely hot or cold weather.
The following object may not be detected.
- Sharp object or thin object like rope.
- Cotton sponge, snow or other materials absorbing sonic wave.
- Smaller objects than 14cm (dia.), 1m length.
