Navigation Ecu: Components

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exploded View Of Navigation ECU (1 Of 2)
G04050531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

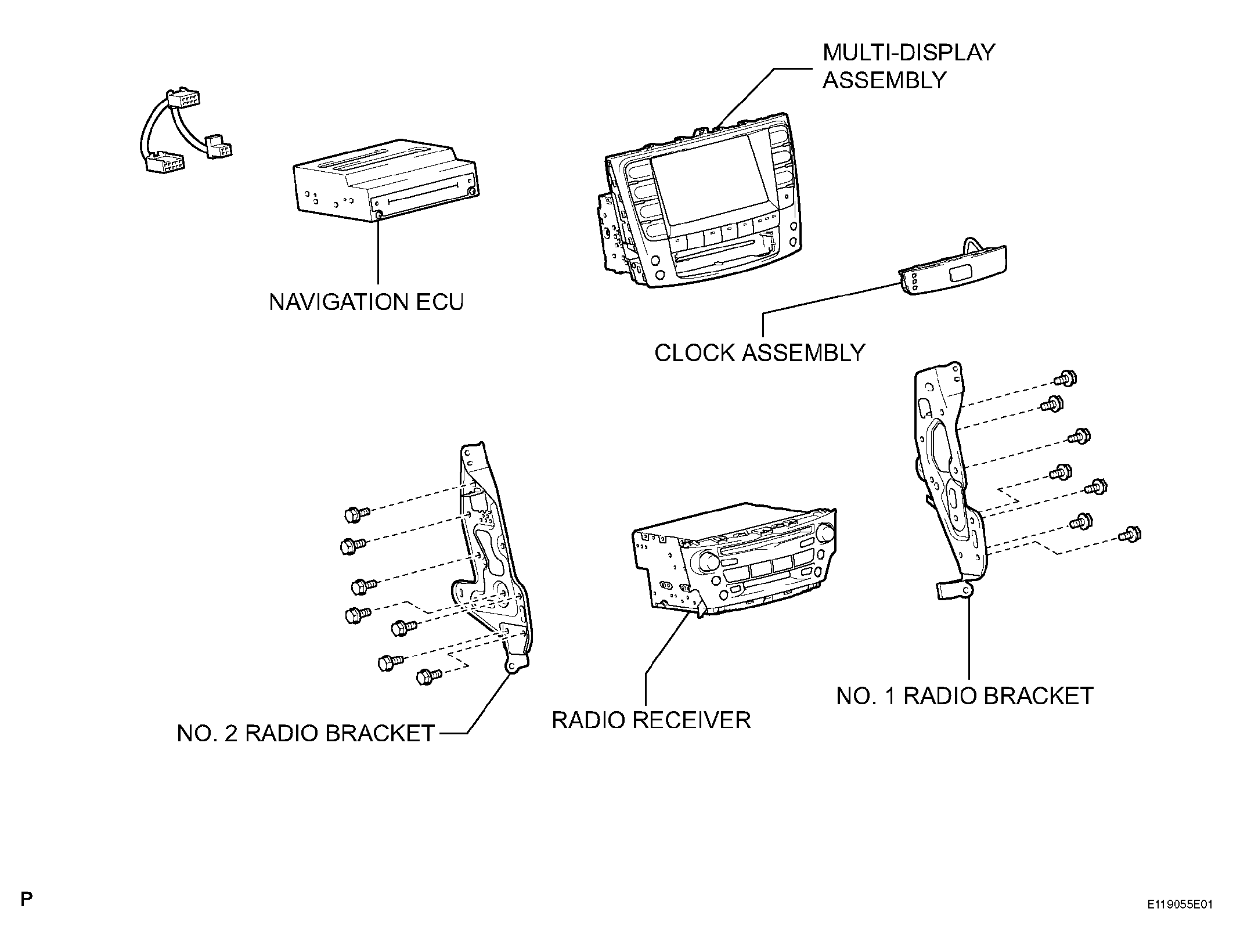

Fig 2: Exploded View Of Navigation ECU (2 Of 2)
G04050532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
