Mechanical Power Steering System: Components

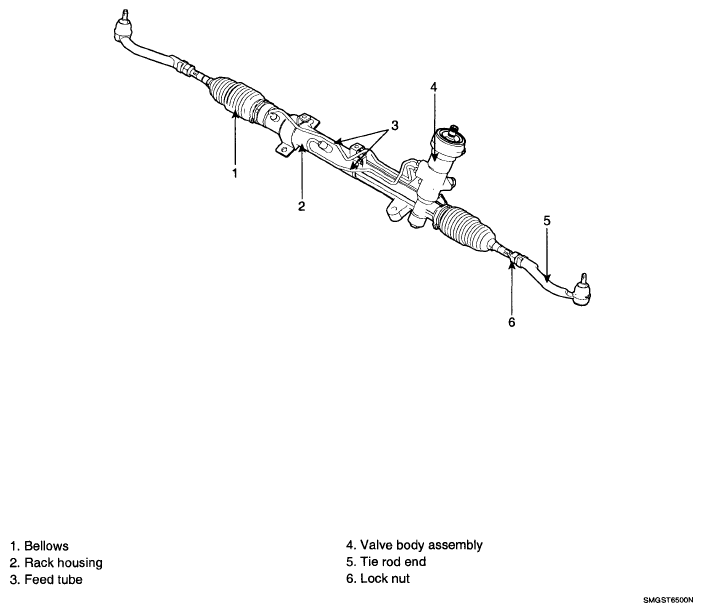

Fig 1: Identifying Mechanical Power Steering System Components
G04805559Courtesy of KIA MOTORS AMERICA, INC.
