Engine Control Module: Diagrams

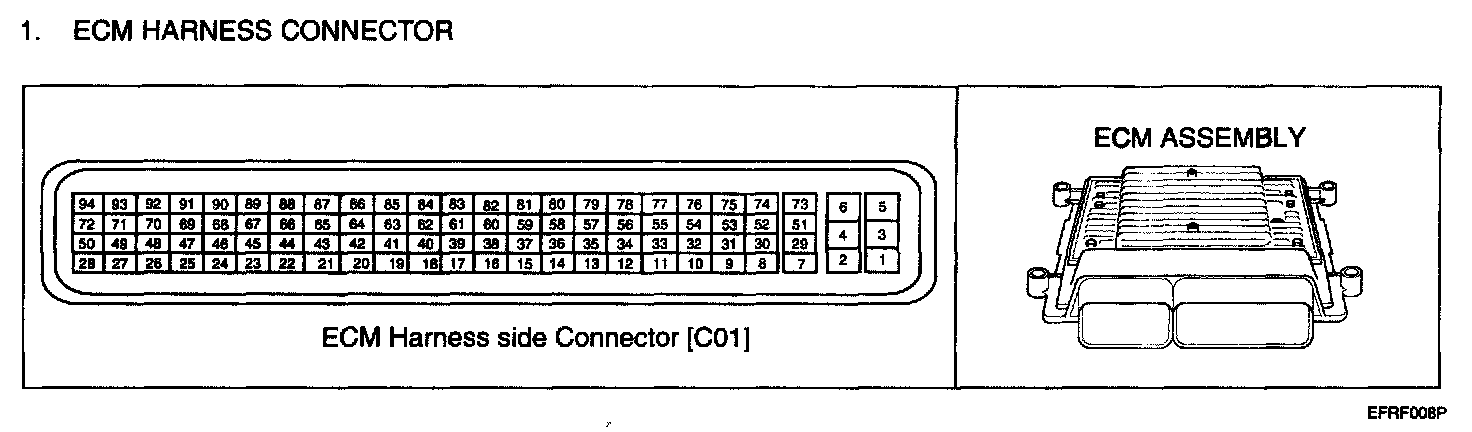

ECM Harness Connector:

ECM Harness Connector

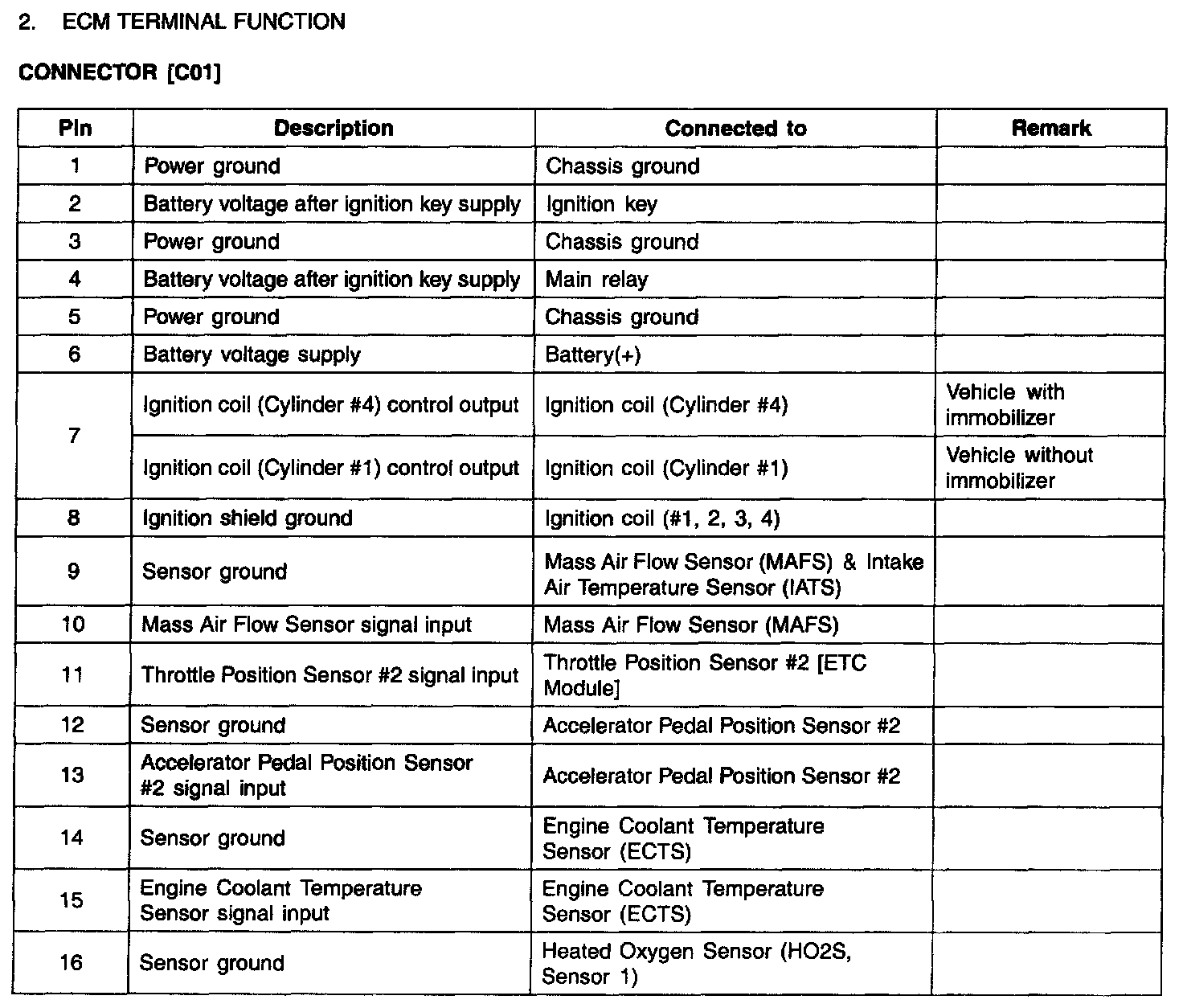

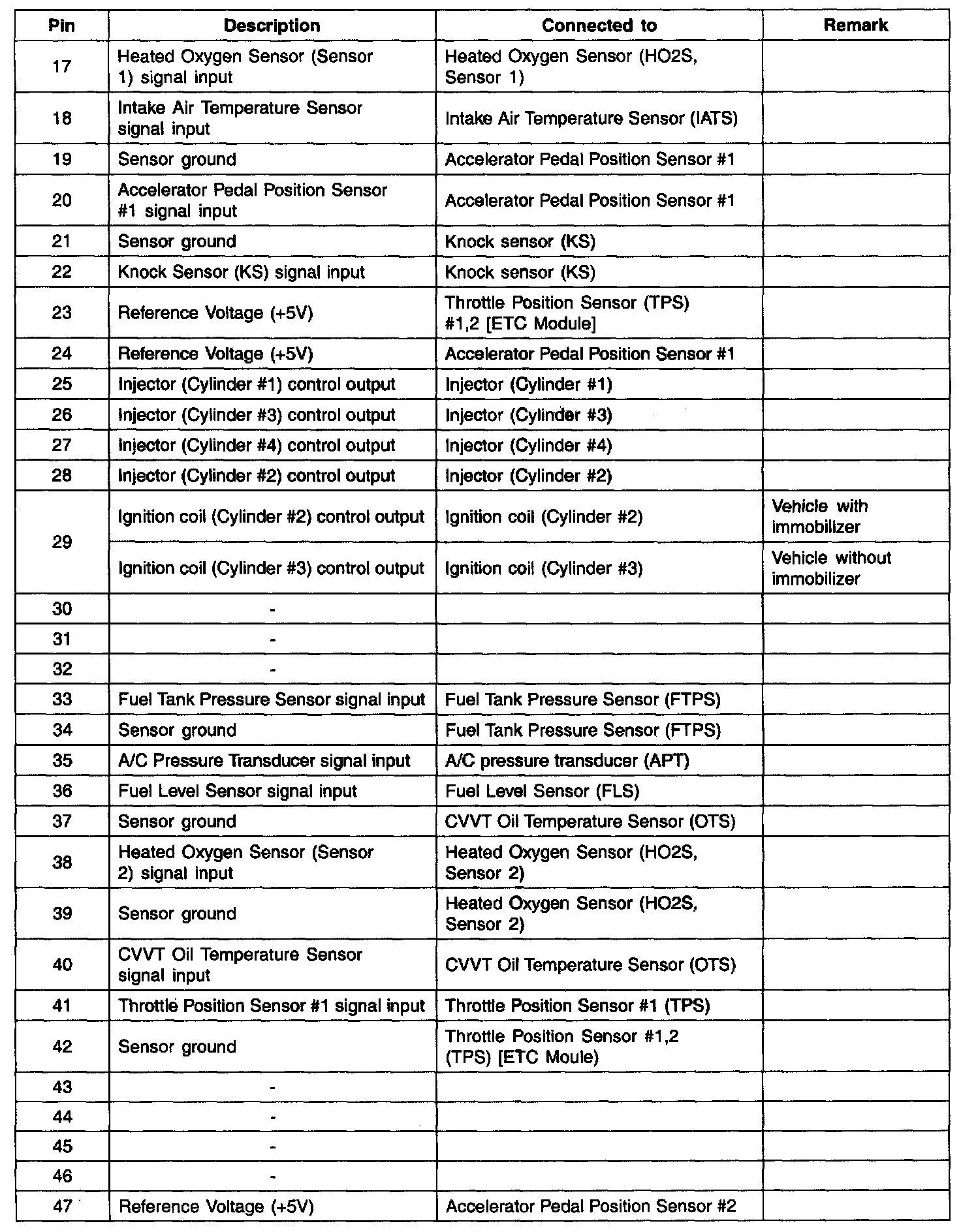

ECM Terminal Function - C01 (Part 1):

ECM Terminal Function - C01 (Part 2):

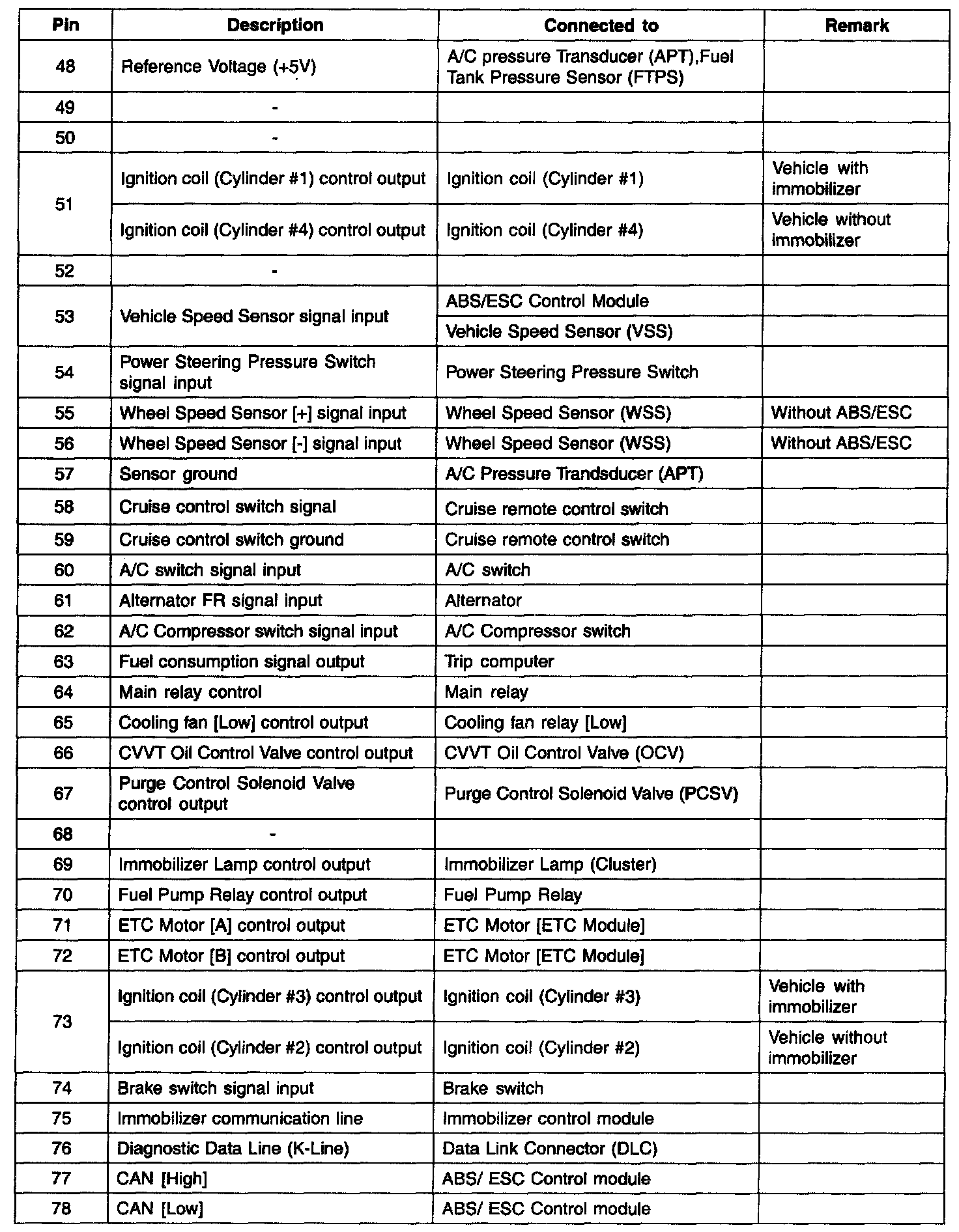

ECM Terminal Function - C01 (Part 3):

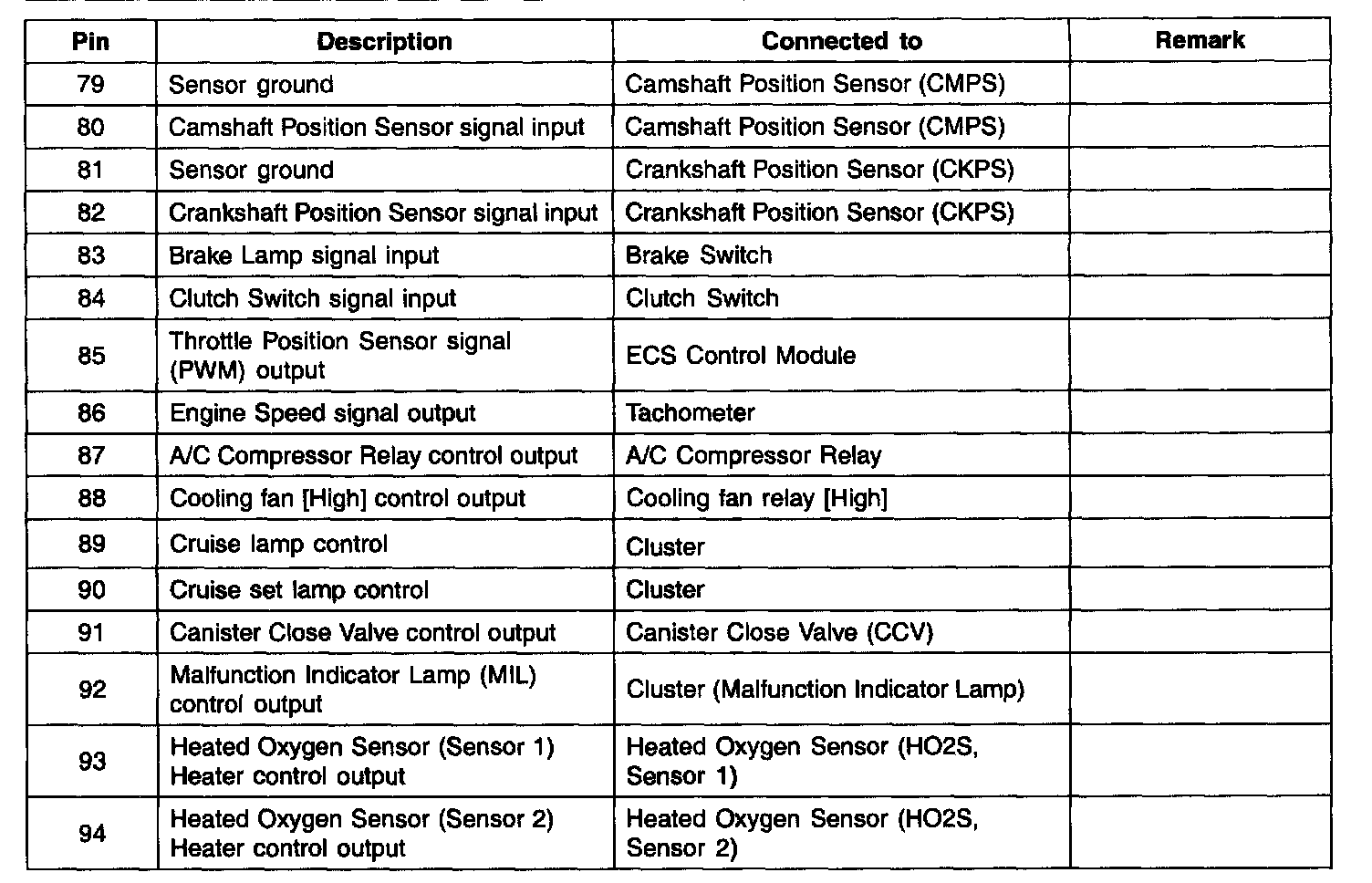

ECM Terminal Function - C01 (Part 4):

ECM Terminal Function - Connector (CO1)

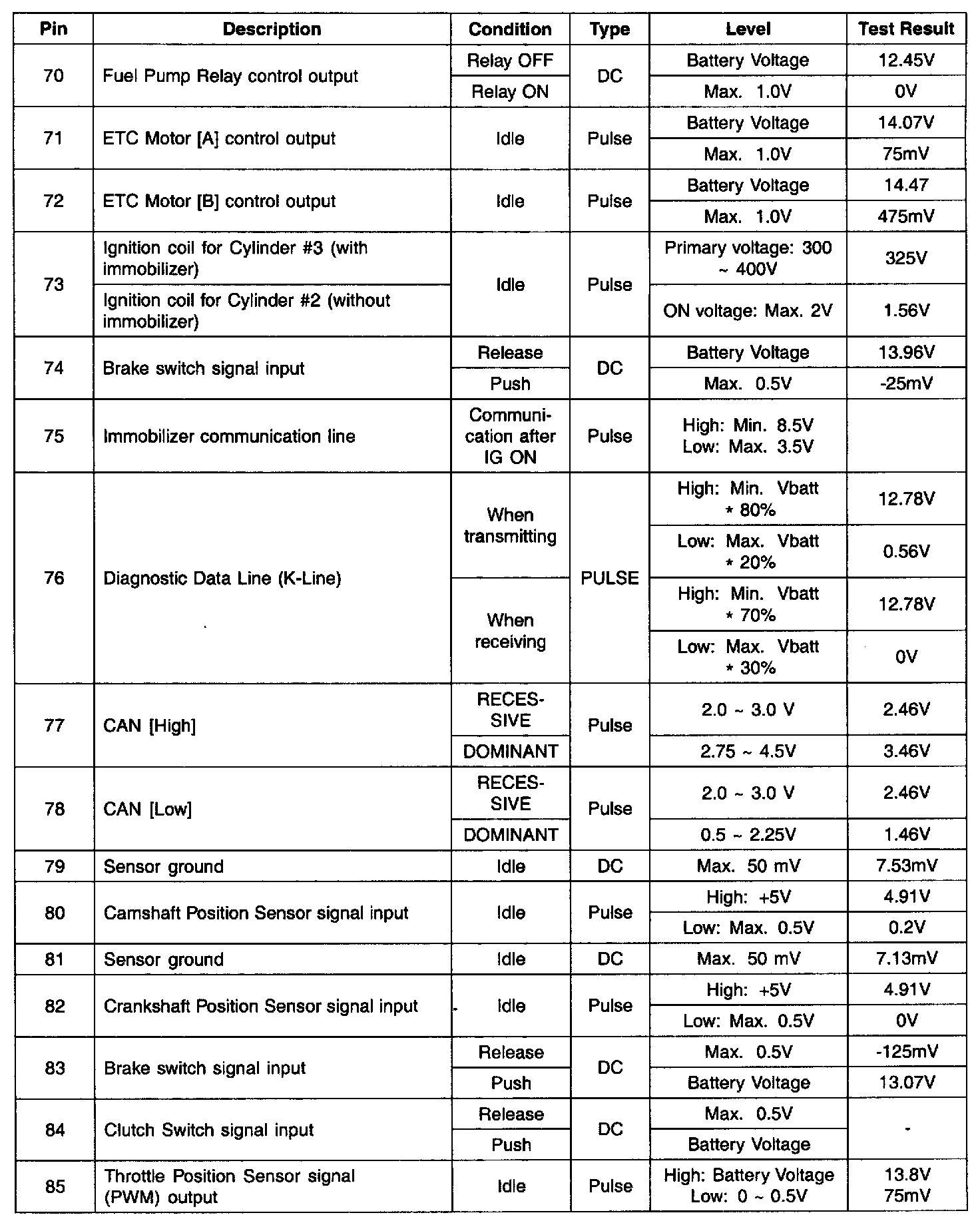

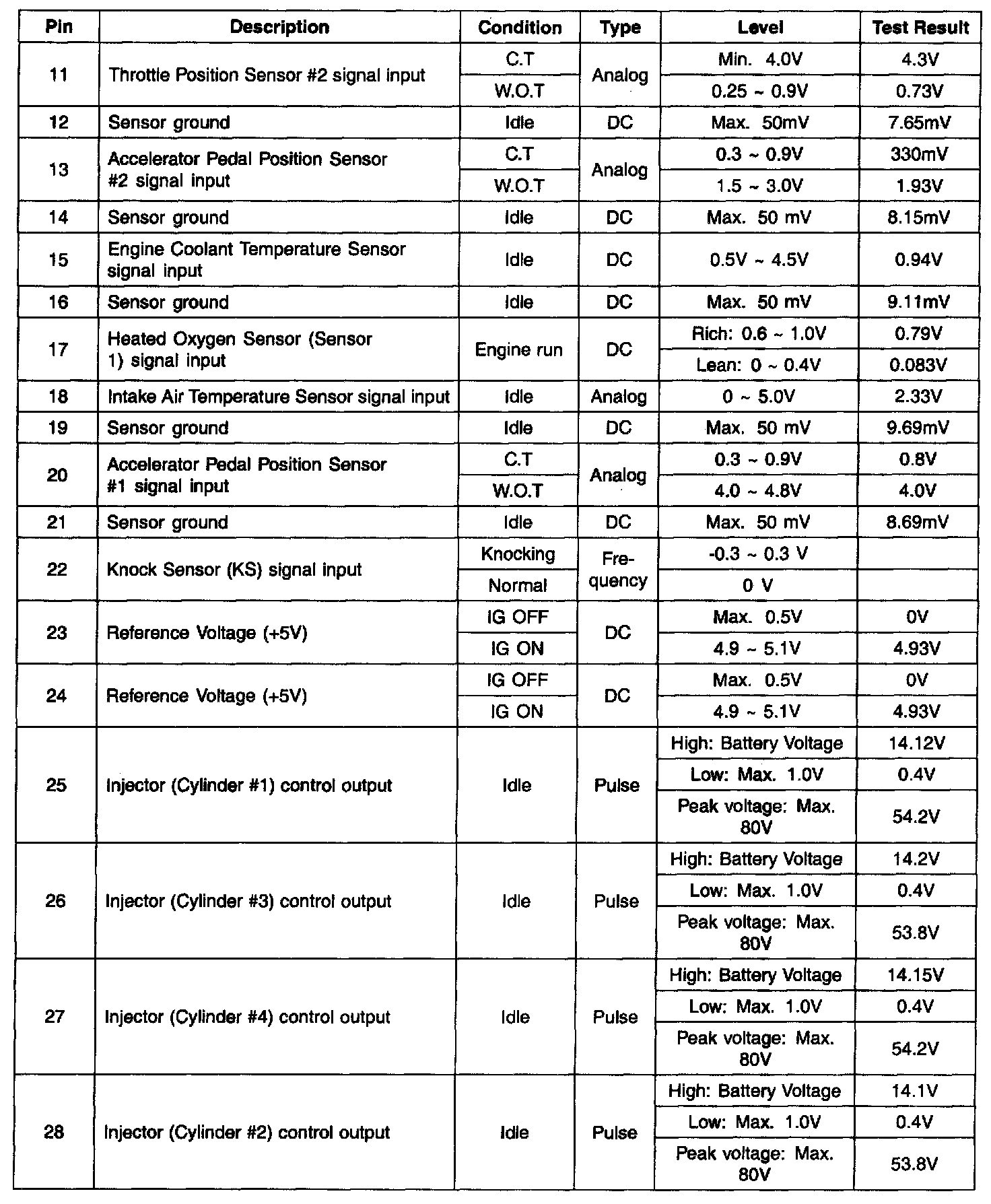

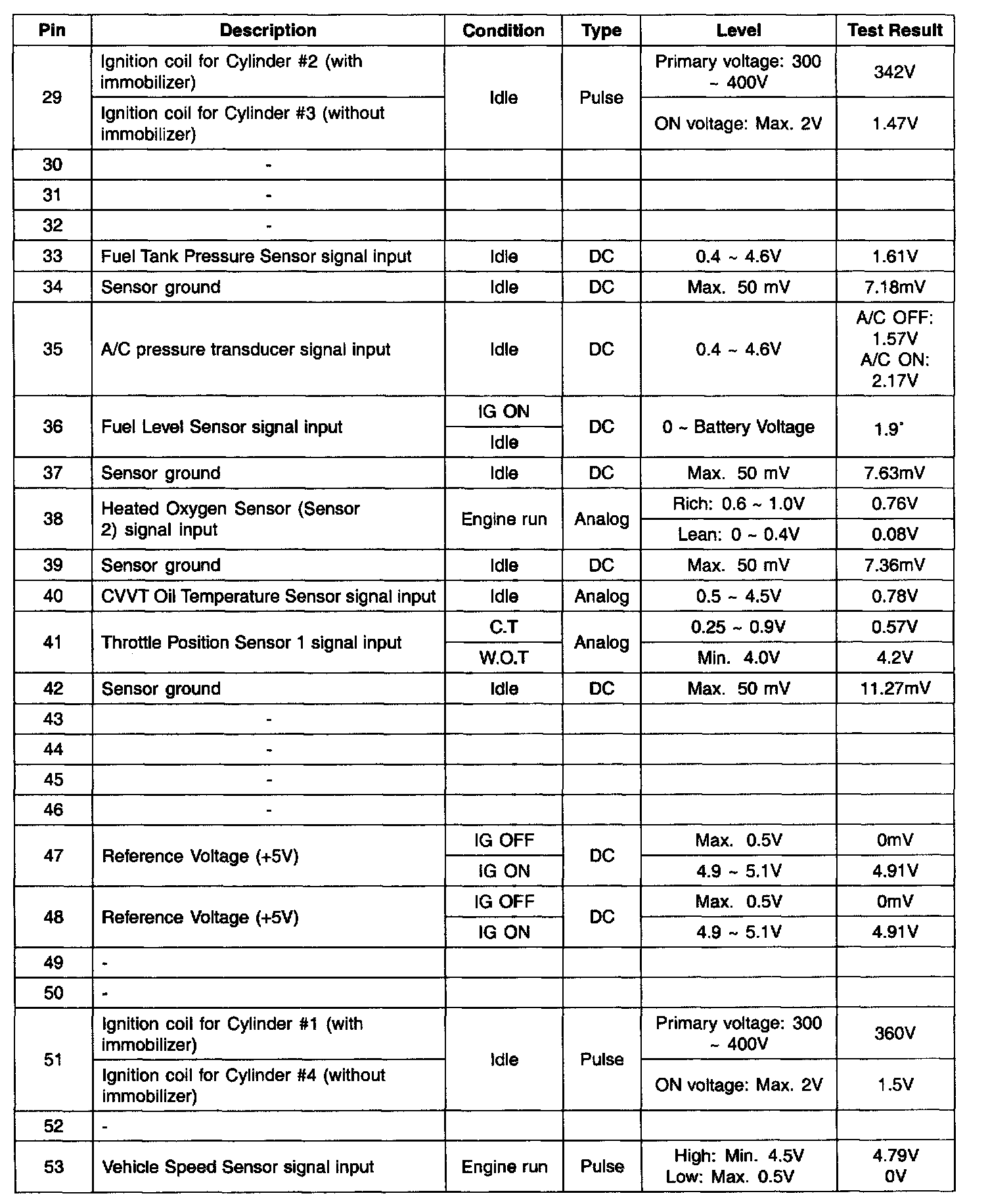

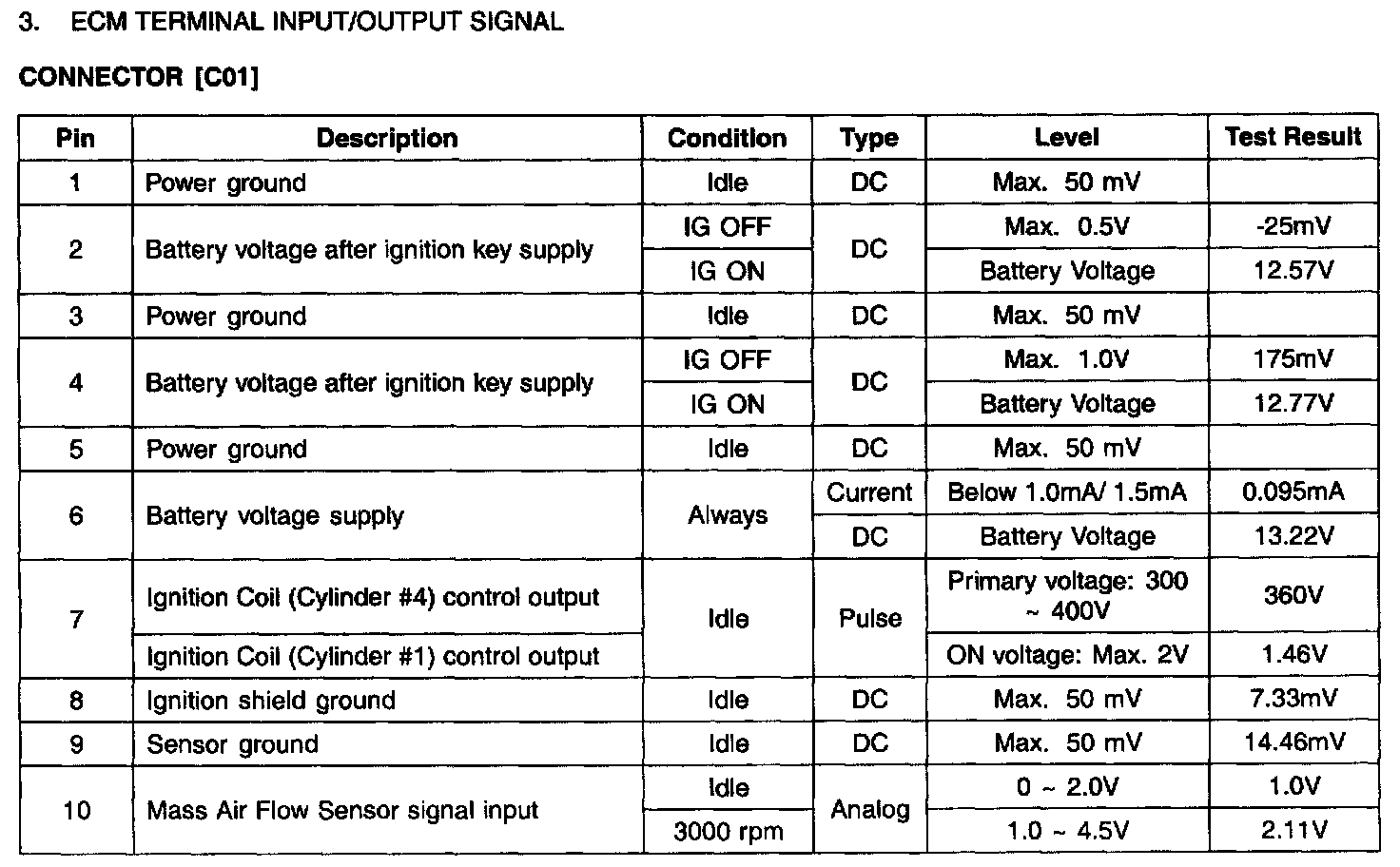

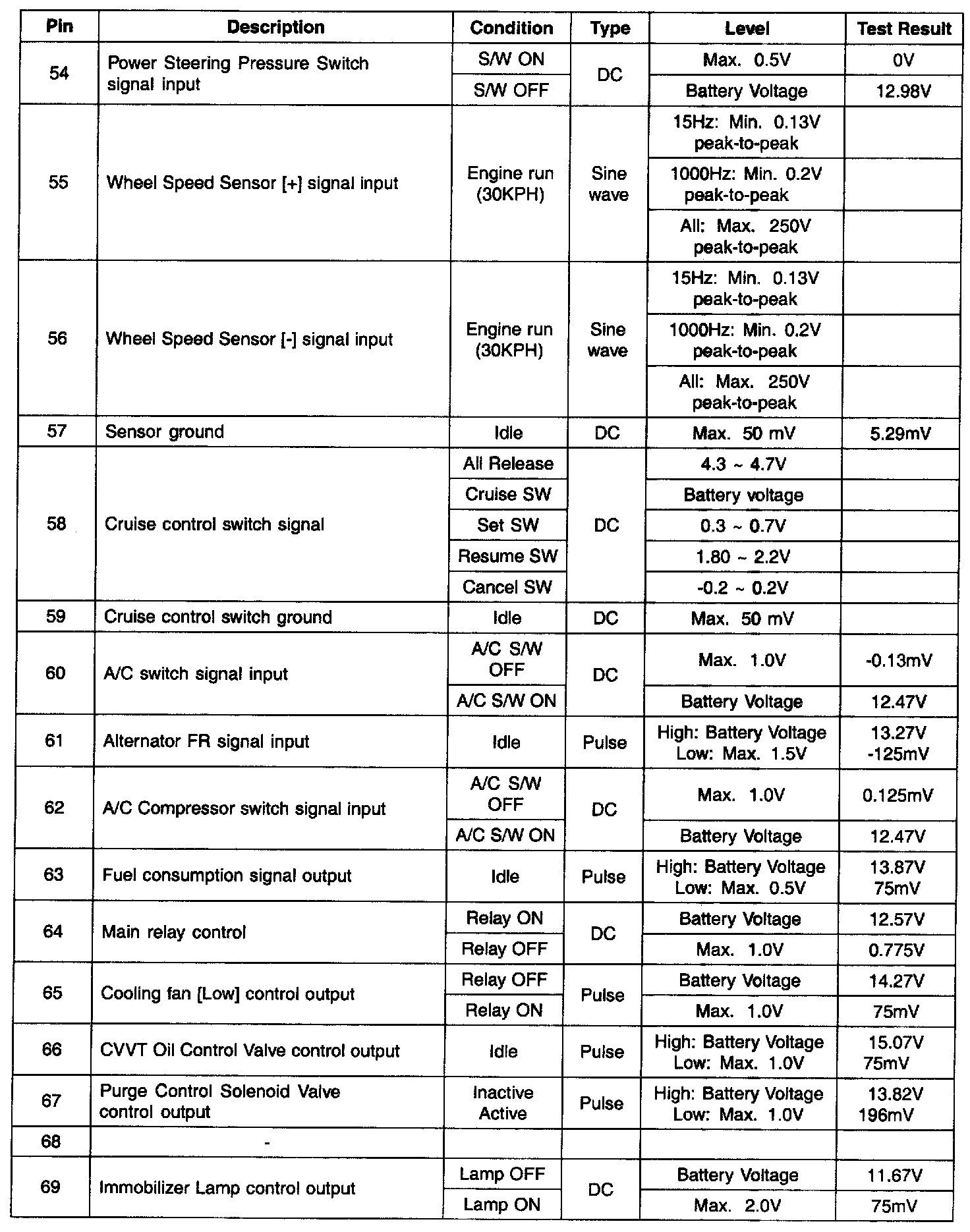

ECM Terminal Input/Output Signal - C01 (Part 1):

ECM Terminal Input/Output Signal - C01 (Part 2):

ECM Terminal Input/Output Signal - C01 (Part 3):

ECM Terminal Input/Output Signal - C01 (Part 4):

ECM Terminal Input/Output Signal - C01 (Part 5):

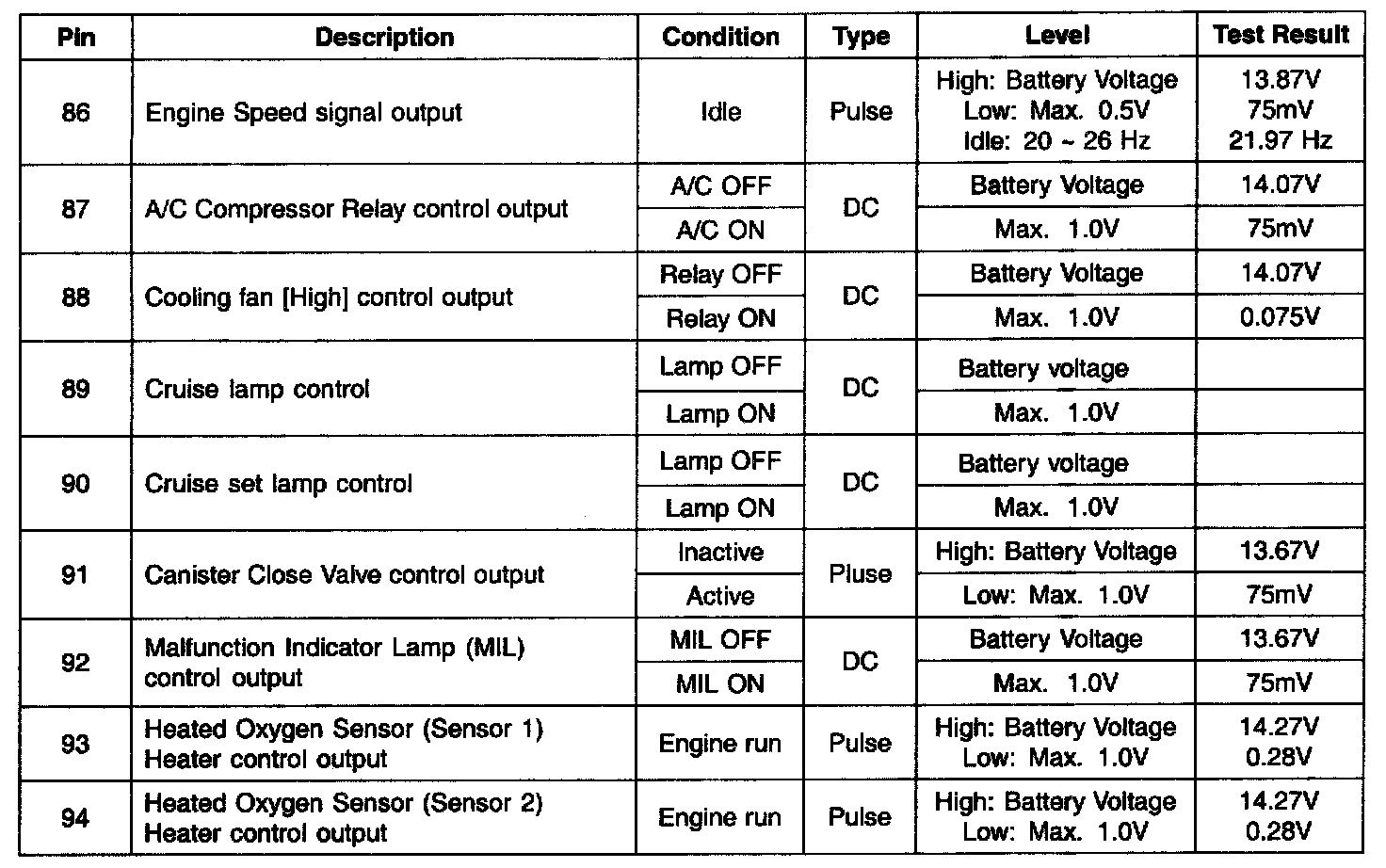

ECM Terminal Input/Output Signal - C01 (Part 6):

ECM Terminal Input/Output Signal - Connector (C01)
