Engine Control Module: Service and Repair

REMOVAL

1. Turn the ignition switch off and disconnect the battery (-) terminal.

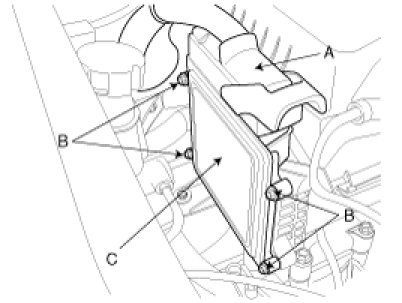

2. Disconnect the ECM connector (A).
3. Unscrew 4 mounting bolts behind the air cleaner.
4. Remove the ECM.
