Engine Control Module

POWERTRAIN CONTROL MODULE (PCM)

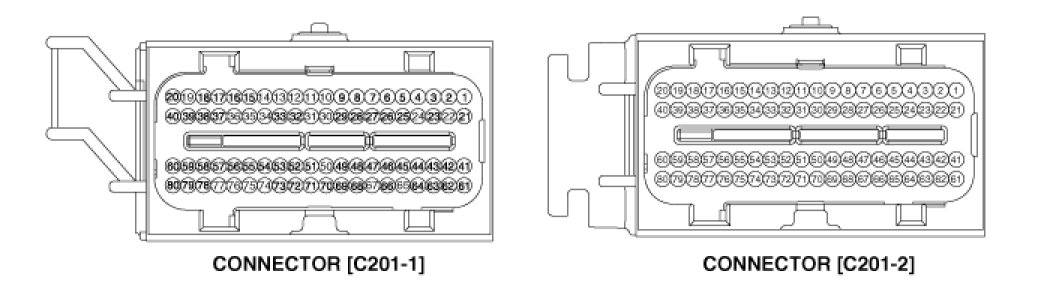

1. HARNESS CONNECTOR

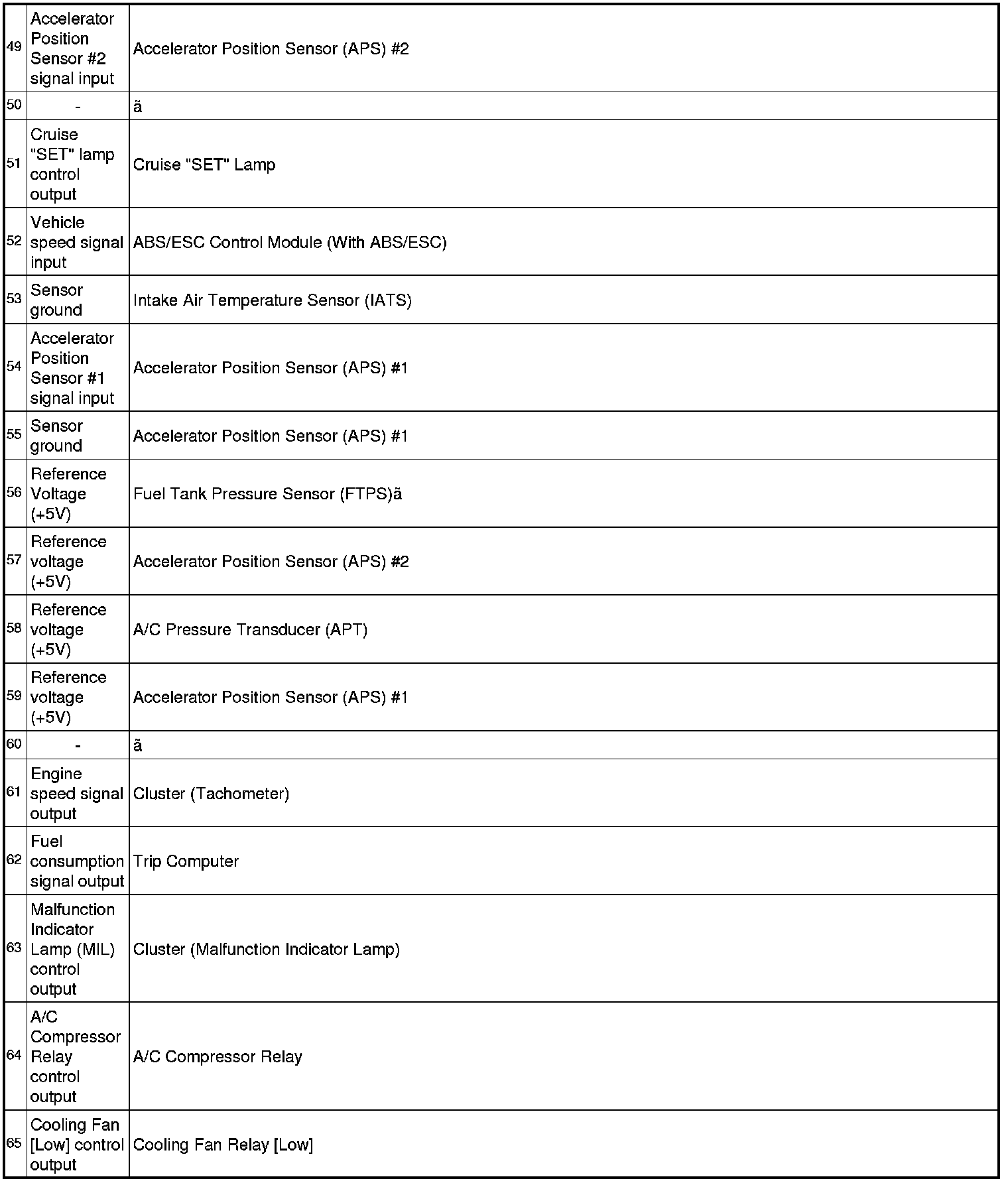

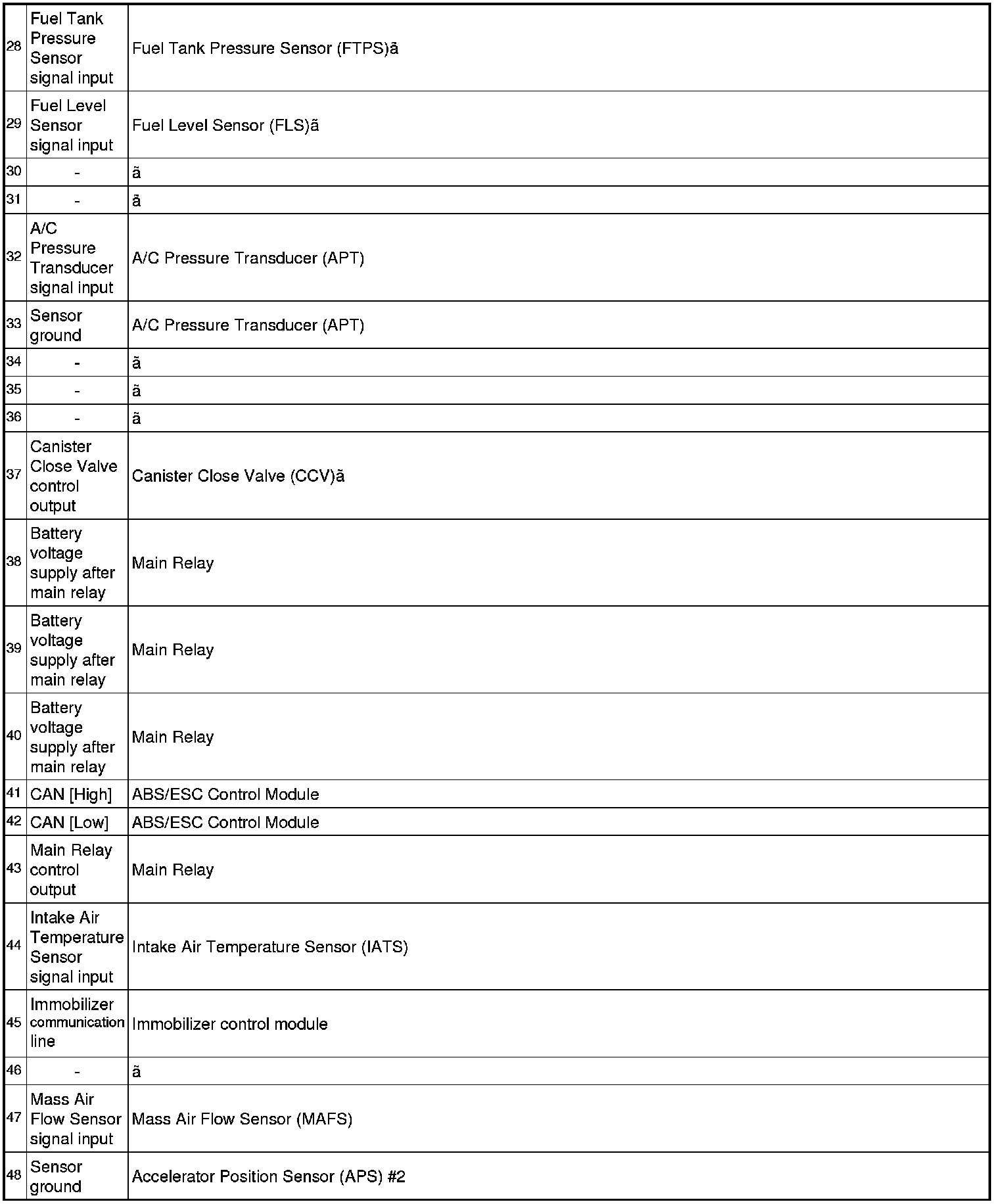

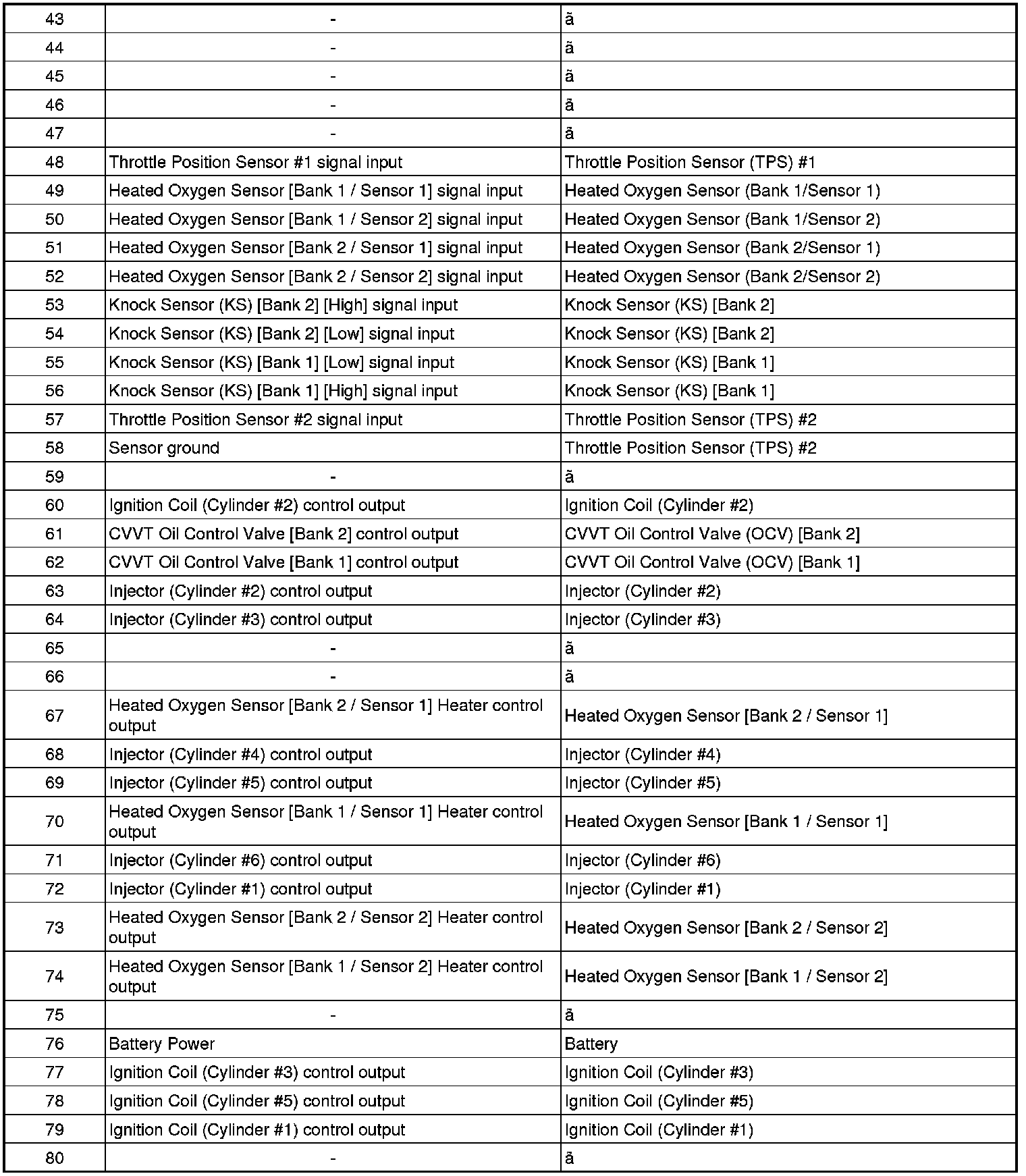

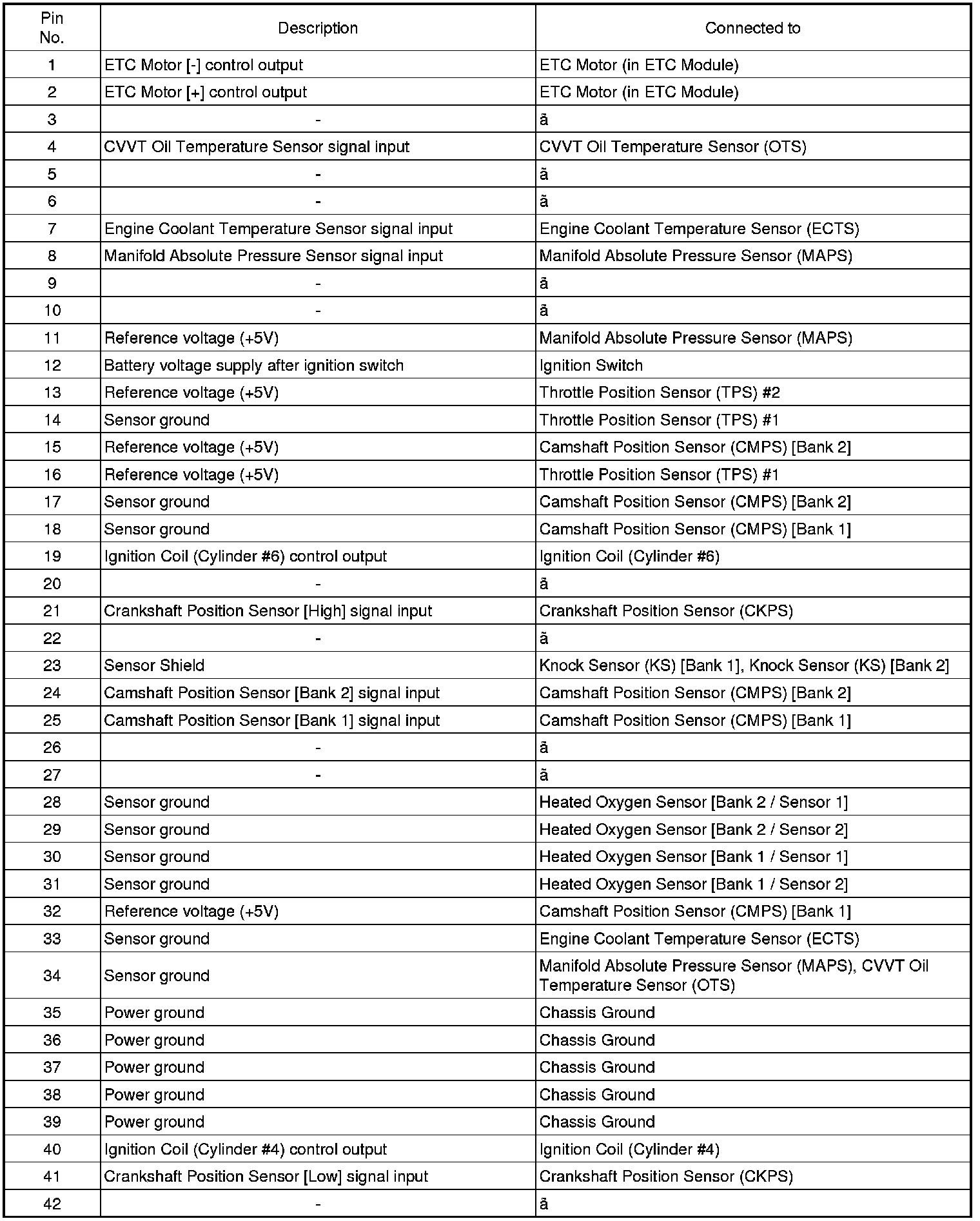

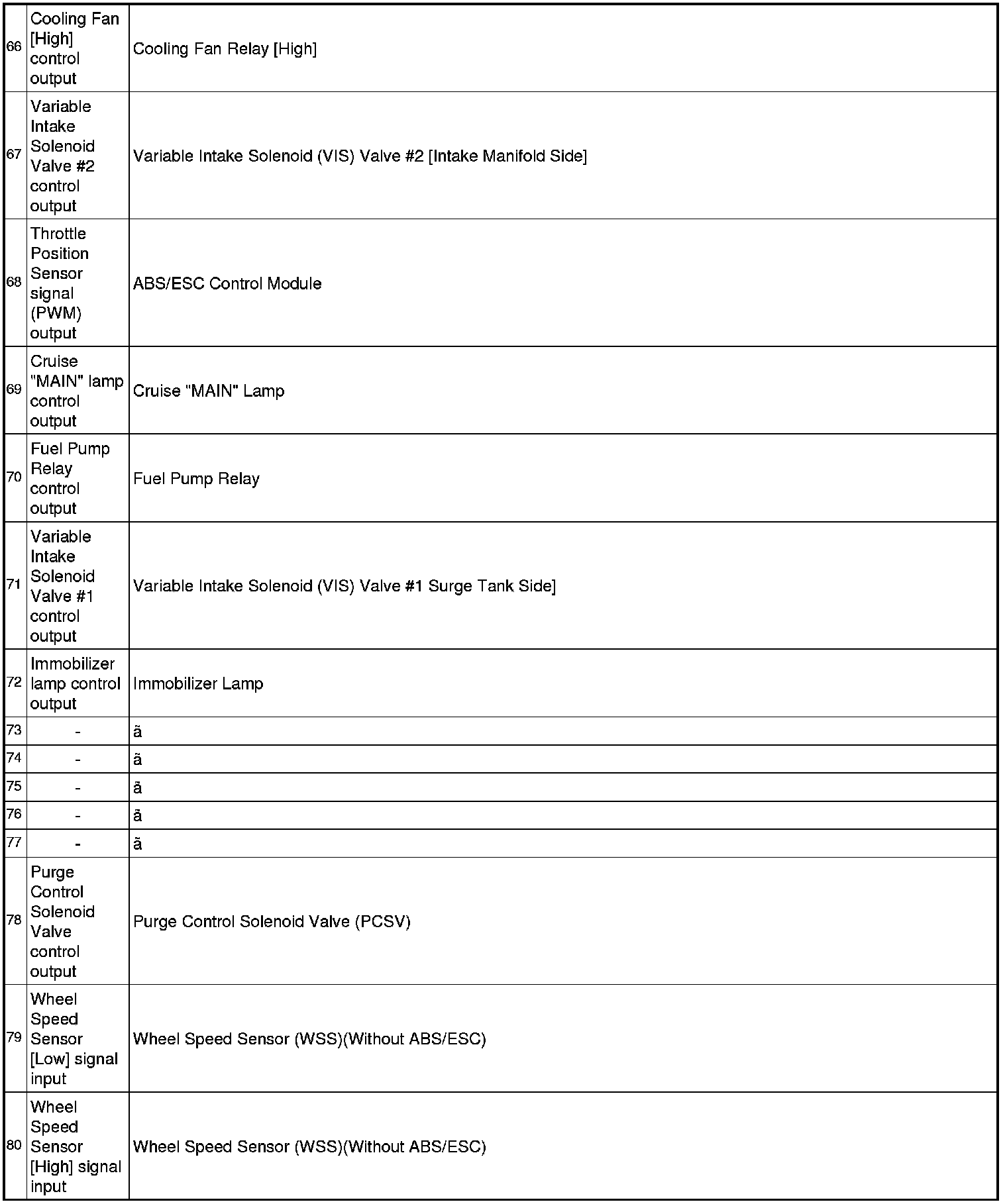

2. TERMINAL FUNCTION

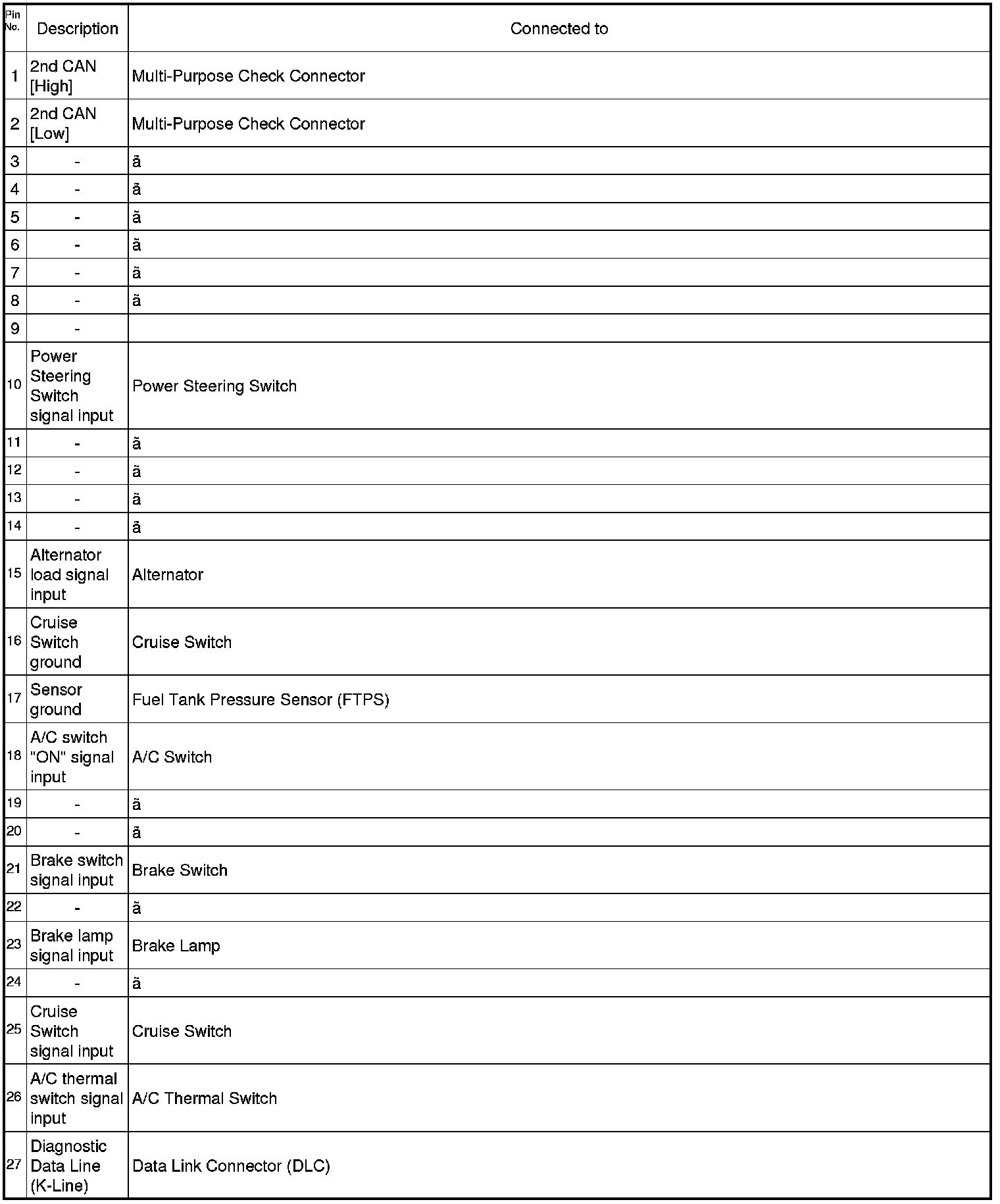

CONNECTOR [C201-1]

















CONNECTOR [C201-2]

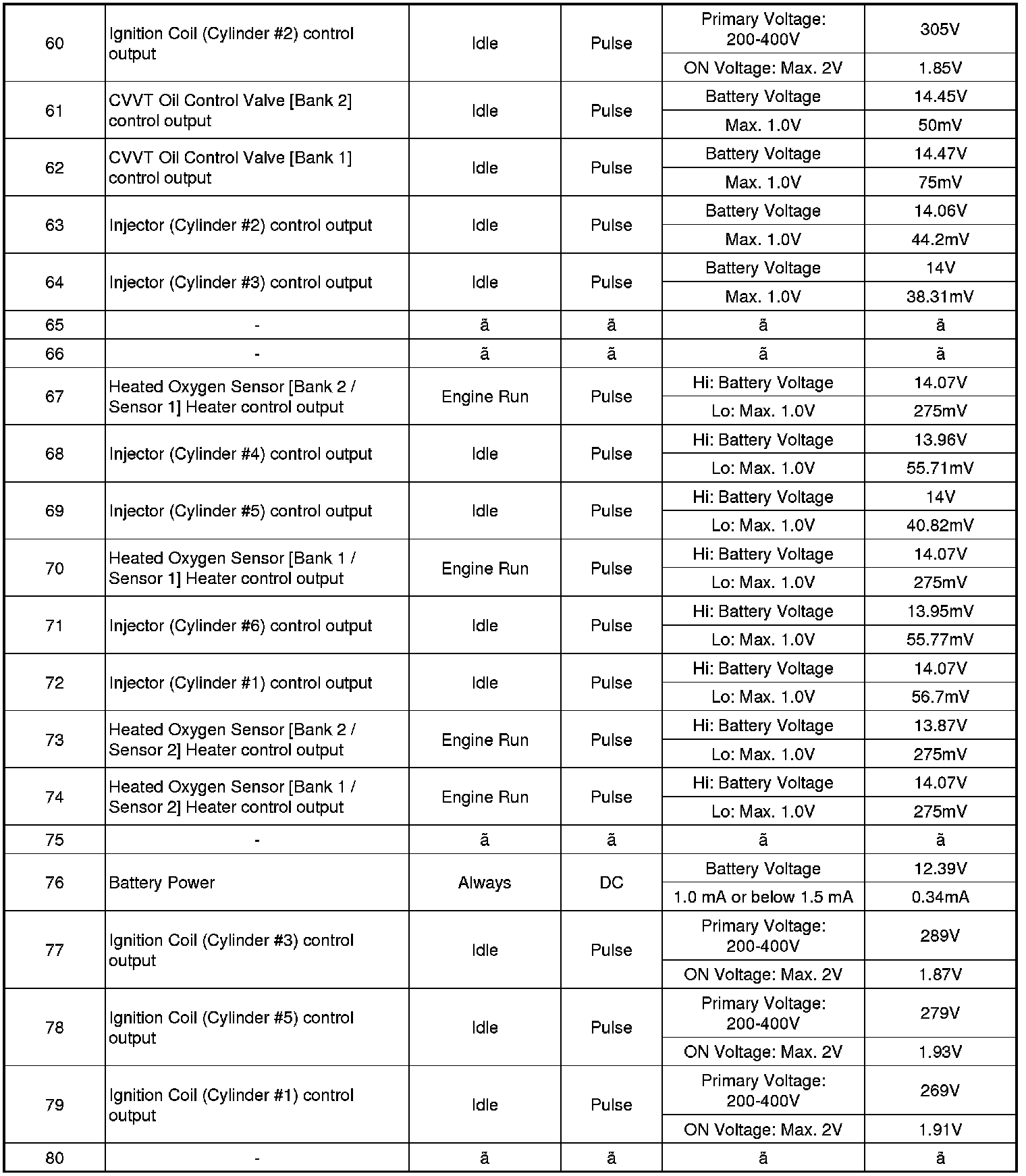

3. TERMINAL INPUT/OUTPUT SIGNAL

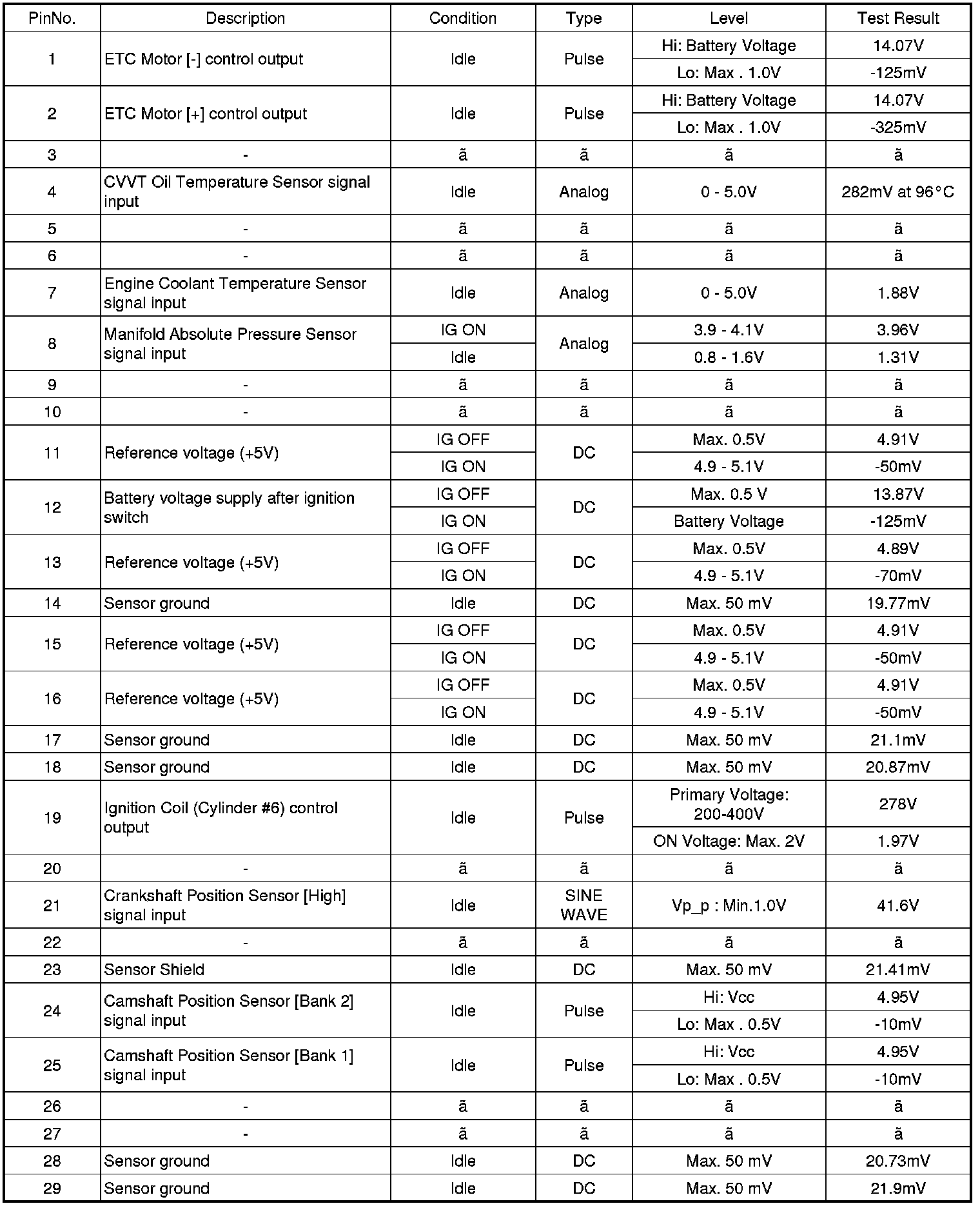

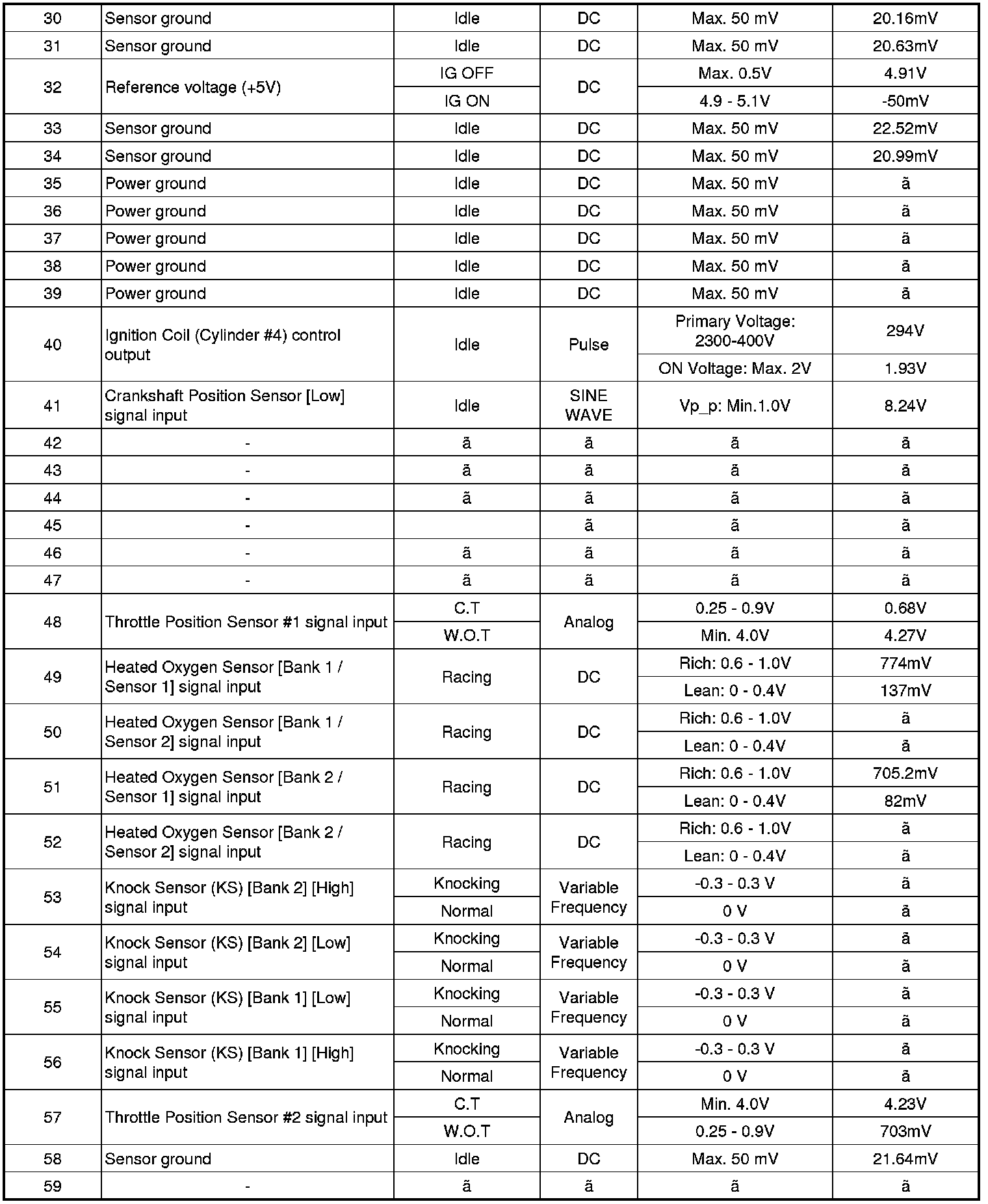

CONNECTOR [C201-1]

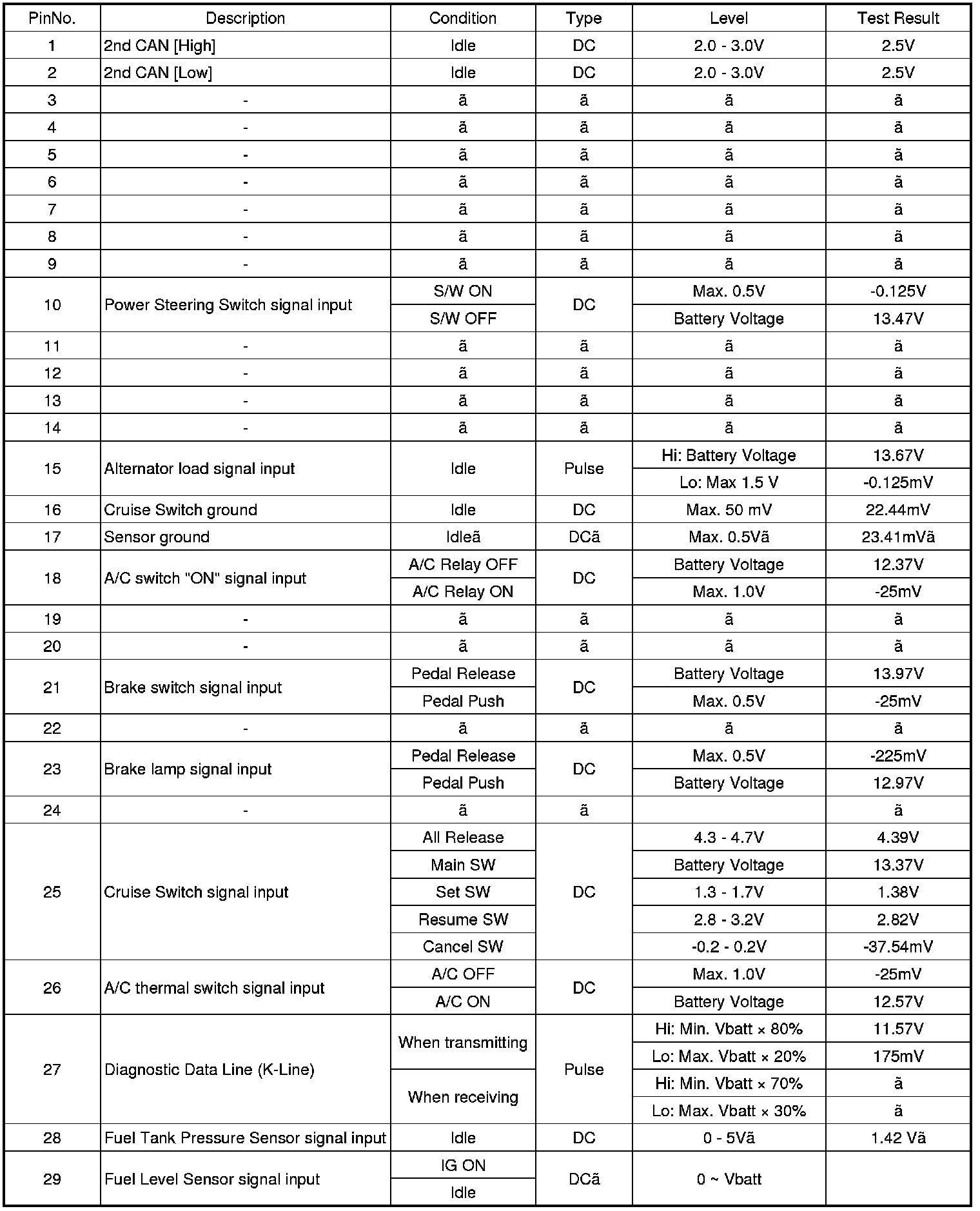

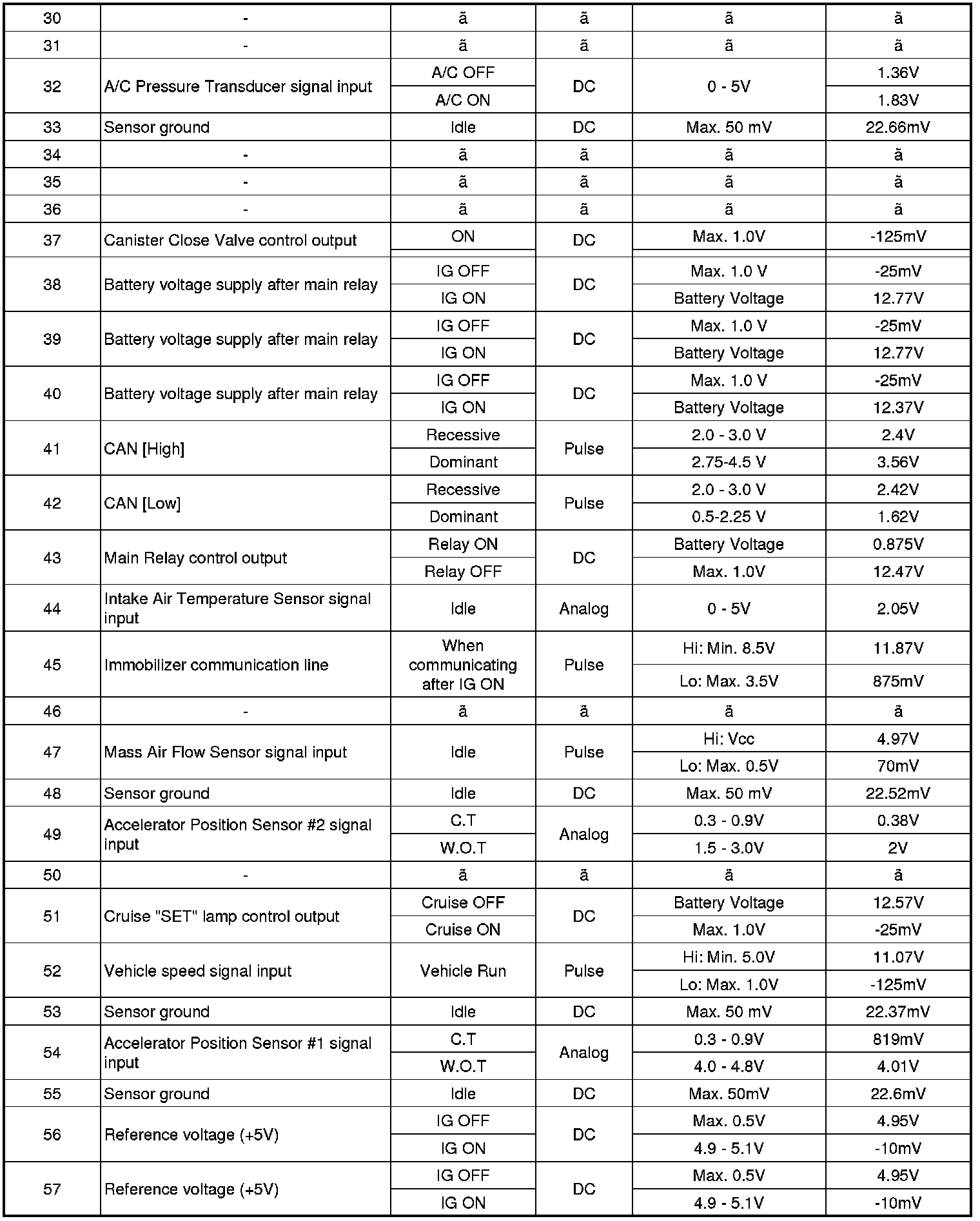

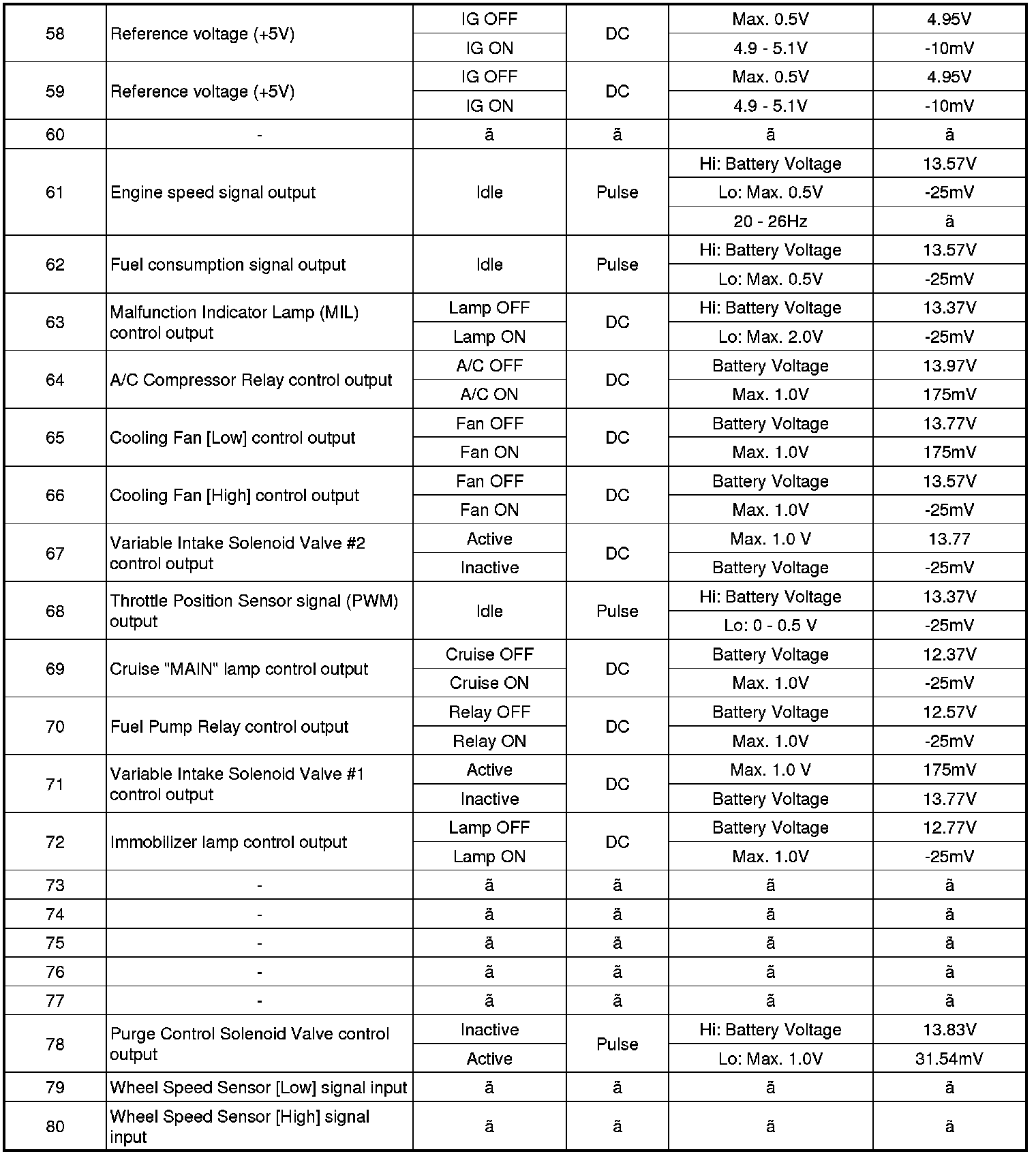

CONNECTOR [C201-2]
