Axle Shaft Assembly




SPECIFICATIONS





NOTE:
Inner: On transaxle side
Outer: On tire side

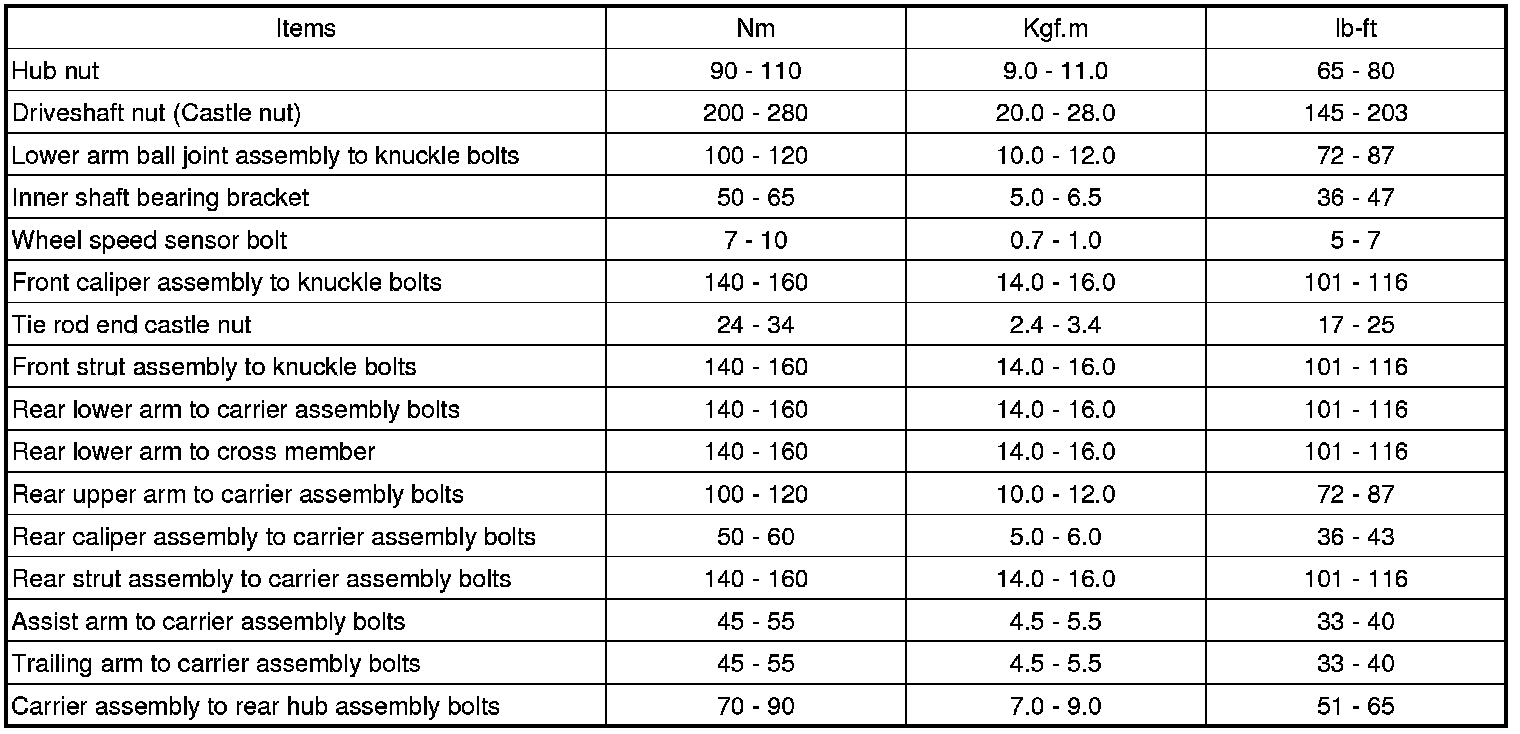

TIGHTENING TORQUE






LUBRICANT
