DTC P2232 O2 Sensor Signal Circuit Shorted To Heater Circuit (Sensor 2): Specification

VOLTAGE SPECIFICATION

A/F Ratio	Output Voltage (V)
RICH	0.6~1.0V
LEAN	0~0.4V

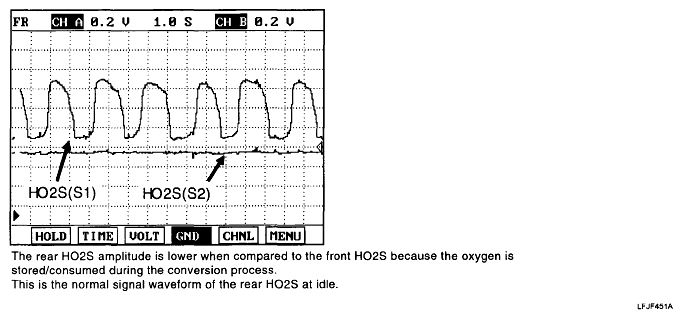

Fig 1: Scan Tool Display - HO2S Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.
