BCM & Receiver

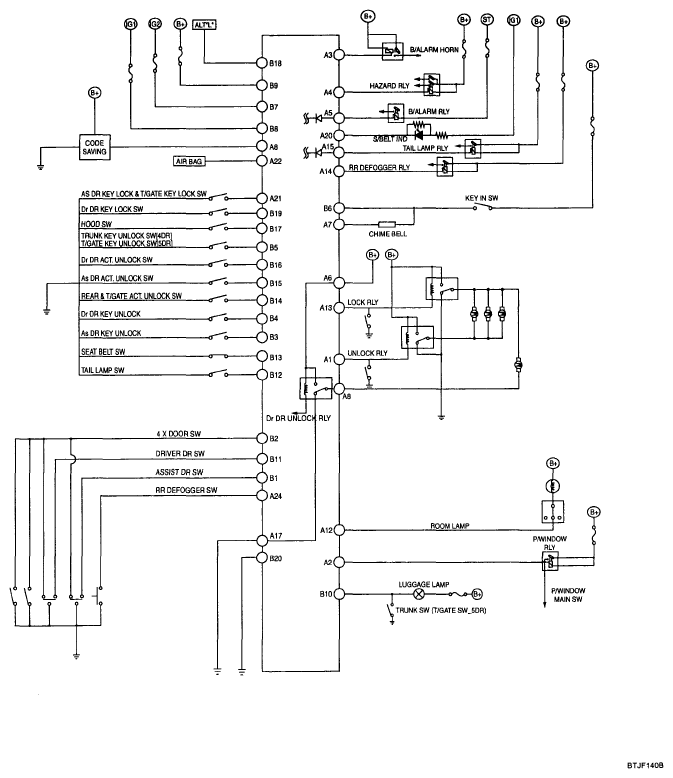

Fig 1: BCM & Receiver Circuit Diagram

G04863578

Courtesy of KIA MOTORS AMERICA, INC.
