Repair and Diagnosis: Electrical: Horns: Replacement

  1. Remove the radiator grill.
  2. Remove the bolt and disconnect the horn connector, then remove the high pitch horn (A).

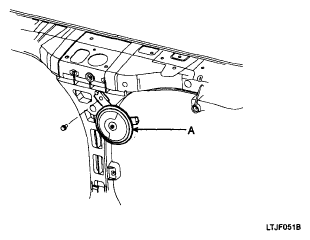

    Fig 1: Identifying High Pitch Horn
    G04863525Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
