Crankcase Emission Control System: Components

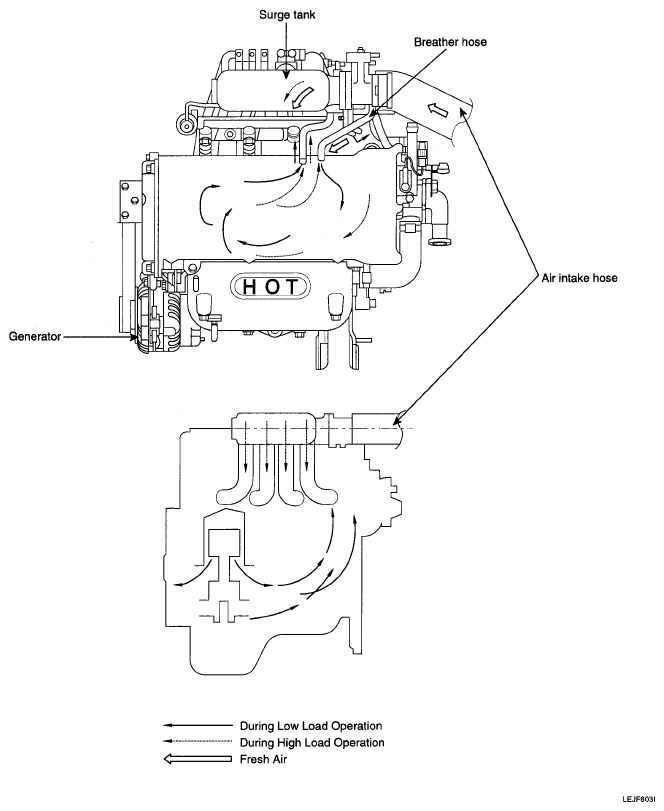

Fig 1: Identifying Crankcase Emission Control System Components
G04861989Courtesy of KIA MOTORS AMERICA, INC.
