Engine And Transaxle Assembly: Component

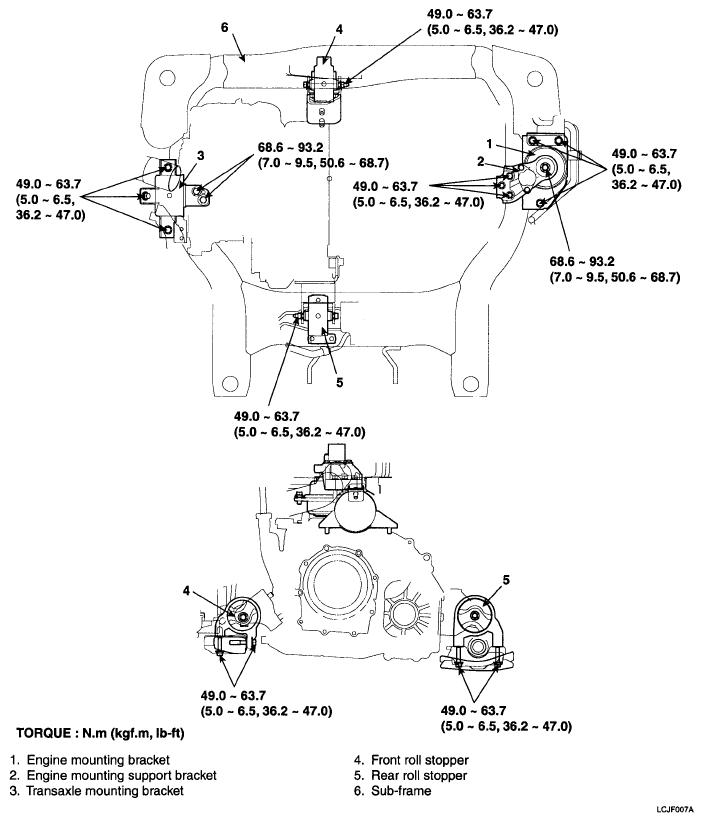

Fig 1: Identifying Engine And Transaxle Assembly Component And Tightening Torque
G04861748Courtesy of KIA MOTORS AMERICA, INC.
