Manual Transaxle System: Differential: Components

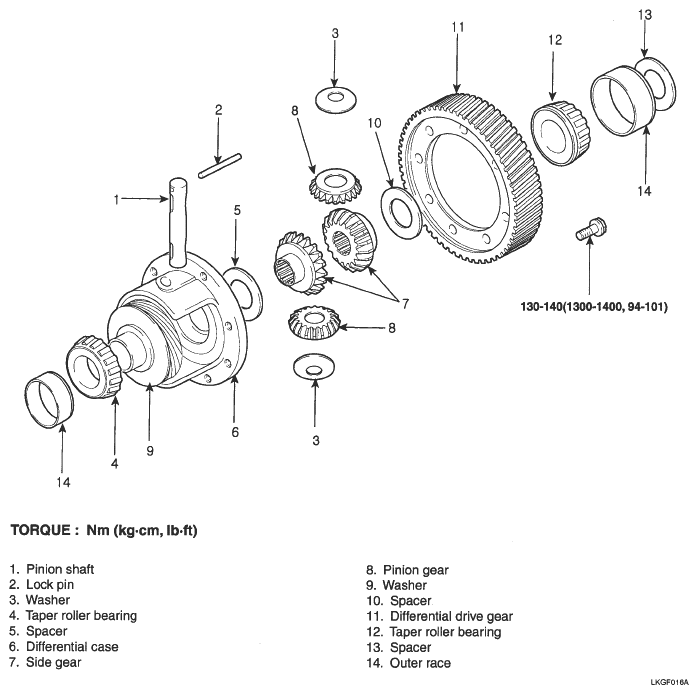

Fig 1: Exploded View Of Differential Components With torque specifications
G04864886Courtesy of KIA MOTORS AMERICA, INC.
