Input Shaft: Components

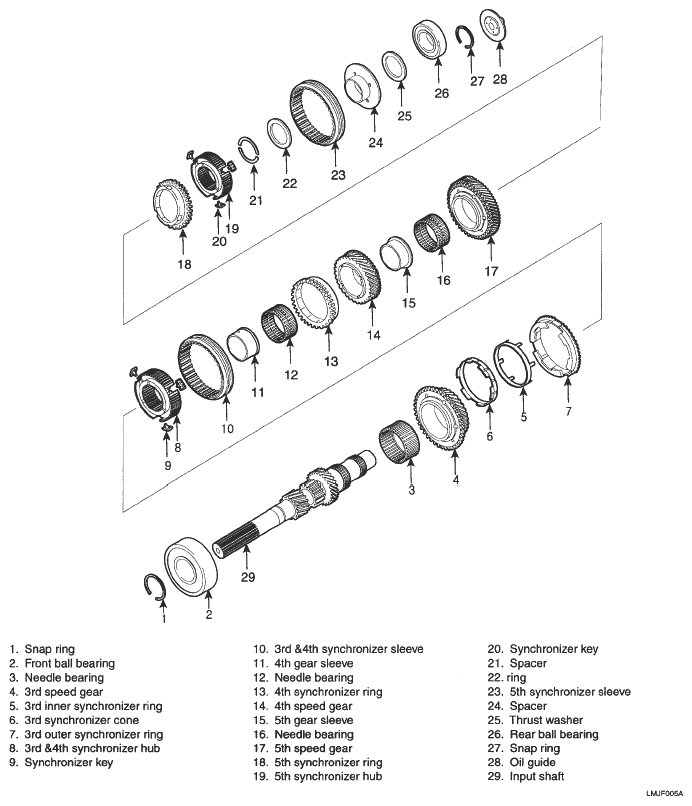

Fig 1: Identifying Input Shaft Components

G04864821

Courtesy of KIA MOTORS AMERICA, INC.
