Shift Fork: Components

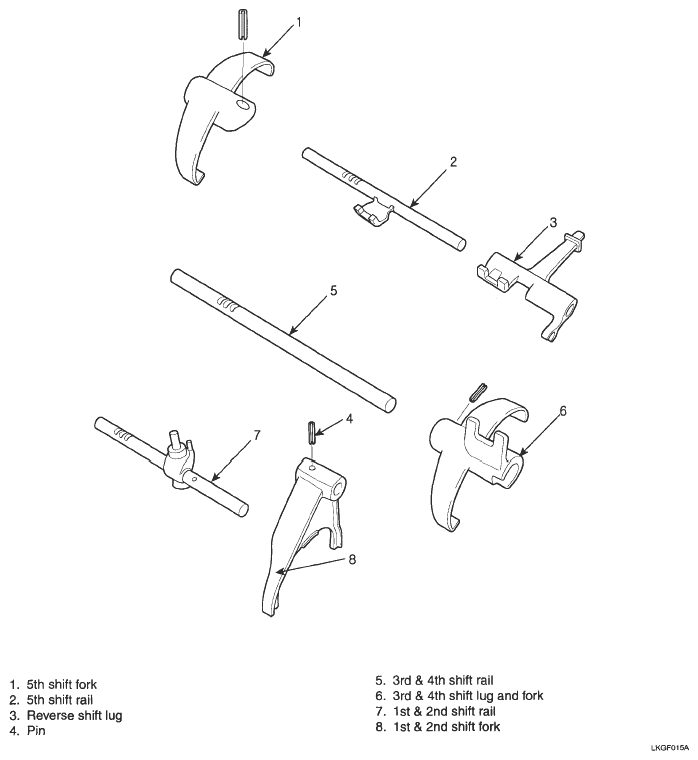

Fig 1: Identifying Shift Fork Components

G04864885

Courtesy of KIA MOTORS AMERICA, INC.
