Front
INSPECTION
FRONT DOOR LOCK SWITCH
1. Remove the front door trim panel.
2. Disconnect the 6P connector from the actuator.

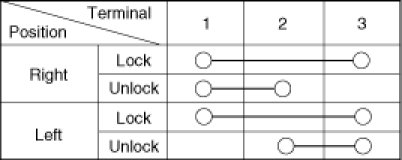

3. Check for continuity between the terminals in each switch position according to the table.
INSPECTION
FRONT DOOR LOCK SWITCH
1. Remove the front door trim panel.
2. Disconnect the 6P connector from the actuator.
3. Check for continuity between the terminals in each switch position according to the table.
