Repair Procedures




REMOVAL

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.
2. Remove ignition key from the vehicle.
3. Disconnect the DAB, PAB, SAB, CAB and BPT connectors.
4. Remove the floor console.

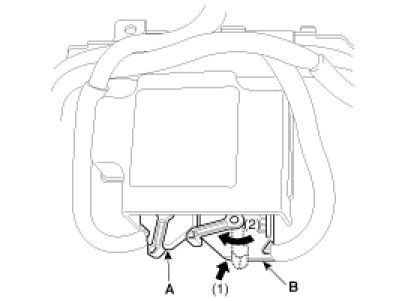

5. Press the lock(1), then pull back the connector lever(2) until it clicks.

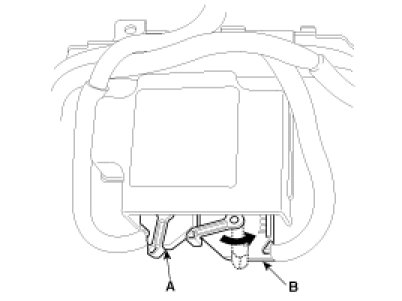

6. Disconnect the SRSCM harness connector(A) and (B) from the SRSCM.
7. Remove the SRSCM mounting bolts (3EA) from the SRSCM, then remove the SRSCM.






INSTALLATION

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.
2. Remove ignition key from the vehicle.
3. Install the SRSCM with the SRSCM mounting bolts.

Tightening Torque (SRSCM Mounting Bolt): 1.0 - 1.4 kgf.m (9.5 - 13.5 Nm, 7.0 - 10.0 lb.ft)

4. Connect the SRSCM harness connector.




5. Install the floor console.
6. Connect the DAB, PAB, SAB, CAB and BPT connectors.
7. Reconnect the battery negative cable.
8. After installing the SRSCM, confirm proper system operation:
A. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
