Check The Power Source Of Abs Control Module

  1. Disconnect the connector from the ABS control module.
  2. Turn the ignition switch ON, measure the voltage between terminal 4 of the ABS control module harness side connector and body ground.

    Specification : approximately B+

    Is voltage within specification?

    YES

    • Check for poor ground.

    NO

    • Check the harness or connector between the fuse (10A) in the engine compartment junction block and the ABS control module. Repair if necessary.

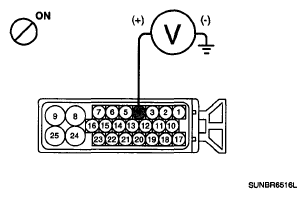

      Fig 1: Measuring Voltage Between Terminal 4
      G05187498Courtesy of KIA MOTORS AMERICA, INC.
