Input And Output Diagram

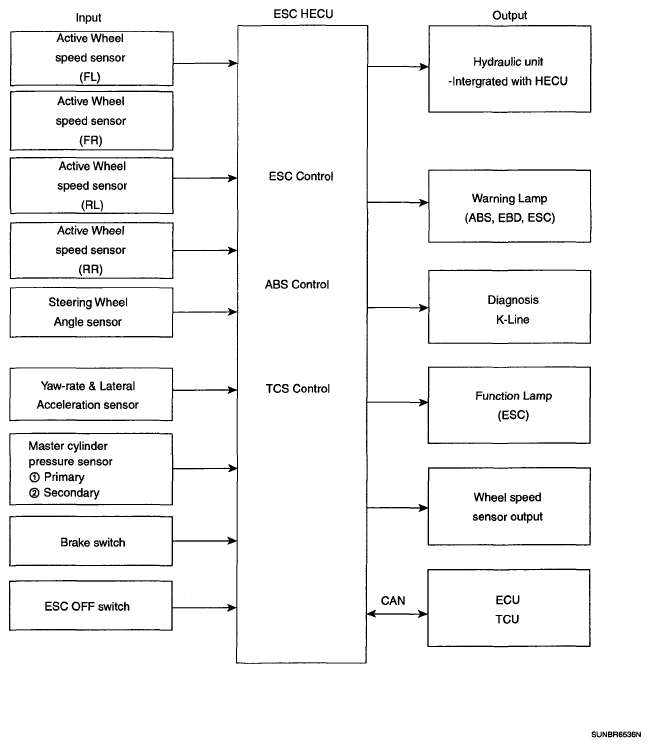

Fig 1: Input And Output Diagram

G05187629

Courtesy of KIA MOTORS AMERICA, INC.
