Audio Unit: Components

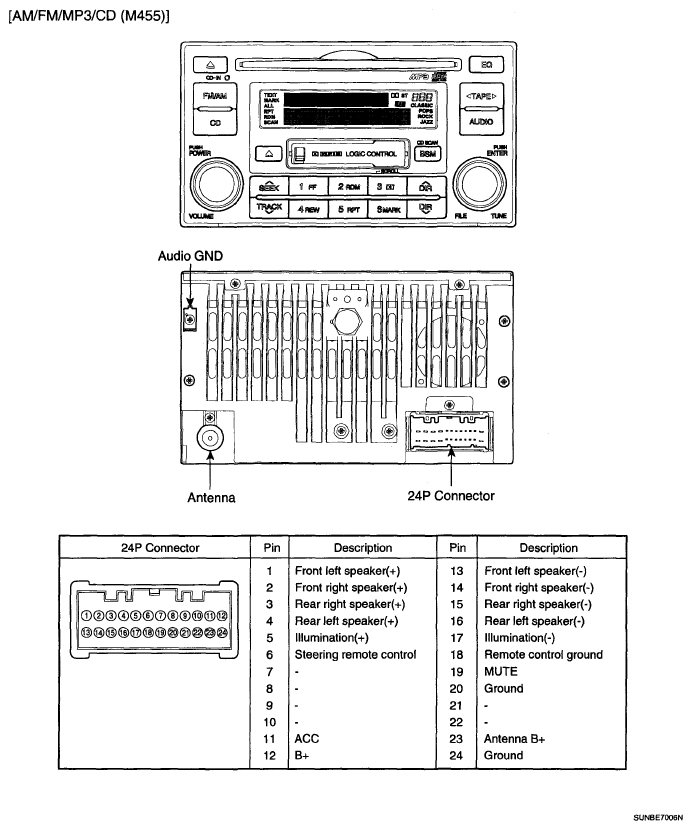

Fig 1: Identifying Audio Unit Components - M455 (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

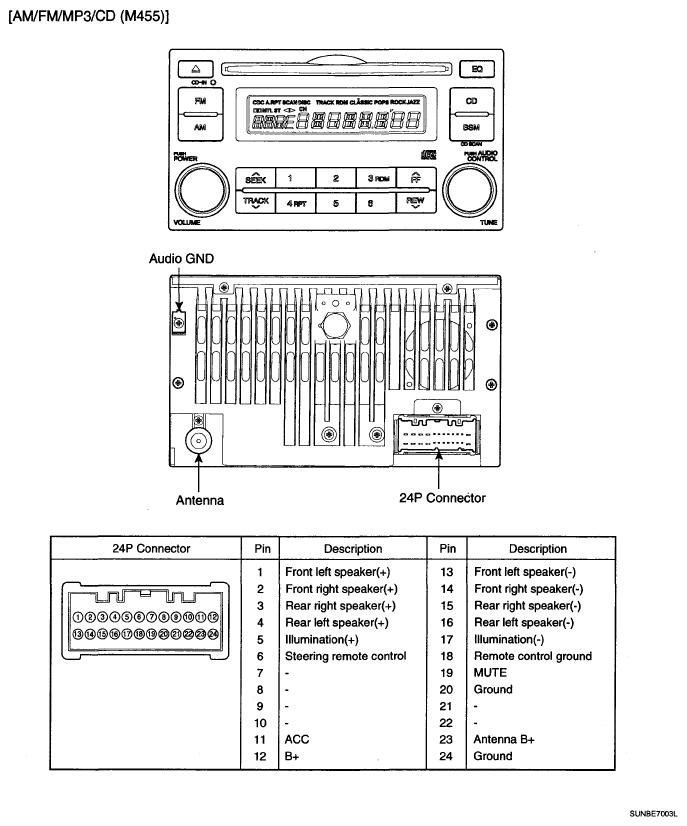

Fig 2: Identifying Audio Unit Components - M455 (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

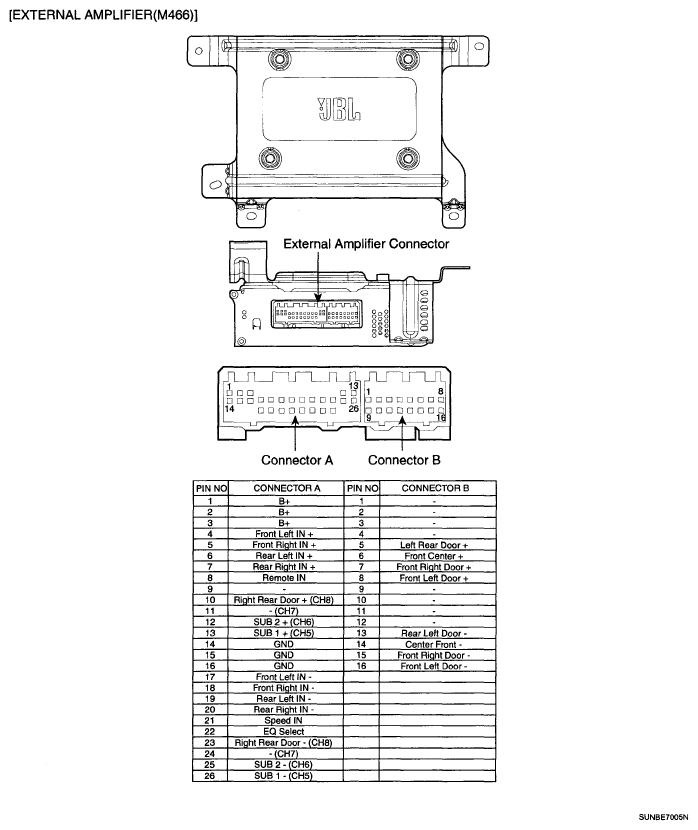

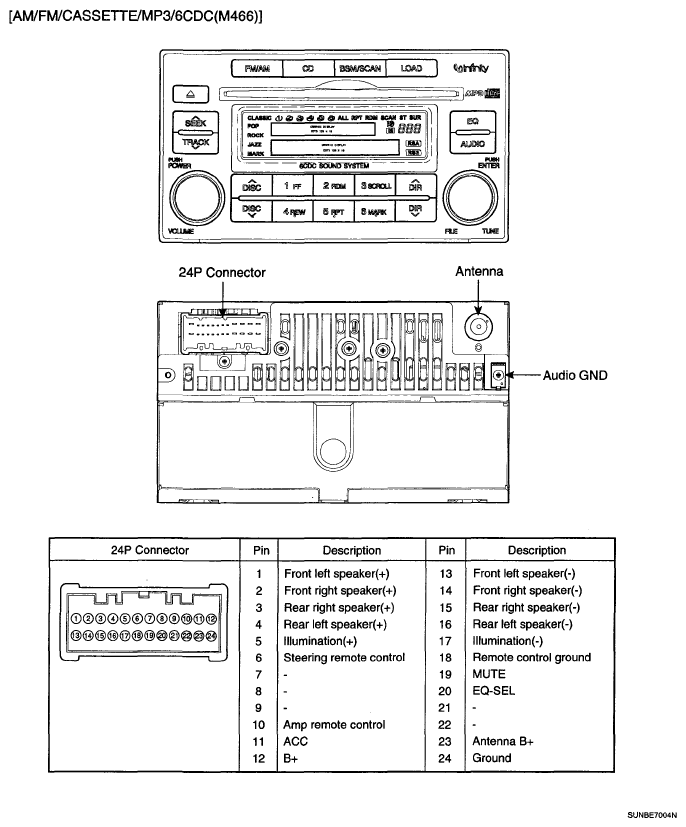

Fig 3: Identifying Audio Unit Components - M466 (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Identifying Audio Unit Components - M466 (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
