Chart 7
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Chart 7

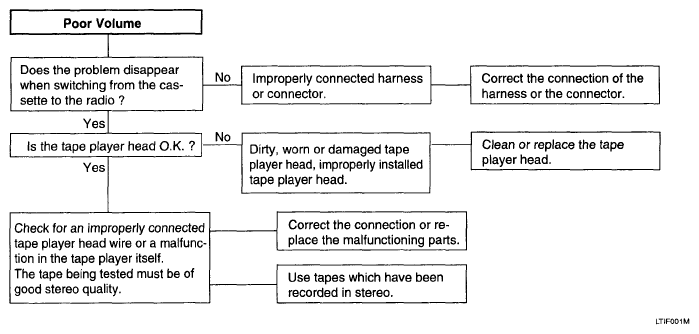

Fig 1: Problem Occur Areas Flow Chart 7
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
