Immobilizer Control Unit: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver crash pad lower panel (A) after removing side cover. (Refer to the "CRASH PAD ").

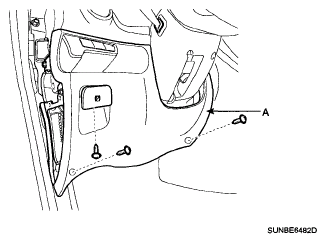

    Fig 1: Identifying Driver Crash Pad Lower Panel
    G05188093Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the shroud (A) after removing the fixed screws (3EA).

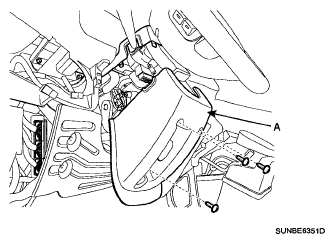

    Fig 2: Identifying Shroud
    G05188094Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a nut.

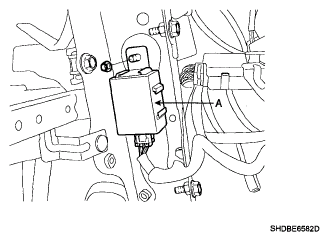

    Fig 3: Identifying SMARTRA Unit
    G05188095Courtesy of KIA MOTORS AMERICA, INC.
