Transmitter Code Registration

Connect the DLC cable of scan tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on scan tool.

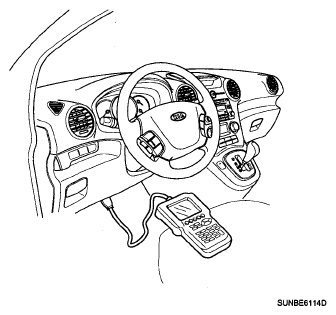

Fig 1: Connecting DLC Cable Of Scan Tool To Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "CODE SAVING".

Fig 2: Scan Tool Display - CODE SAVING
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "CODE SAVING" menu, push "ENTER" key, then the screen will be shown as below.

Fig 3: Scan Tool Display - TRANSMITTER CODE SAVING
Courtesy of KIA MOTORS AMERICA, INC.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

Fig 4: Scan Tool Display - TRANSMITTER CODE SAVING (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scan Tool Display - TRANSMITTER CODE SAVING (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scan Tool Display - TRANSMITTER CODE SAVING (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Scan Tool Display - TRANSMITTER CODE SAVING (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
