Multi Function Switch: Component

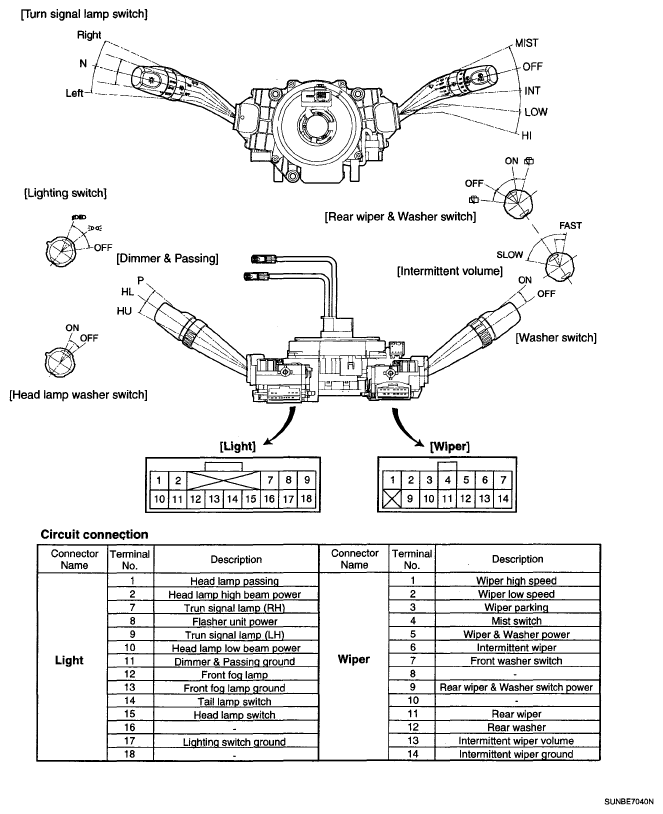

Fig 1: Identifying Multi Function Switch Component

G05187703

Courtesy of KIA MOTORS AMERICA, INC.
