Wiper Switch

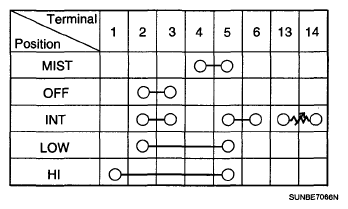

Fig 1: Wiper Switch Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
