Multi Function Switch: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

    (Refer to STEERING COLUMN AND SHAFT ).

    Fig 1: Identifying Steering Column Upper, Lower Shrouds And Screws
    G05187713Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the light switch (A) by pushing the lock pin (B) after disconnecting the connector.

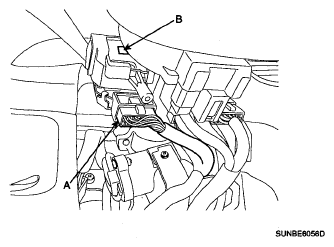

    Fig 2: Identifying Light Switch And Connector
    G05187714Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the wiper switch (A) by pushing the lock pin (B) after disconnecting the connector.

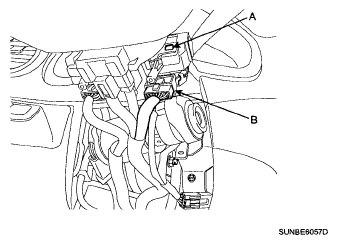

    Fig 3: Identifying Wiper Switch And Connector
    G05187715Courtesy of KIA MOTORS AMERICA, INC.
