Rear Power Window Switch

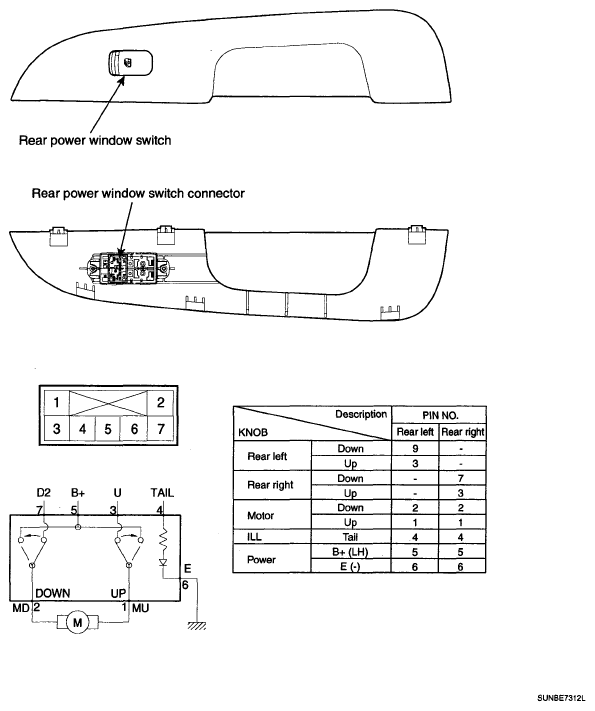

Fig 1: Identifying Rear Power Window Switch Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
