Power Window Main Switch Inspection

1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim. (Refer to the FRONT DOOR )
3. Disconnect the 16P connector from the switch.

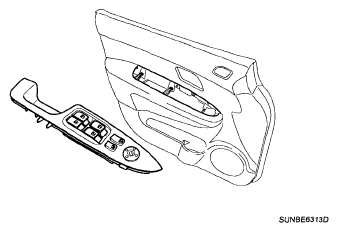

   Fig 1: Identifying Power Window Main Switch

   Courtesy of KIA MOTORS AMERICA, INC.
4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

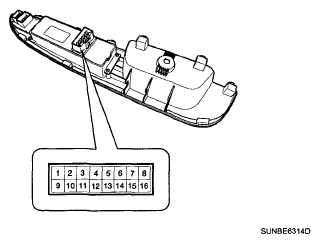

   Fig 2: Identifying Power Window Main Switch Connector Terminals

   Courtesy of KIA MOTORS AMERICA, INC.

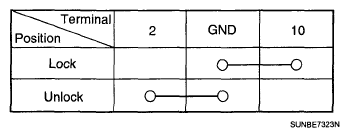

   Fig 3: Power Window Main Switch Connector Terminals Continuity Chart

   Courtesy of KIA MOTORS AMERICA, INC.

[AUTO UP/DOWN WINDOW]

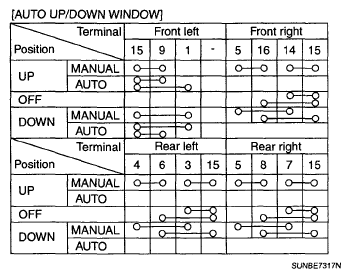

Fig 4: Power Window Main Switch Connector Terminals Continuity Chart - AUTO UP/DOWN WINDOW

Courtesy of KIA MOTORS AMERICA, INC.
