Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver's door.

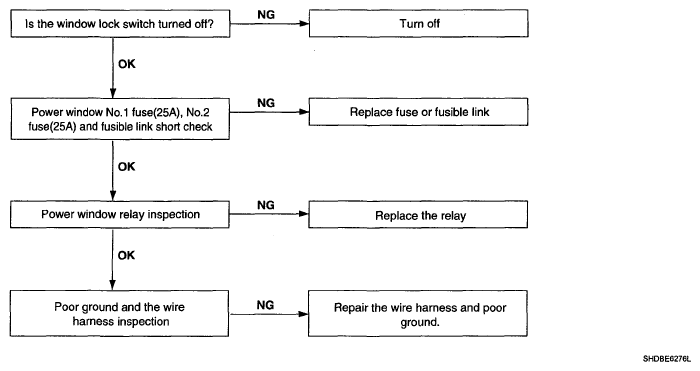

    Fig 1: Troubleshooting Flow Chart - No Windows Operate From Main Switch On Driver's Door
    G05187904Courtesy of KIA MOTORS AMERICA, INC.
  2. Driver's side window does not operate.

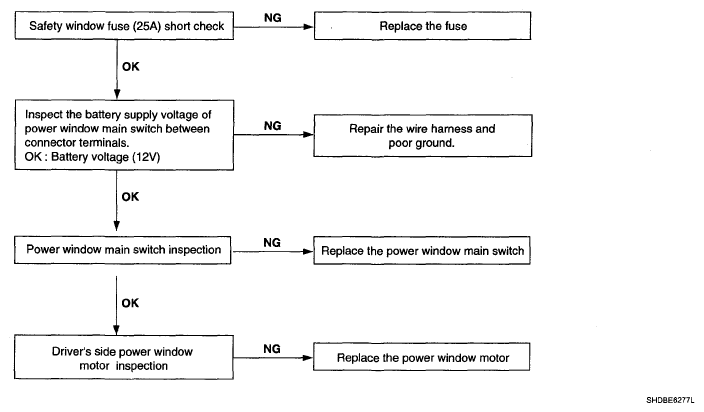

    Fig 2: Troubleshooting Flow Chart - Driver's Side Window Does Not Operate
    G05187905Courtesy of KIA MOTORS AMERICA, INC.
  3. Passenger's side window does not operate.

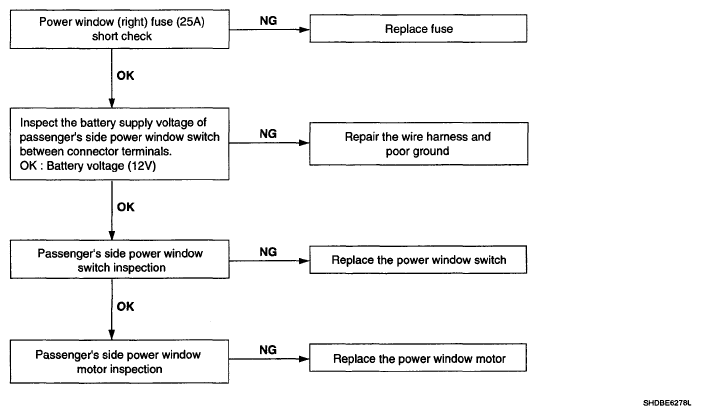

    Fig 3: Troubleshooting Flow Chart - Passenger's Side Window Does Not Operate
    G05187906Courtesy of KIA MOTORS AMERICA, INC.
