Rear Window Defogger Switch: Inspection

Disconnect the negative (-) battery terminal.
Remove the center fascia panel (A) and the front console under cover. Take care not to damage fixing clips. (Refer to the CRASH PAD )

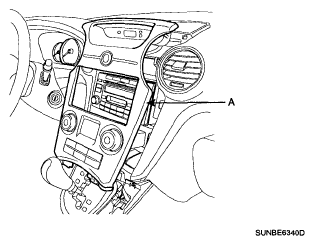

Fig 1: Identifying Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect connectors.
Remove the A/C control panel (A) after loosening 4 screws.

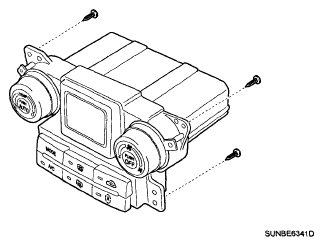

Fig 2: Identifying A/C Control Panel Screws
Courtesy of KIA MOTORS AMERICA, INC.
Using an ohmmeter, inspect the continuity between the terminals.

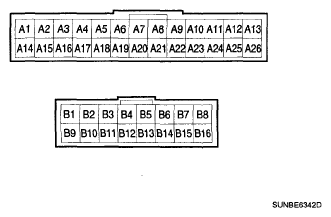

Fig 3: Identifying Rear Window Defogger Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

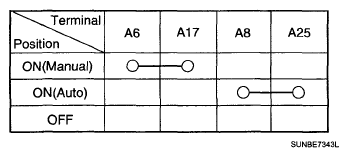

Fig 4: Rear Window Defogger Switch Connector Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
