Component Location

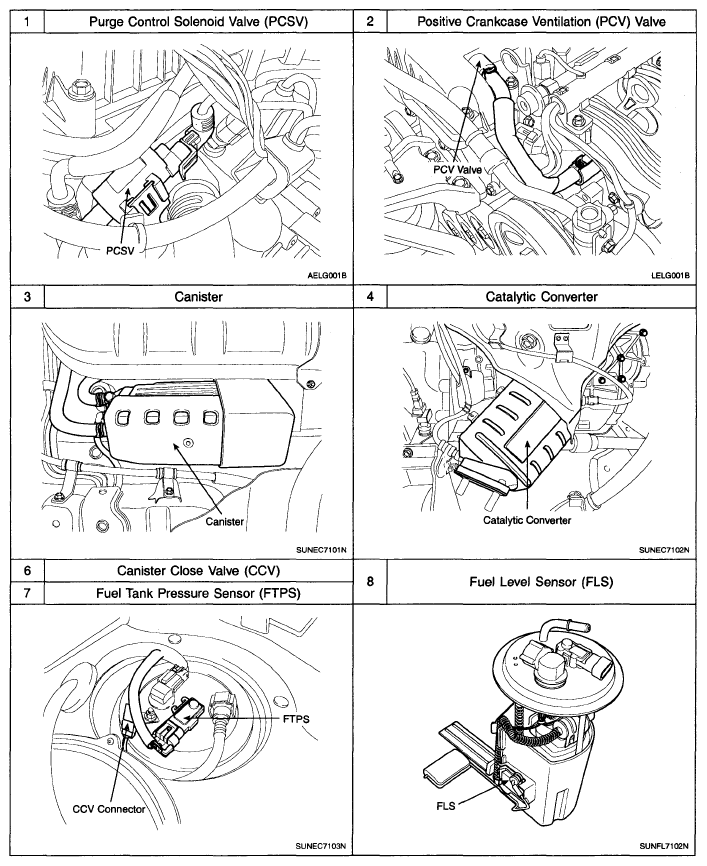

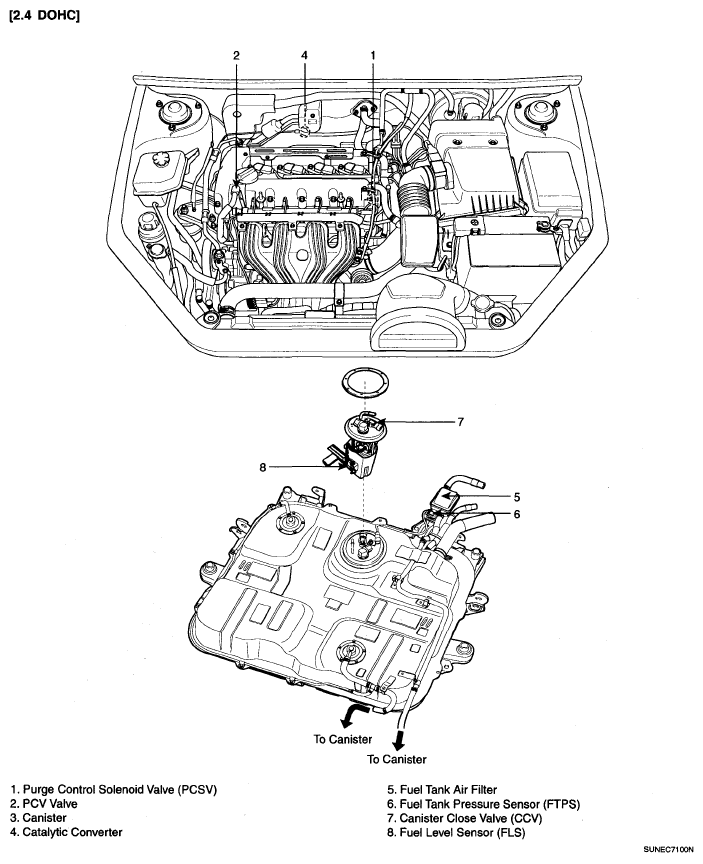

Fig 1: Identifying Emissions Control Component Locations - 2.4 DOHC (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

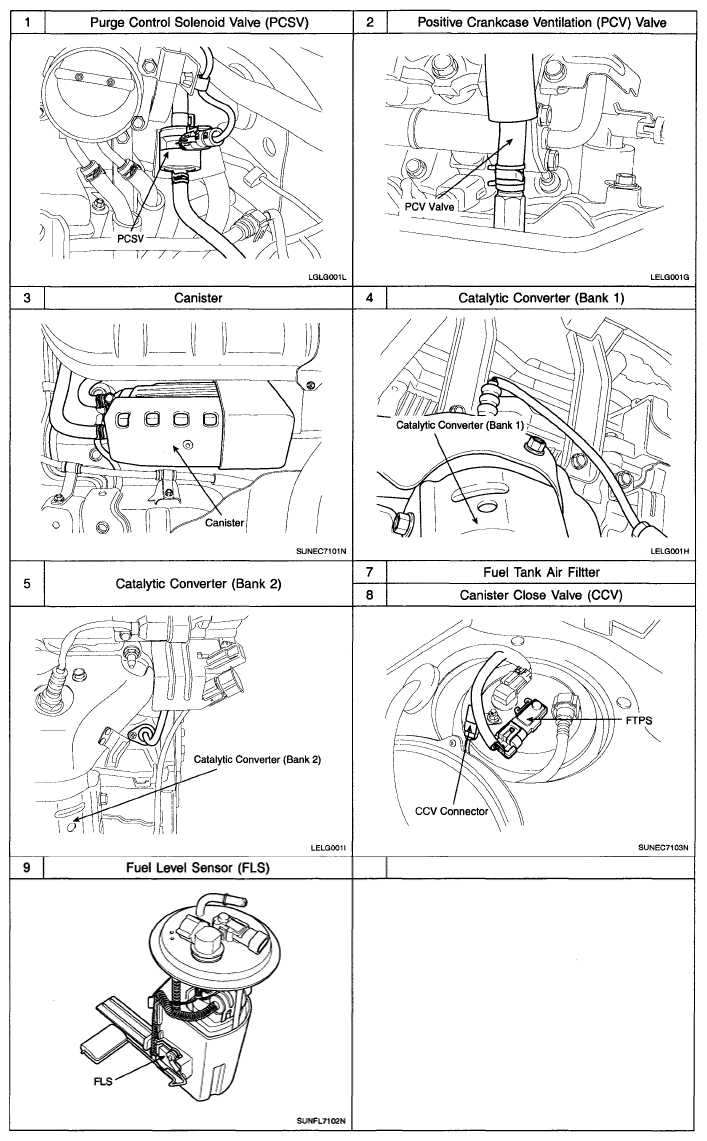

Fig 2: Identifying Emissions Control Component Locations - 2.4 DOHC (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

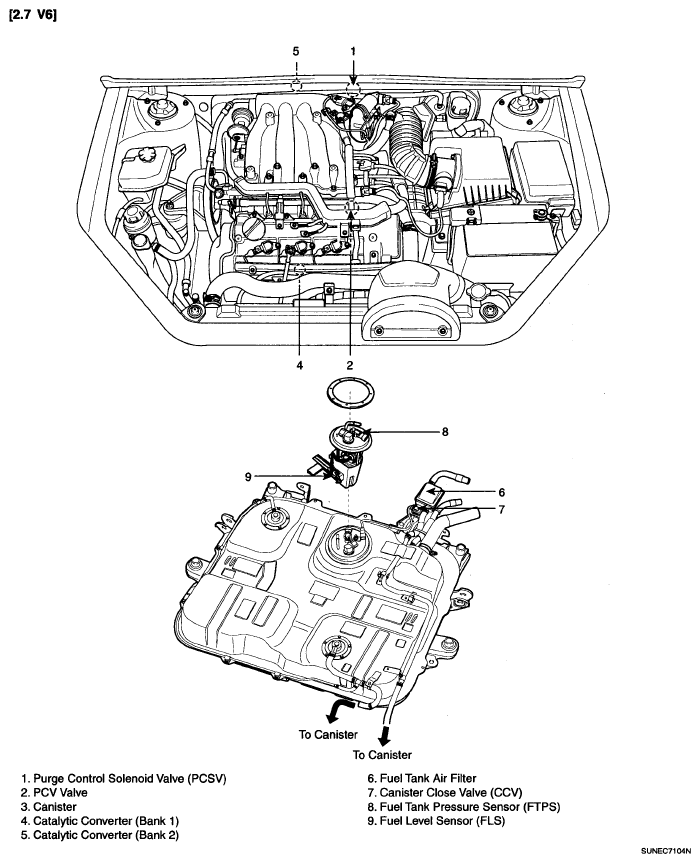

Fig 3: Identifying Emissions Control Component Locations - 2.7 V6 (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Identifying Emissions Control Component Locations - 2.7 V6 (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
