Components (3)

WARNING: This page is about a different variant/trim than selected.

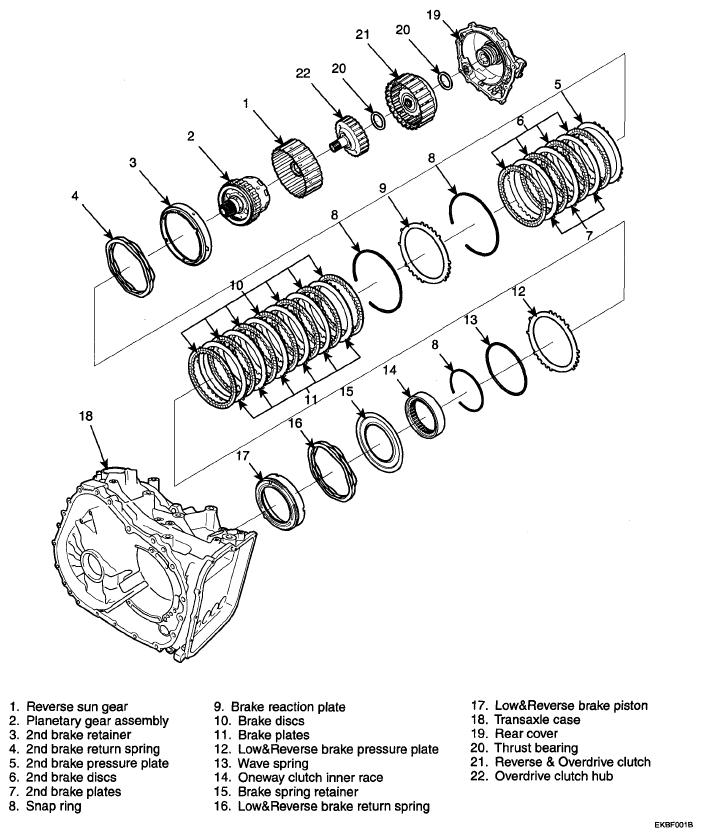

Fig 1: Exploded View Of Automatic Transaxle Components (3 Of 3)
G05186671Courtesy of KIA MOTORS AMERICA, INC.
