Automatic Transaxle: Installation

WARNING: This page is about a different variant/trim than selected.

Lifting up the transaxle slowly with a jack, tighten the under mounting bolts.
TORQUE
1. 80~100 Nm (8~10 kgf.m, 57.9~72.3 lb-ft)
2. 40~47 Nm (4.0~4.7 kgf.m, 29.0~34.1 lb-ft)

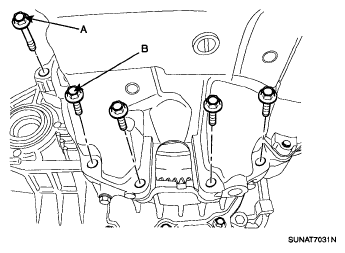

  Fig 1: Locating Under Mounting Bolts
  Courtesy of KIA MOTORS AMERICA, INC.

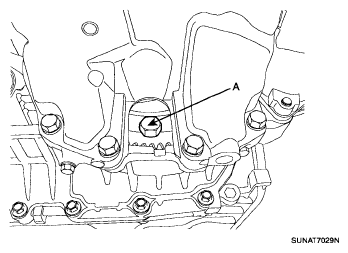

Install the drive plate bolts (A).
TORQUE :

46~53 Nm (4.6~5.3 kgf.m, 33.3~38.3 lb-ft)

NOTE: Install the bolts (A-6ea) rotating the crankshaft clockwise.

Fig 2: Locating Drive Plate Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install the starter motor mounting bolt and nut. (refer to STARTING SYSTEM (G6EA - GSL 2.7) )

Fig 3: Locating Starter Motor Mounting Bolt And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the front roll support (A) from the transaxle.

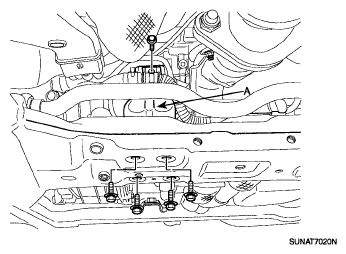

Fig 4: Locating Front Roll Support
Courtesy of KIA MOTORS AMERICA, INC.

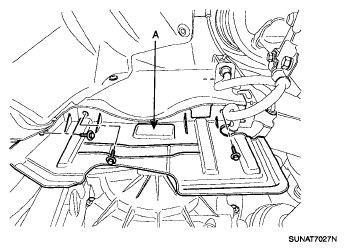

Install the left side cover (A).

Fig 5: Locating Left Side Cover
Courtesy of KIA MOTORS AMERICA, INC.

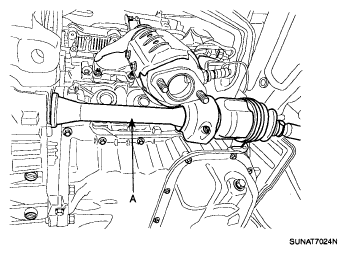

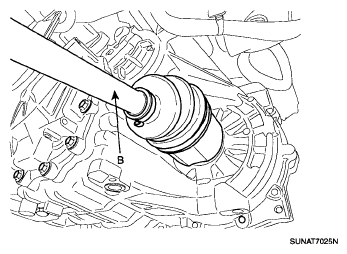

Install drive shaft (A, B) from transaxle. (refer to DRIVESHAFT AND AXLE ).

Fig 6: Locating Drive Shaft
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Locating Drive Shaft
Courtesy of KIA MOTORS AMERICA, INC.
Install the inner shaft bracket bolts (A), (refer to DRIVESHAFT AND AXLE )
TORQUE :

50~65 Nm (5.0~6.5 kgf.m, 36.2~47.0 lb-ft)

Fig 8: Locating Inner Shaft Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.

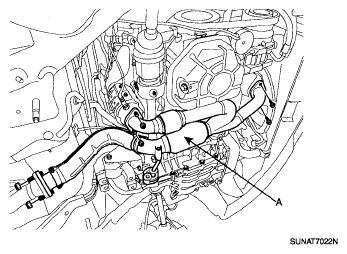

Install the front muffler assembly (A), (refer to INTAKE AND EXHAUST SYSTEM )
TORQUE :

40~60 Nm (4~6 kgf.m, 28.9~43.4 lb-ft)

Fig 9: Locating Front Muffler Assembly
Courtesy of KIA MOTORS AMERICA, INC.

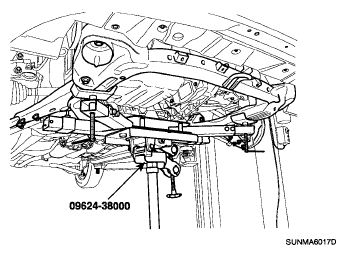

Supporting the sub frame with a jack and the special tool (09624-38000), install the mounting bolts, (refer to SUSPENSION SYSTEM (EXCEPT TPMS) )

Fig 10: Identifying Special Tool (09624-38000)
Courtesy of KIA MOTORS AMERICA, INC.
Install the muffler hanger rubber (A).

Fig 11: Locating Muffler Hanger Rubber
Courtesy of KIA MOTORS AMERICA, INC.

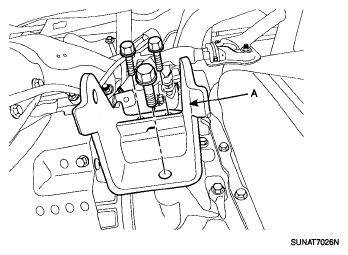

Install the front (B) rear (A) roll stopper mounting bolts.
TORQUE

[A] : 50~65 Nm (5.0~6.5 kgf.m, 36.2~47.0 lb-ft)

[B] : 50~65 Nm (5.0~6.5 kgf.m, 36.2~47.0 lb-ft)

Fig 12: Locating Front Roll Stopper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Locating Rear Roll Stopper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the power steering column joint bolt (A), (refer to STEERING SYSTEM )
Install the stabilizer link mounting nut. (refer to SUSPENSION SYSTEM (EXCEPT TPMS) )
Install the lower arm ball joint assembly mounting bolts and tie rod end ball joint, (refer to SUSPENSION SYSTEM (EXCEPT TPMS) )
Connect the power steering return hose (A) by tightening the clamp (B).

Fig 14: Locating Return Tube Clamp
Courtesy of KIA MOTORS AMERICA, INC.

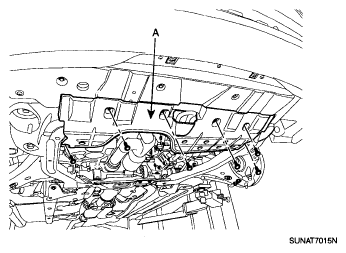

Install the front wheels and Lifting up the vehicle, remove the under cover (A).

Fig 15: Locating Cover
Courtesy of KIA MOTORS AMERICA, INC.
Connect the power steering pressure bolt (A), (refer to STEERING SYSTEM )
TORQUE :

55~65 Nm (5.5~6.5 kgf.m, 36~47 lb-ft)

Fig 16: Locating Power Steering Pressure Tube
Courtesy of KIA MOTORS AMERICA, INC.

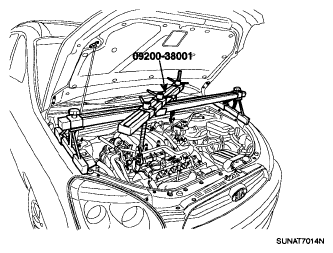

Remove the special tool (09200-38001).

Fig 17: Identifying SST (09200-38001)
Courtesy of KIA MOTORS AMERICA, INC.

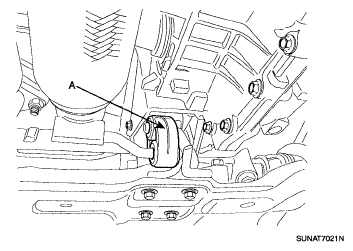

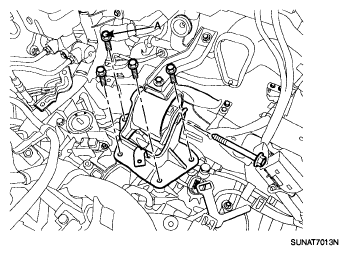

Install the transaxle insulator mounting bolt (A).
TORQUE :

60~80 Nm (6.0~8.0 kgf.m, 43.4~57.9 lb-ft)

Fig 18: Locating Transaxle Insulator Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

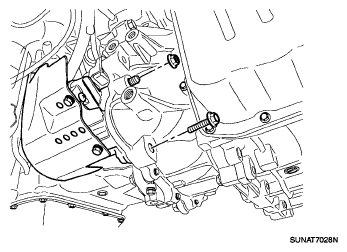

Install the transaxle upper mounting bolts (A).
TORQUE

65~85 Nm (6.5~8.5 kgf.m, 47.0~61.5 lb-ft)

Fig 19: Locating Transaxle Upper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

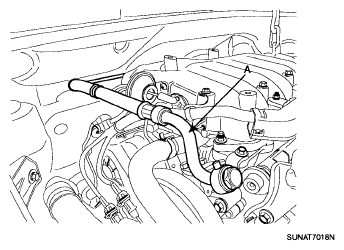

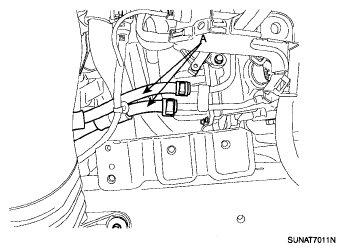

Install the transaxle oil cooler hoses (A) releasing the clamps.

Fig 20: Locating Transaxle Oil Cooler Hoses
Courtesy of KIA MOTORS AMERICA, INC.

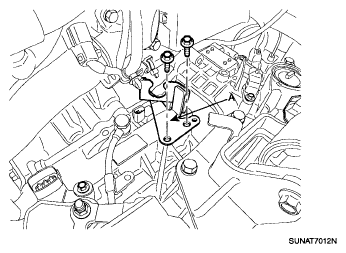

Install the control cable bracket (A).

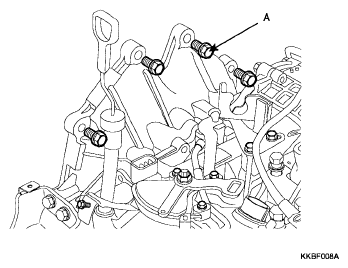

Fig 21: Locating Control Cable Bracket
Courtesy of KIA MOTORS AMERICA, INC.

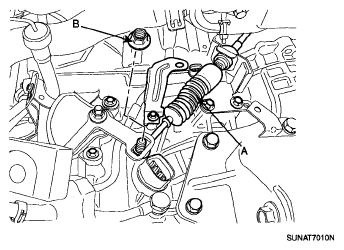

Install the control cable assembly (C) by installing the nut (A) and clip (B).

Fig 22: Locating Control Cable And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the vehicle speed sensor connector (B) and output speed sensor connector (A).

Fig 23: Locating Output Shaft Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

Fig 24: Locating Vehicle Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

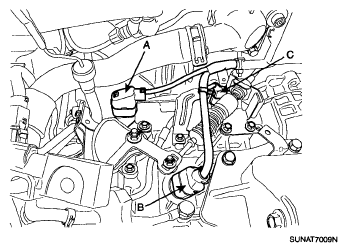

Install the inhibitor switch connector (A), solenoid valve connector (B) and the input shaft speed sensor connector (C).

Fig 25: Locating Inhibitor Switch Connector, Solenoid Valve Connector And Input Shaft Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

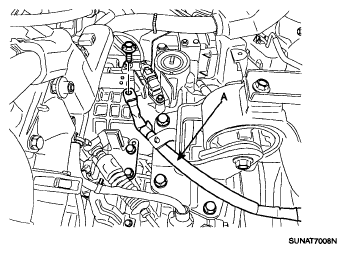

Install the ground earth wire (A).

Fig 26: Locating Ground Wire
Courtesy of KIA MOTORS AMERICA, INC.

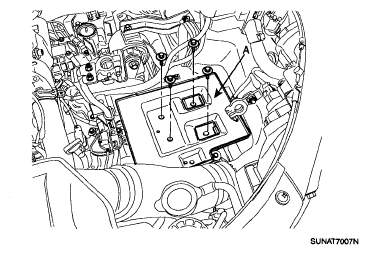

Install the battery tray (A).

Fig 27: Locating Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.
Install the air cleaner under body (A).

Fig 28: Locating Air Cleaner Under Body
Courtesy of KIA MOTORS AMERICA, INC.

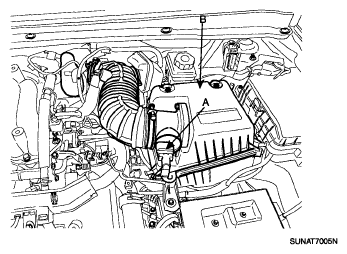

Install the AFS connector (A) and air cleaner upper body (B).

Fig 29: Locating AFS Connector And Air Cleaner Upper Body
Courtesy of KIA MOTORS AMERICA, INC.

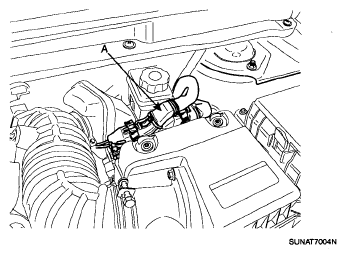

Install the PCM connectors (A).

Fig 30: Locating PCM Connectors
Courtesy of KIA MOTORS AMERICA, INC.

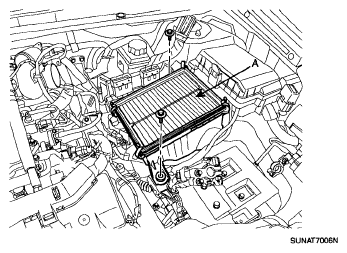

Install the air upper body (A).

Fig 31: Locating Air Upper Body
Courtesy of KIA MOTORS AMERICA, INC.

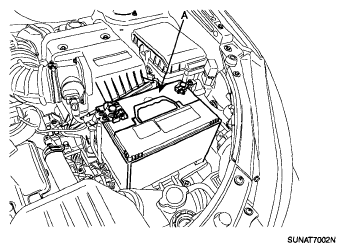

Install the battery (A).

Fig 32: Locating Battery
Courtesy of KIA MOTORS AMERICA, INC.

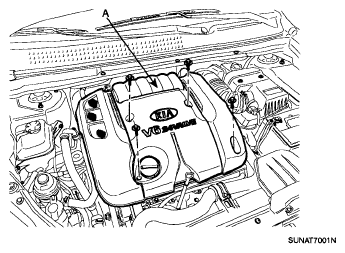

Install the engine cover (A).

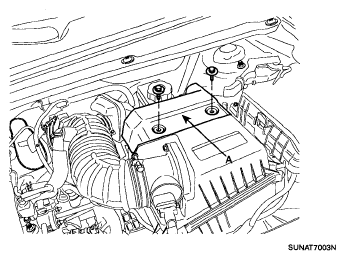

Fig 33: Locating Engine Cover
Courtesy of KIA MOTORS AMERICA, INC.
Refill the automatic transaxle fluid, (refer to 'SERVICE ADJUSTMENT PROCEDURE ')
Refill the power steering fluid and bleed the air. (refer to STEERING SYSTEM )
