Component Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF".
Remove "TRANSAXLE RANGE SWITCH".
Measure continuity (resistance) between each terminals of the sensor.
Specification : Approx. 0 Ω

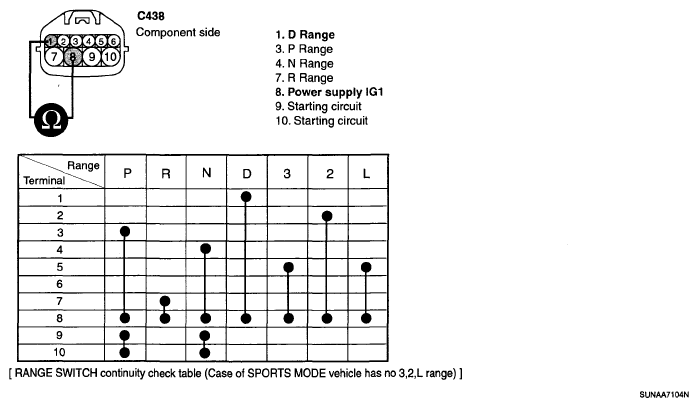

Fig 1: Measuring Continuity Between Each Terminals Of Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Is resistance within specifications?
YES
- Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace "TRANSAXLE RANGE SWITCH" as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
