Power Steering Hoses: Components

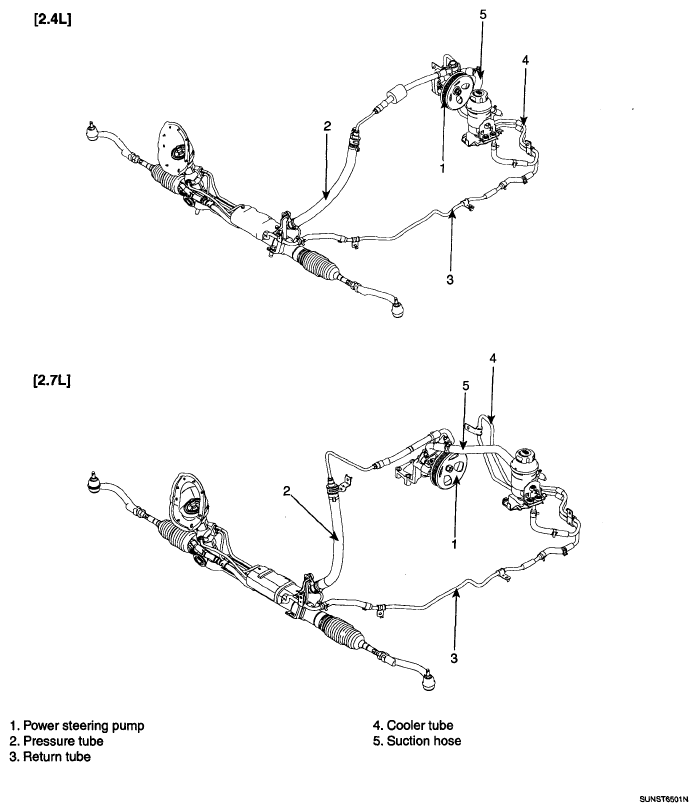

Fig 1: Identifying Power Steering Hoses Components

G05187131

Courtesy of KIA MOTORS AMERICA, INC.
